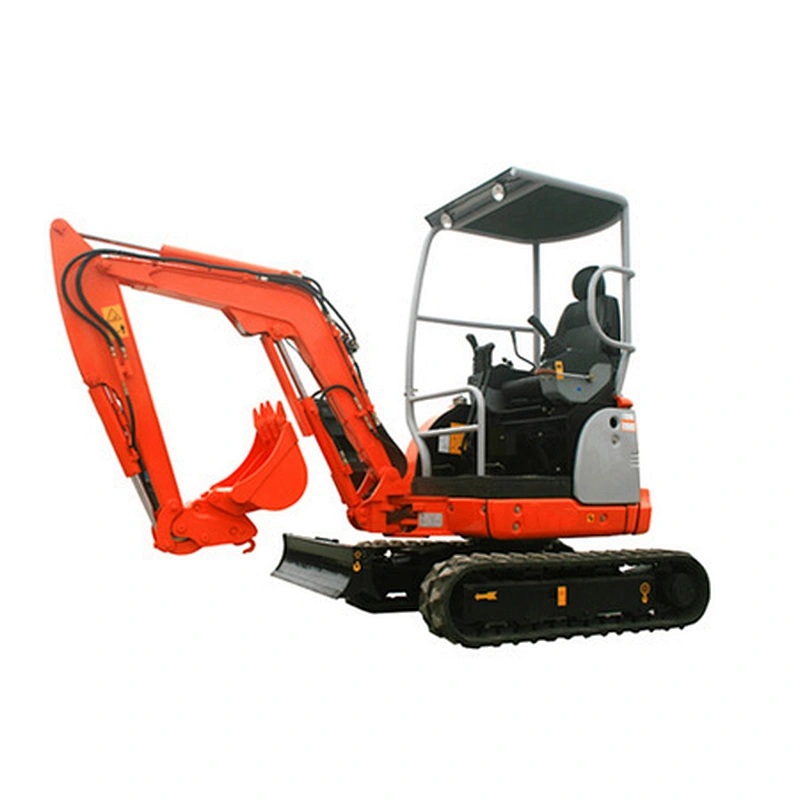

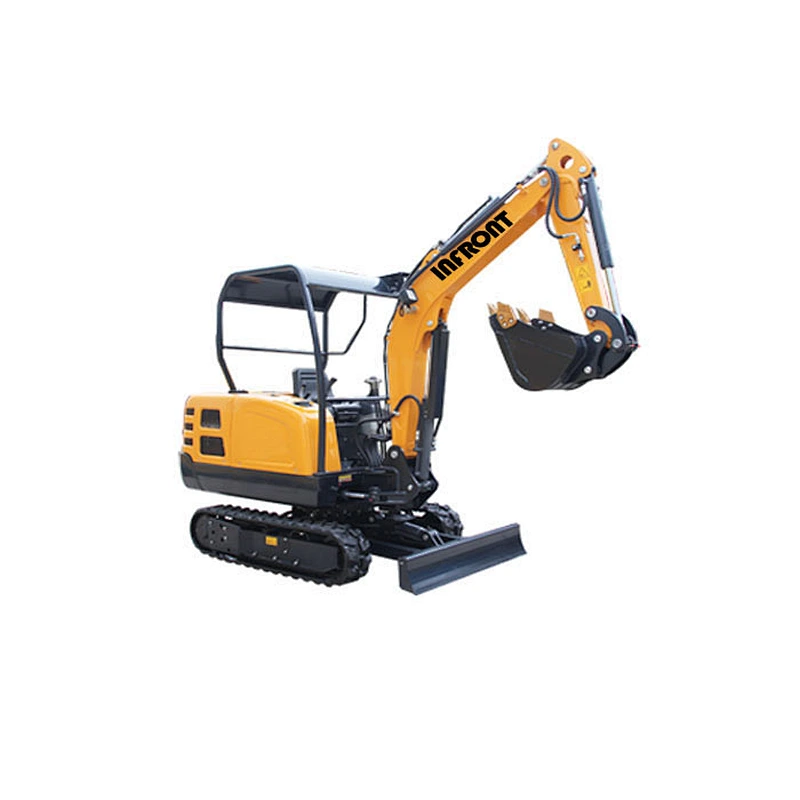

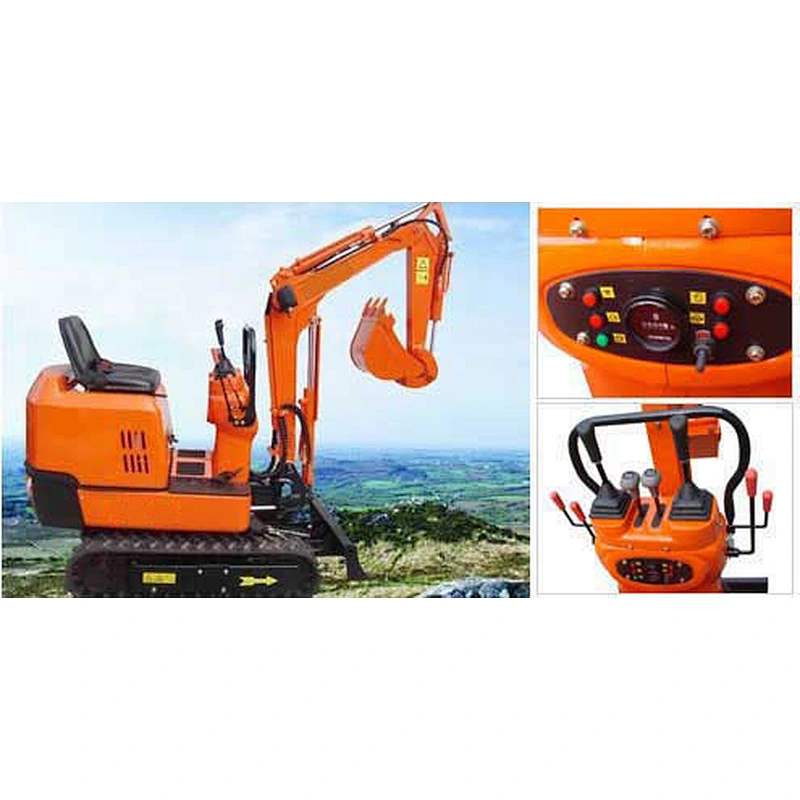

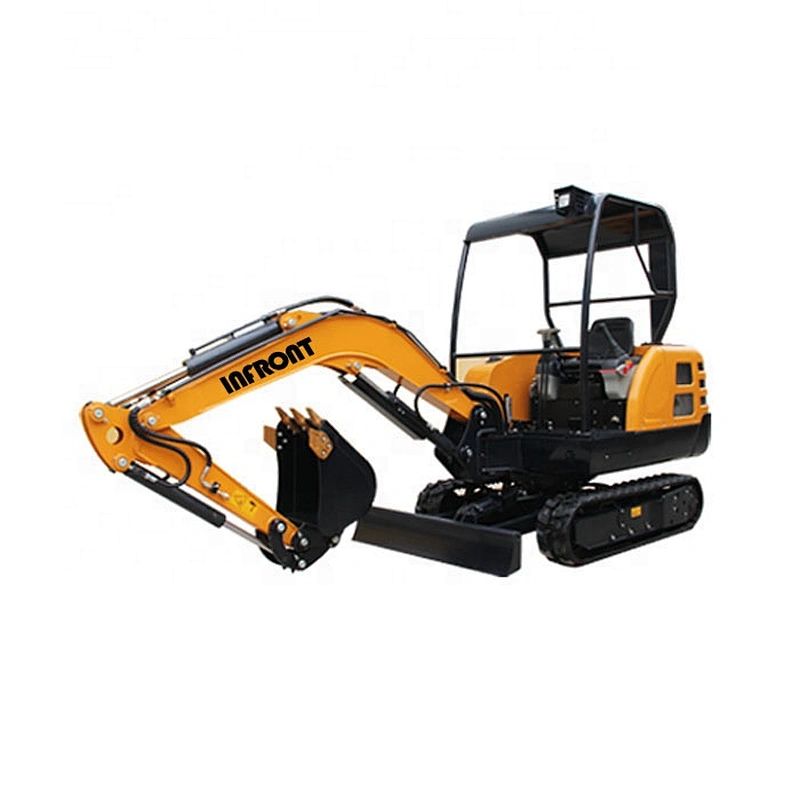

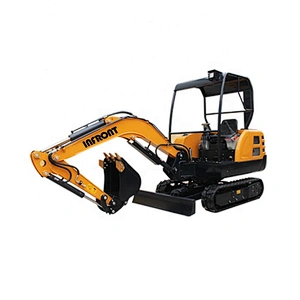

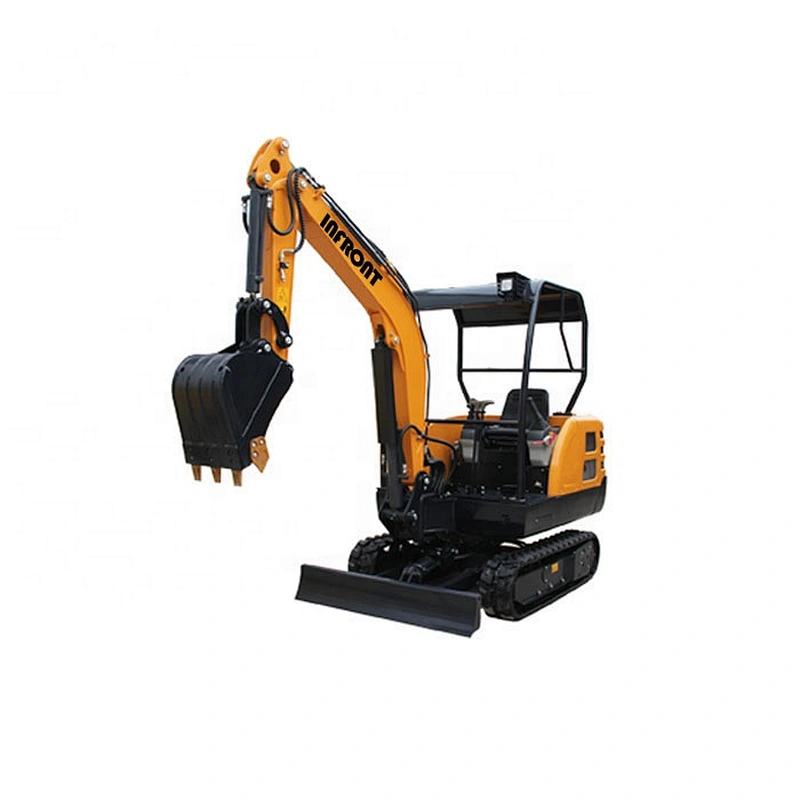

CE certificate mini excavator 1.8ton YFE18

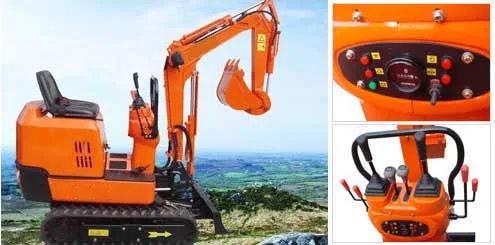

| Model | YFE20 |
| operating weight | 1880kg |
| bucket capacity | 0.048 cubic metres |
| working device form | backhoe |
| Engine | |
| model | Yanmar |
| Type | 3TNV70 |
| Displacement | 0.0854L |
| Rated power | 10/2200KW/RPM |
| Maximum Torque | 51.9/1600 N.M/r/min |
| Speed /digging force | |
| Max .Travel speed | 3.4/1.9 km/h |
| swing speed | 10.5 rpm |
| Max. Gradeability | 30(58%) |
| Bucket digging force | 13.5KN |
| Bucket arm digging force | 10.1KN |
| Theoretical Maximum traction | 17.5KN |
| Track | |
| Ground specific pressure | 32.8Kpa |
| Track material | steel track |
| type of track tension device | butter oil cylinder |
| Hydraulic and liquid capacity | |
| dump type | position pump |
| working pressure | 22Mpa |
| flow rate | 2*17+14(L/MIN) |
| hydraulic oil tank capacity | 15.3L |
| engine oil capacity | 2.8(1.3)L |
| fuel tank capacity | 19L |
| Main dimensions | |
| wheelbase | 1230 |
| total length of track | 1590 |
| platform ground clearance | 473 |
| platform back turning radius | 790 |
| chassis width | 990(1240) |
| track width | 230 |
| track height | 360 |
| transporation length | 3400 |
| height(from seat to ground) | 1660 |
| Total height | 2380 |
| Boom swing -left | 390 |
| boom swing -right | 510 |
| Operating range | |
| Max.Digging radius on ground | 3610mm |
| Max.Digging radius | 3700mm |
| Max.digging depth | 2150mm |
| Max.digging height | 3275mm |
| Max.dumping height | 2310mm |
| Max.vertical digging depth | 1740mm |
| Min rotation radius | 1580mm |
| Max.Upgrade height of dozer blade | 275mm |
| Max.digging depth of dozer blade | 180mm |
The important bearing parts of the chassis, the upper frame and the working device are all welded by Q345 steel plate. And the strength is safe and reliable. Rubber crawler,can reduce vibration without damage to the road.
Based on domestic and abroad e-commerce platform, Jining Infront Construction Machinery Co.,Ltd is a professional international trading company, which is entitled to import and export rights and specialized in cross-border online sales of large-scale construction machine and related spare parts.
Our main products are Bulldozer, Excavator, Compactor, Motor grader, Wheel loader, Road machine and related spare parts, which meet domestic trade of more than thirty provinces, cities and municipalities, and also exported to Europe, Africa, America, Russia, etc.
We promised to provide you with the first-class items and service, to build the first-class team, to create first-class values and to establish first-class enterprise image. We believe that we are able to be the main force of construction machinery field by the effort of all of our staff. Let’s seize the chance for a better future!
1. OEM order accepted: Customer’s brand, Color etc.
2. Spare parts in stock.
3. Factory visiting, third party inspection etc.
4. We will reply for your inquiry in 24 hours.
5. Purchasing agent for related machines.
6.Quality guranteen,technical support .
7.Delivery in time .
8. Producting according to drawlings
