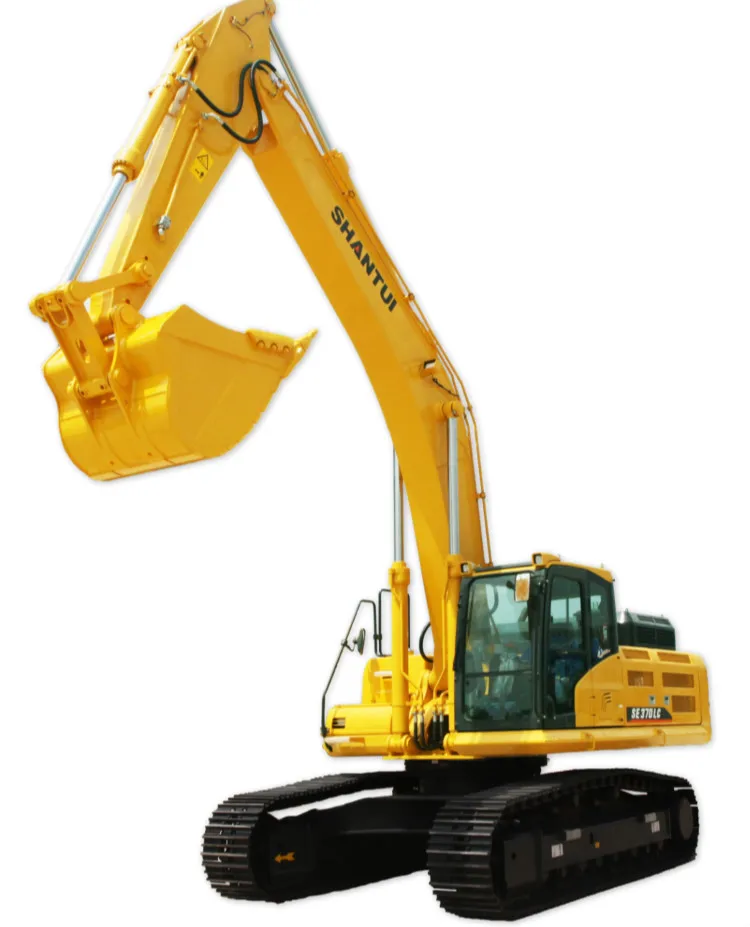

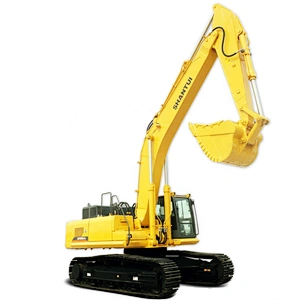

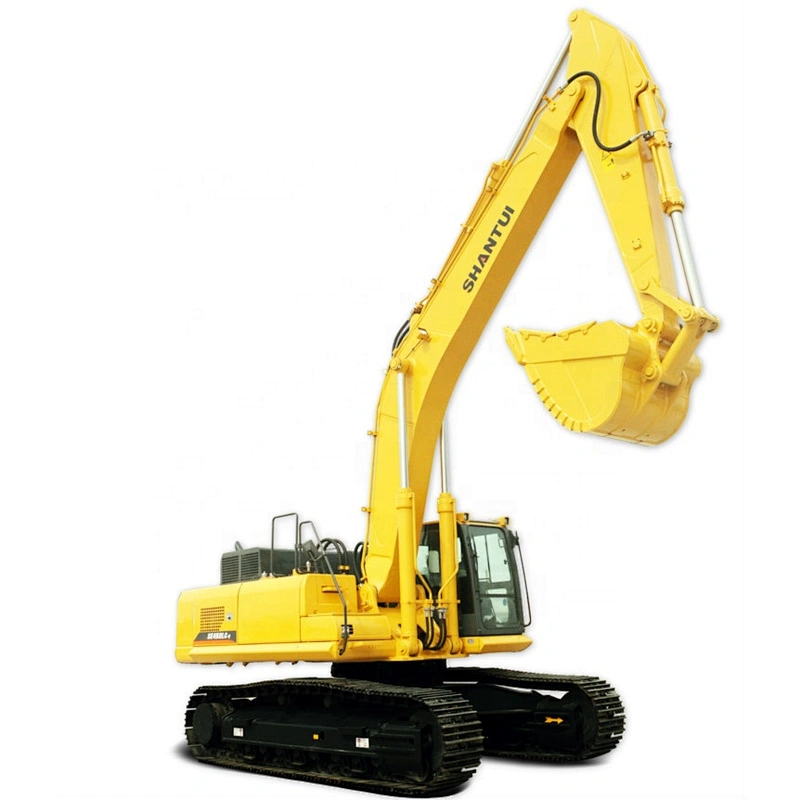

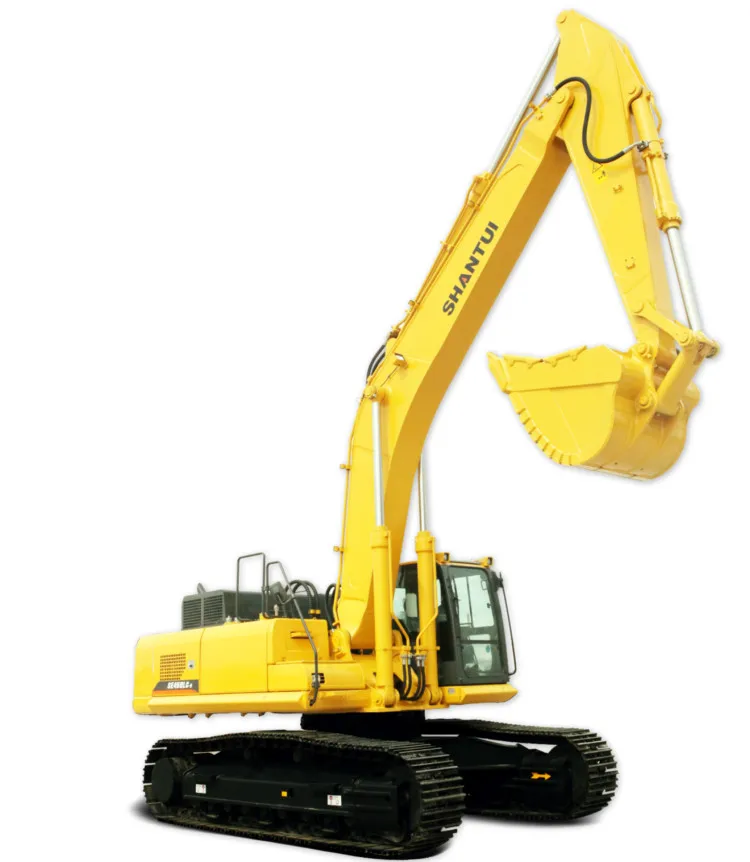

SHANTUI Heavy crawler excavator SE470LC-9 for sale
| Size | |
| Length (mm) | 12110 |
| Grounding length (during transportation)(mm) | 6660 |
| Total height (to the top of the boom)(mm) | 3745 |
| width (mm) | 3360 |
| Total height (to the top of the cab)(mm) | 3340 |
| Counterweight ground clearance(mm) | 1395 |
| Minimum ground clearance(mm) | 570 |
| Tail radius of gyration(mm) | 3720 |
| Track(mm) | 4290 |
| track length (mm) | 5315 |
| gauge(mm) | 2760 |
| track width (mm) | 3360 |
| track shoe width (mm) | 600 |
| Hood height(mm) | 2895 |
| Turntable width(mm) | 3190 |
| Swivel center to rear end distance(mm) | 3675 |
| Working width | |
| Maximum digging height(mm) | 10785 |
| Maximum unloading height(mm) | 7600 |
| Maximum digging depth(mm) | 7815 |
| Maximum vertical digging depth(mm) | 6295 |
| Maximum excavation depth when excavating 8 feet of horizontal plane(mm) | 7665 |
| Maximum digging distance(mm) | 12040 |
| Maximum digging distance of the ground plane(mm) | 11830 |
| Working device minimum radius of gyration(mm) | 4840 |
| Engine | |
| Model | QSM11 |
| Type | Inline 6 cylinder |
| Number of cylinders X cylinder diameter X stroke (mm) | 6×125×147 |
| Displacement (L) | 10.8 |
| Rated power (kw/rpm) | 250/2000 |
| hydraulic system | |
| Hydraulic pump form | Double plunger pump + gear pump |
| Rated working flow(L/min) | 360×2+27 |
| Walking circuit pressure(Mpa) | 34.3 |
| Swing circuit pressure(Mpa) | 28.4 |
| Control loop pressure(Mpa) | 3.9 |
| Bucket | |
| Bucket capacity(m3) | 2.1 |
| Bucket width(mm) | 1748 |
| Slewing system | |
| Swing speed(r/min) | 10 |
| Brake type | Pressure release mechanical brake |
| Digging force | |
| Stick digging force (KN) | 242 |
| Bucket digging force (KN) | 288.5 |
| Operating weight and ground pressure | |
| Operating weight (Kg) | 46800 |
| Grounding pressure(KPa) | 81.9 |
| Walking system | |
| Travel motor | |
| Track shoe numbers | 49×2 |
| walking speed (km/h) | 3.3/5.6 |
| Traction(KN) | 364 |
| Gradeability | 70%(35°) |
| track roller numbers | 9×2 |
| top roller numbers | 2×2 |
| Oil capacity | |
| Fuel tank capacity(L) | 550 |
| cooling system (L) | 34 |
| Engine oil quantity(L) | 35 |
| Hydraulic tank / system capacity(L) | 366 |
Based on domestic and abroad e-commerce platform, Jining Infront Construction Machinery Co.,Ltd is a professional international trading company, which is entitled to import and export rights and specialized in cross-border online sales of large-scale construction machine and related spare parts.
Our main products are Bulldozer, Excavator, Compactor, Motor grader, Wheel loader, Road machine and related spare parts, which meet domestic trade of more than thirty provinces, cities and municipalities, and also exported to Europe, Africa, America, Russia, etc.
We promised to provide you with the first-class items and service, to build the first-class team, to create first-class values and to establish first-class enterprise image. We believe that we are able to be the main force of construction machinery field by the effort of all of our staff. Let’s seize the chance for a better future!
Name:Janice
Mobile phone: + 86 15053767299
Wechat&skype&whatsapp:+ 86 15053767299
QQ :2159861078
Welcome your inquiry soon! We can offer our best service!
