4T2233 cutting edge for bulldozer bucket
Our grader blade datas for your reference.
| Part Number | Width | Thickness | Length | Bolt size | Holes |
| 4T2233 | 203 | 25 | 2133 | 3/4" | 15 |
| 4T2242 | 203 | 25 | 2133 | 5/8" | 15 |
| 4T2244 | 203 | 25 | 1828 | 5/8" | 13 |
| 5B5564 | 152 | 16 | 1828 | 5/8" | 8 |
| 5D9553 | 152 | 16 | 1828 | 5/8" | 13 |
| 5D9554 | 152 | 16 | 2133 | 5/8" | 15 |
| 5D9556 | 152 | 20 | 1828 | 5/8" | 13 |
| 5D9557 | 152 | 20 | 2133 | 5/8" | 15 |
| 5D9558 | 203 | 20 | 1828 | 5/8" | 13 |
| 5D9559 | 203 | 20 | 2133 | 5/8" | 15 |
| 5D9561 | 203 | 16 | 2133 | 5/8" | 15 |
| 5D9562 | 203 | 16 | 1828 | 5/8" | 13 |
| 7D1158 | 203 | 16 | 2133 | 3/4" | 15 |
| 7D1577 | 203 | 20 | 2133 | 3/4" | 15 |

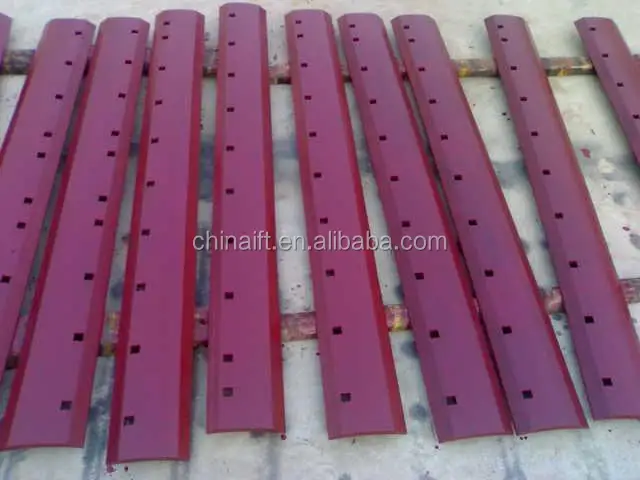

our products grader blade
our facilities to guarantee the precision of size, hardness
5D9554 bucket cutting edge,grader blades cutting edge,5D9554 5D9559 7D1158 4T2242 4T2244 motor grader blade cutting edge
5D9554 bucket cutting edge,grader blades cutting edge,5D9554 5D9559 7D1158 4T2242 4T2244 motor grader blade cutting edge
5D9554 bucket cutting edge,grader blades cutting edge,5D9554 5D9559 7D1158 4T2242 4T2244 motor grader blade cutting edge
