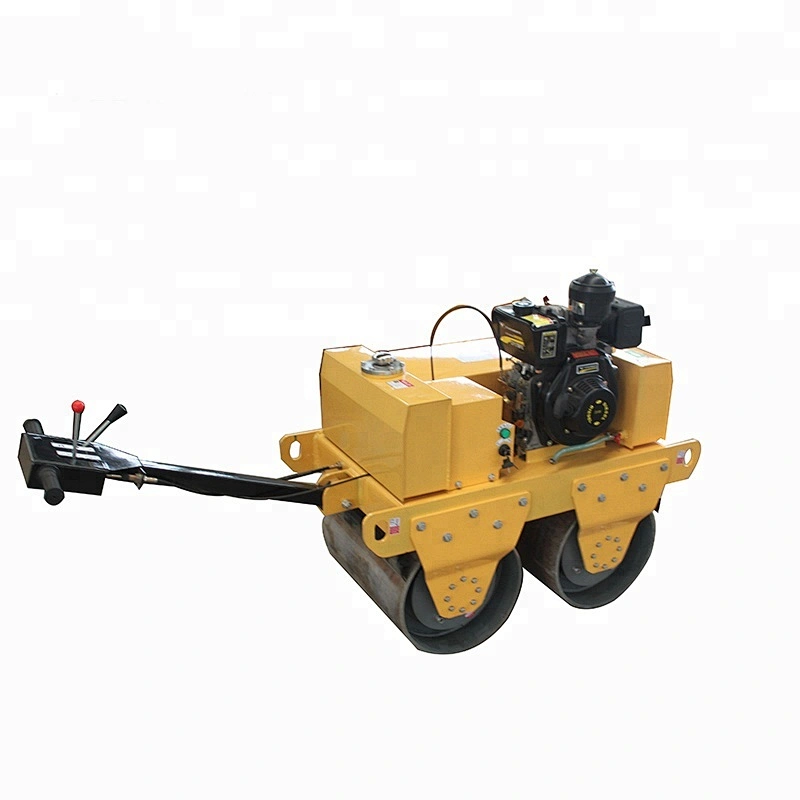

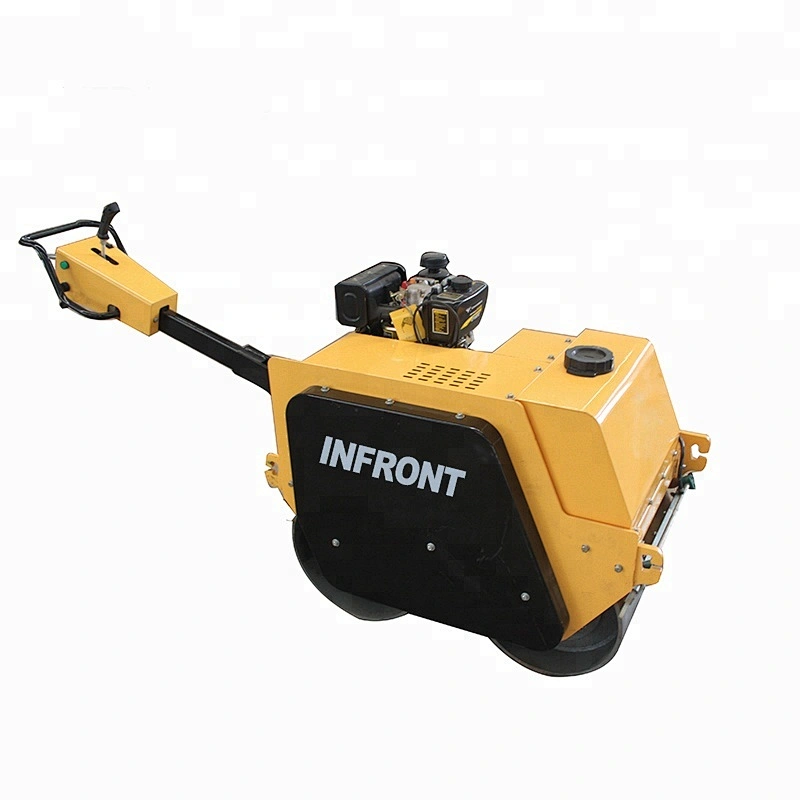

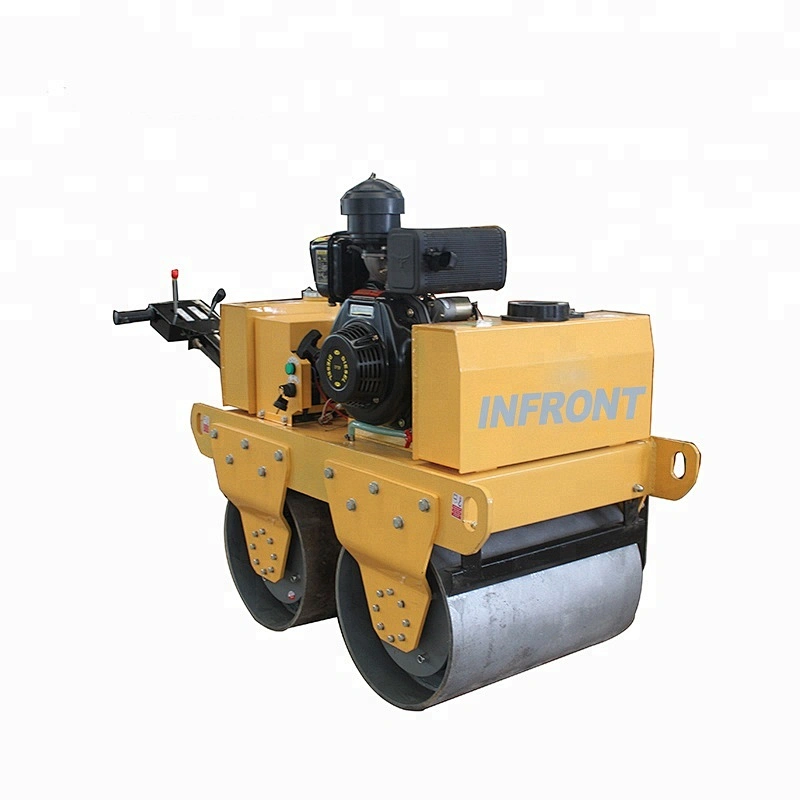

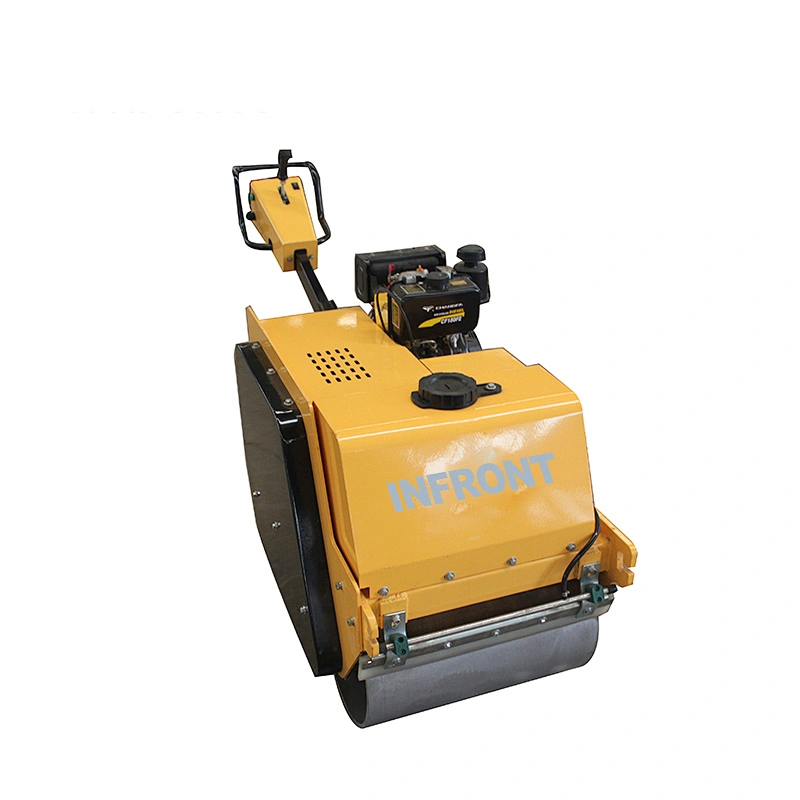

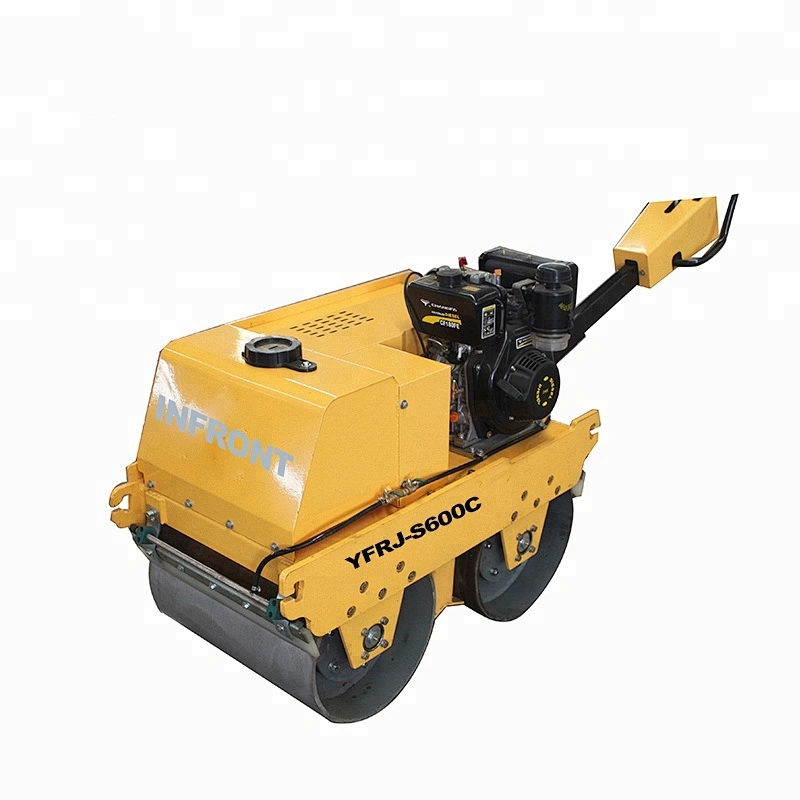

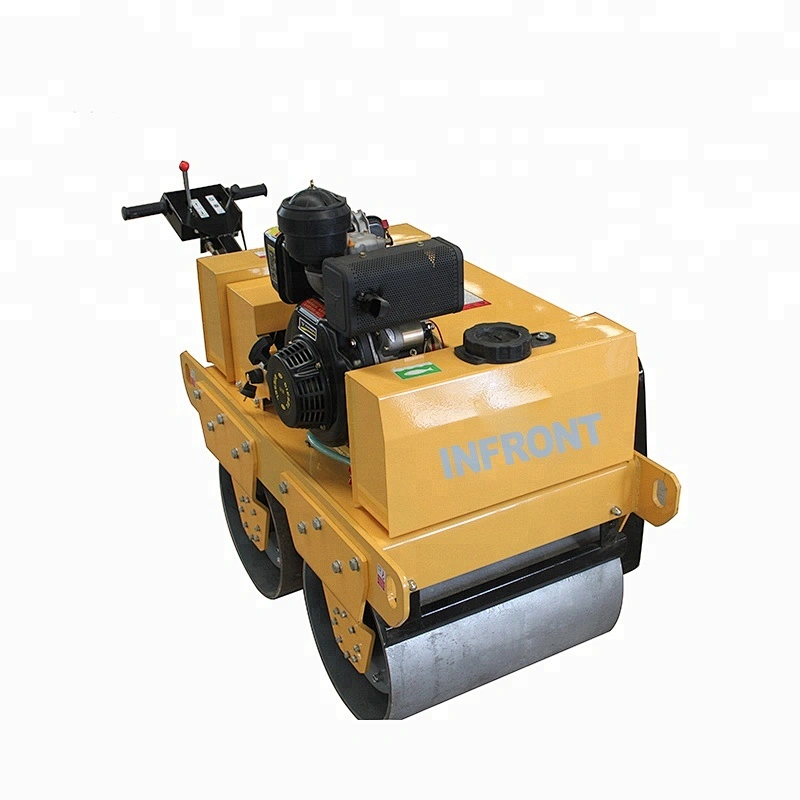

Low price 550kg double drum mini hydraulic vibrating road roller compacter YFRJ-S600C
1).Operating radius is small, can work in a small area;
2).Use HONDA Petrol engine or famous diesel engine ,superior performance, easy to start;
3).Adopt international famous brand SAUER hydraulic drive unit ,walking forward and backward,
reversing convenient.
4).Adopt international famous NSK bearing ,MITSUBOSHI triangle belt ,ensure the excellent performance of the machine.
5).Infinitely variable speed ,double drums vibrating ,the gradeability stays the same when oil temperature is higher.
Technical Parameter
Model | YFRJ-S600C | ||
Walk Speed | 0-4km/h | Water Tank | 50L |
Gradeability | 30% | Hydraulic Oil Tank | 0.3L |
Drive Type | Hydrostatic Drive | Engine Model | CF178F/CF186F |
Vibration Control | Automatic Clutch | Power | 6.0HP/9.0HP |
Static Linear Load | 40N/cm | Steel Wheel Size | φ425*600mm*2 |
Nominal Amplitude | 0.7mm | Package Size | 1450*900*1920mm |
Vibration Frequency | 70HZ | Net Weight | 600kg |
Exciting Force | 20KN | Starting Mode | Hand and Electric |
