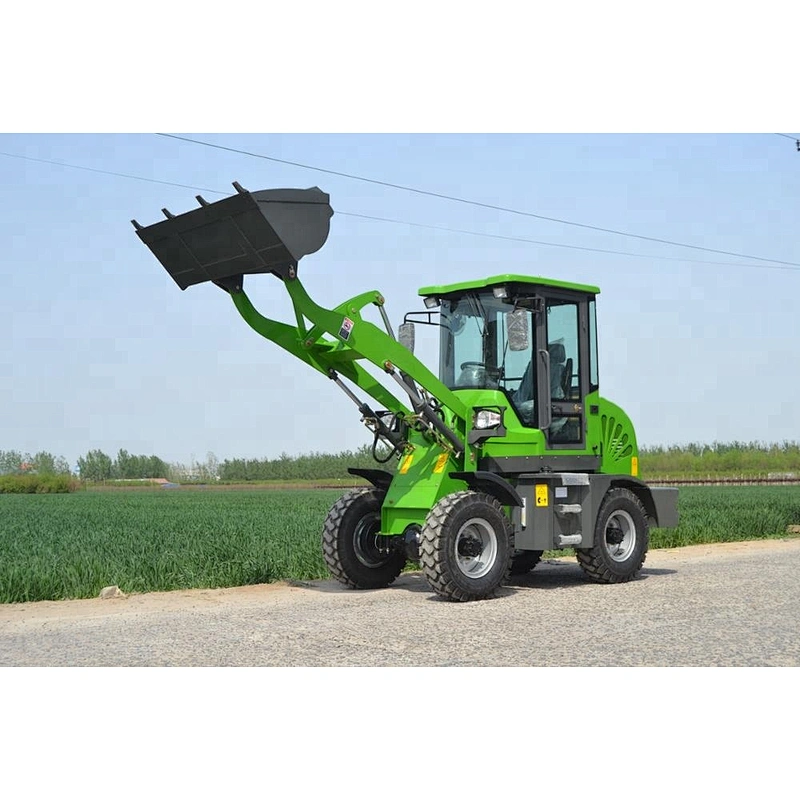

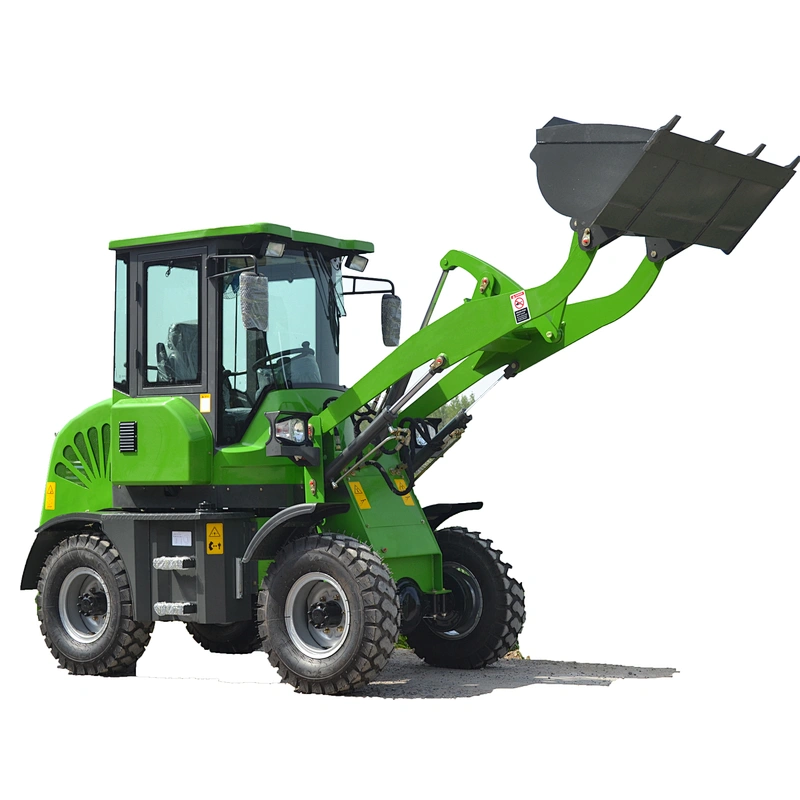

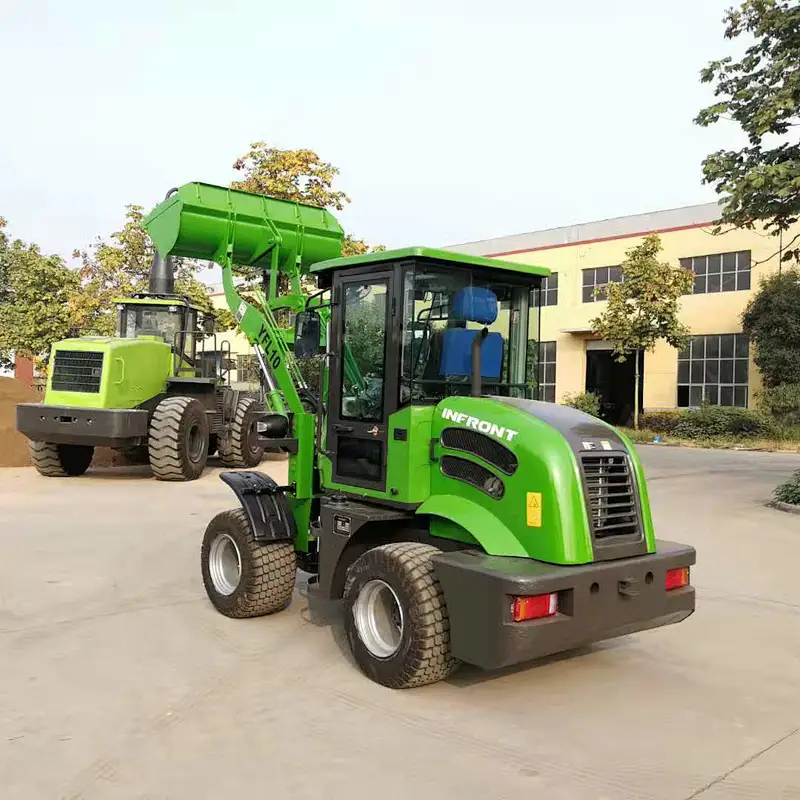

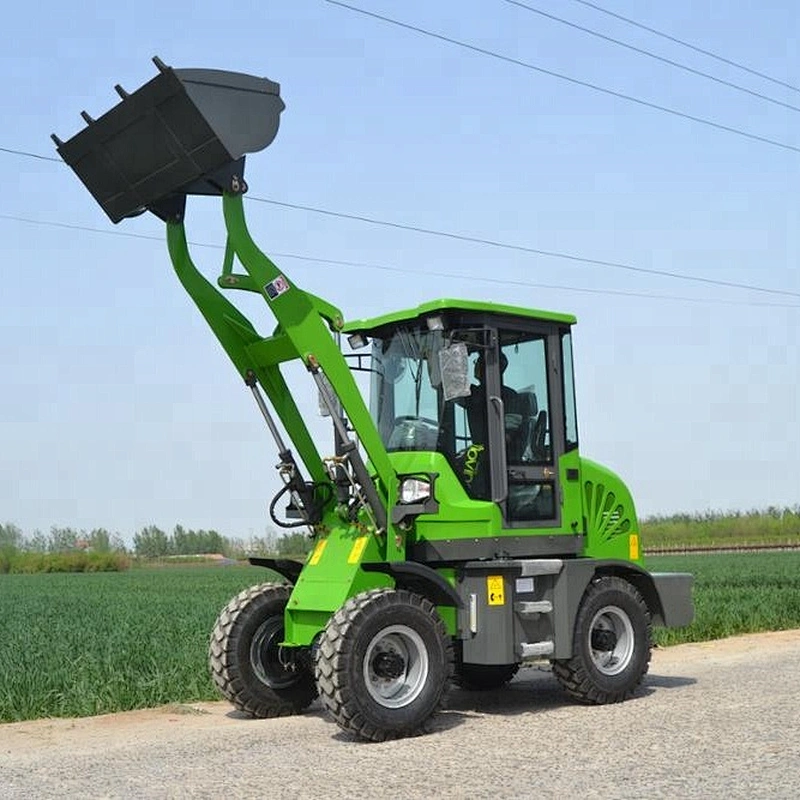

Wheel loader with joystick quick hitch YFL10
Welcome to Jining Infront Construction Machinery Co.,Ltd!
MAIN PERFORMANCE PARAMETRES
Specification | Operate weight(kg) | 2600-2800 |
Overalldimensions(L×W×H)mm | 4700×1500×2500mm(2280mm) | |
Rated bucket capacity(m³) | 0.5 | |
Rated load(kg) | 1000 | |
Dump height (mm) | 2200 | |
Dump distance(mm) | 700 | |
Wheelbase(mm) | 2100 | |
Thread(mm) | 1405 | |
Total time | 11s | |
Engine | Model | YUNNEI YN25 |
Optional model | FAW XICHAI 37KW or CHANGCHAI 38KW or XINCHAI C490BPG Tier 3 engine or KOHLER/CUMMINS/PERKINS/YANMAR CE/EPA Tier 3/4 engine | |
Type | Direct injection, horizontal, water-cooled, four stroke, four cylinder | |
Rated power(KW) | 37KW | |
Steering system | Type | Articulated hydraulic steering |
Max. turning angle | 30°±1 | |
Min turning radius(mm) | 3400 | |
Tire | Standard tire | 1000-16 |
Optional tire | 10-16.5 or 12-16.5 or 31*15.5-15 tubelesstire | |
Transmission | Type | Mechanical transmission(gearbox) Hydraulic transmission( torque converter+gearbox) |
Package | 1 unit with cab packedinto 20GP; 2 units without cab packed into 20GP; 4 unitswith cab packed into 40HQ. | |
Warranty | 12 months after delivery or 1500 work hours(whichever comes first) | |
Delivery time | 15-25 days after 30% down payment. | |
Related Products
YFL08 YFL18
YF26 YFL30
Product Details
1. This vehicle belongs to wheel type four-wheel drive full hydraulic tipper transport vehicle. The loader and Tipper are perfectly integrated, and the conversion is convenient.
2. One pedal controls travel and one handle controls operation.
3. Four wheel drive allows you to adapt to more terrain. Such as: mud, sand, and snow.
4. Domestic electric starting diesel engine
5. Full hydraulic power assisted priority steering, more flexible steering, mechanical leveling makes your operation convenient, and can realize high and low unloading.
6. The front and rear frames are connected by floating hinge; the road has strong passing force.
7. High strength chassis design, which can carry more load
8. Full hydraulic control is more comfortable for machine operation
9. It has excellent bearing capacity, 2100mm super high discharge height, and can quickly install a variety of accessories to achieve various operations. improve work efficiency.
A loader serves several purposes, with a quick hitch system,the mini wheel loader can change various attachments for more functions quickly and easily. Attachments: backhoe, digger, sweeper, dump bucket, tiller, lawn mower, angle blade, breaker, 4 in 1 bucket, snow blower, leveler, mixer, lawn aerator, trencher, grapple, auger, stone bucket, standard bucket, trailer system, and so on.
Packing:The excavator are in nude, 20GP, 40HQ standard exporting package, or according to the
buyer's request.
Delivery:Within7 days upon receipt of down payment. Special models about 30days.
Millen Su
Skype:jkmachinery808 QQ:3313793974
Mobile/Whats up: +0086 138 6371 3908
WeChat:86 138 6371 3908
Email:sales19@ chinaift.com
Contact me if you are interested, hope we could be your long-term and quality supplier,thank you !
