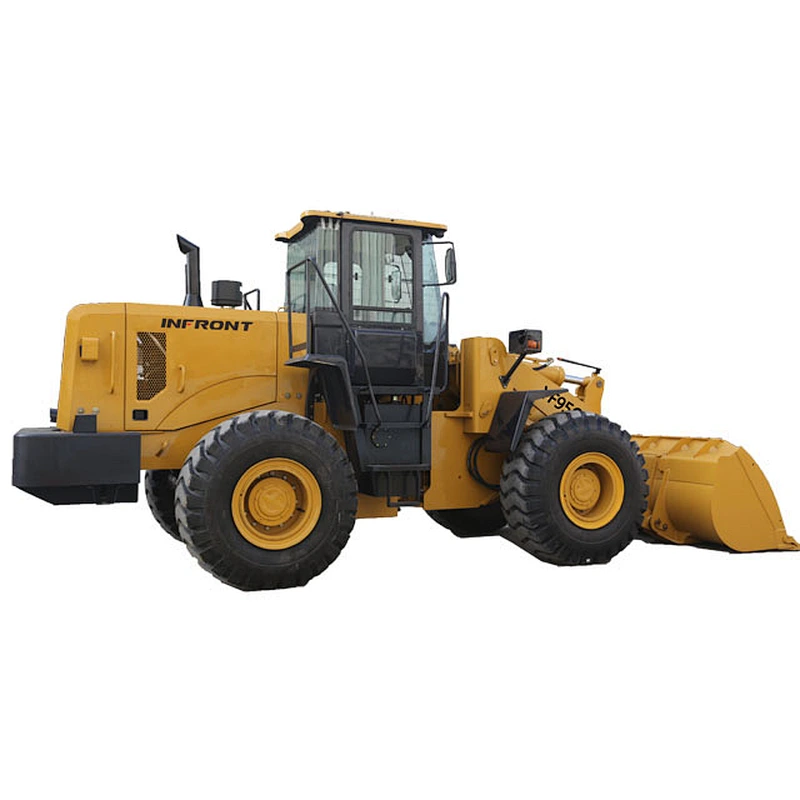

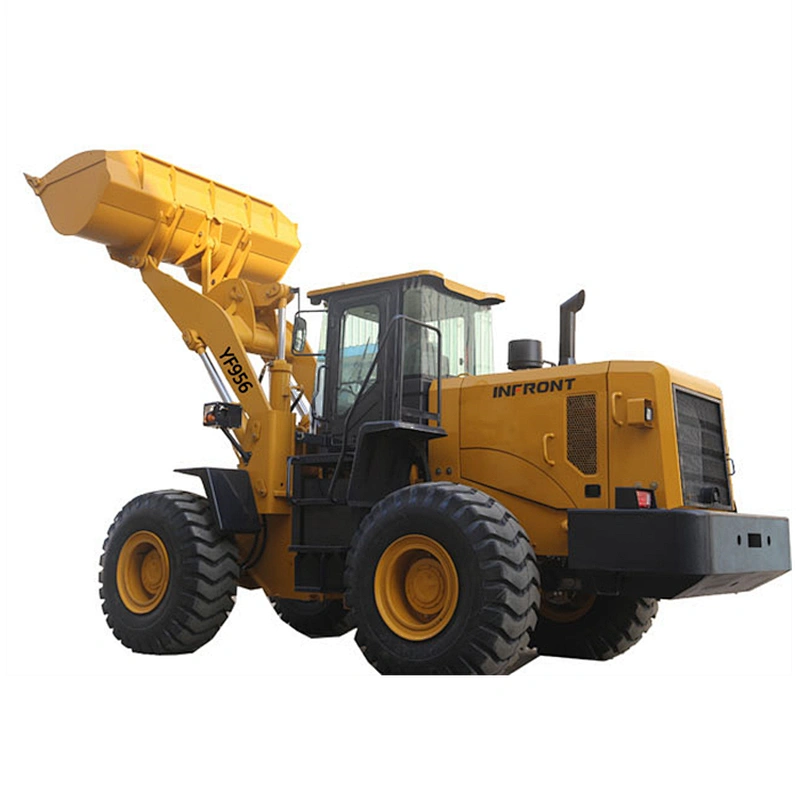

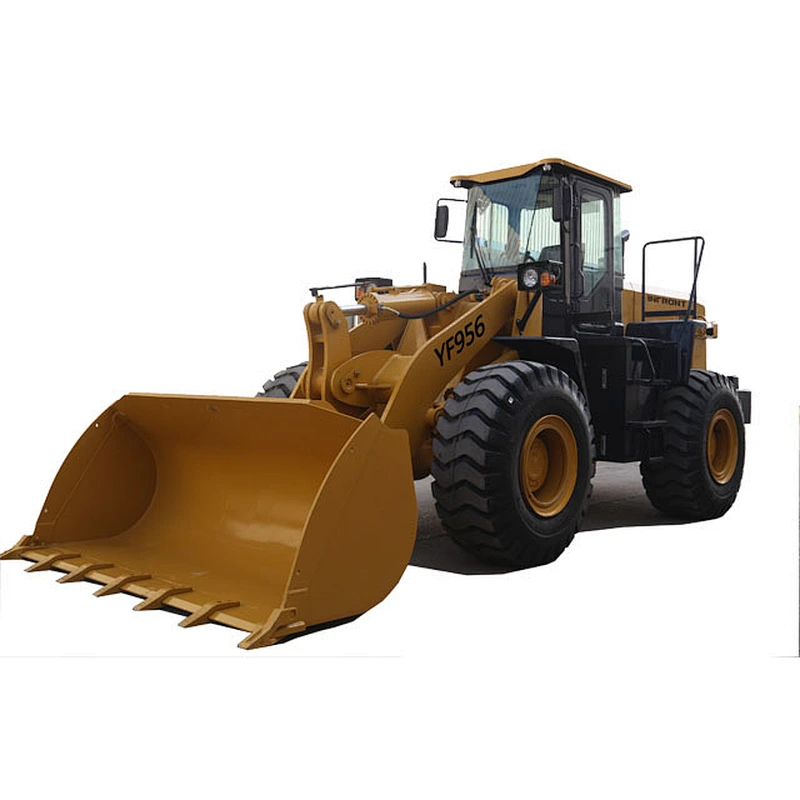

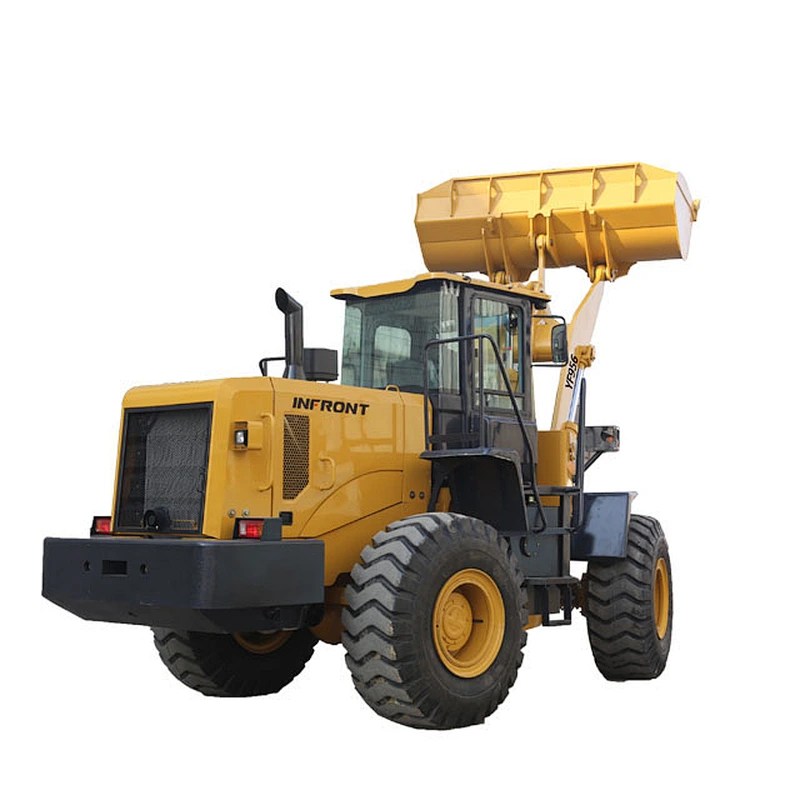

YF956S 5Ton Shovel wheel loader for sale
Welcome to Jining Infront Construction Machinery Co.,Ltd!
MAIN PERFORMANCE PARAMETRES
WHEEL LOADER | UNIT | YF956 |
MAIN SPECIFICATION | ||
Rated load | kg | 5,000 |
Operating weight | kg | 16,500 |
Bucket capacity | m³ | 2.7-4.5 |
Wheel base | mm | 3,200 |
Overall dimension | mm | 8,085x2,963x3,463 |
Turning radius | mm | 6,732 |
OPERATION SPECIFICATION | ||
Max. Breakout force | kN | 177 |
Max. Tractive force | kN | 168 |
TRANSMISSION | ||
Transmission type |
| Countershaft Powershift |
Gear shift |
| F4/R4 |
Model | YJ375 | |
Max. Travel speed | Km/h | 39 |
ENGINE | ||
Model |
| WD10G220E22 |
Rated power | kW | 162 |
Rated power | r/min | 2200 |
Displacement | L | 9.7 |
WORKING HYDRAULIC SYSTEM | ||
Boom lifting time | s | 5.1 |
Total cycling time | s | 9.3 |
Working hydraulic pressure | MPa | 17 |
BRAKE | ||
Service brake |
| Air over oil caliper |
Parking brake |
| Internal shoe |
STEERING SYSTEM | ||
Steering hydraulic pressure | MPa | 16 |
Steering angle |
| 38±1° |
TYRE | ||
Model |
| 23.5-25 |
Related Products
YFL08 YFL18
YF26 YFL30
Product Details
1. This vehicle belongs to wheel type four-wheel drive full hydraulic tipper transport vehicle. The loader and Tipper are perfectly integrated, and the conversion is convenient.
2. One pedal controls travel and one handle controls operation.
3. Four wheel drive allows you to adapt to more terrain. Such as: mud, sand, and snow.
4. Domestic electric starting diesel engine
5. Full hydraulic power assisted priority steering, more flexible steering, mechanical leveling makes your operation convenient, and can realize high and low unloading.
6. The front and rear frames are connected by floating hinge; the road has strong passing force.
7. High strength chassis design, which can carry more load
8. Full hydraulic control is more comfortable for machine operation
9. It has excellent bearing capacity, 2100mm super high discharge height, and can quickly install a variety of accessories to achieve various operations. improve work efficiency.
A loader serves several purposes, with a quick hitch system,the mini wheel loader can change various attachments for more functions quickly and easily. Attachments: backhoe, digger, sweeper, dump bucket, tiller, lawn mower, angle blade, breaker, 4 in 1 bucket, snow blower, leveler, mixer, lawn aerator, trencher, grapple, auger, stone bucket, standard bucket, trailer system, and so on.
Packing:The excavator are in nude, 20GP, 40HQ standard exporting package, or according to the
buyer's request.
Delivery:Within7 days upon receipt of down payment. Special models about 30days.
