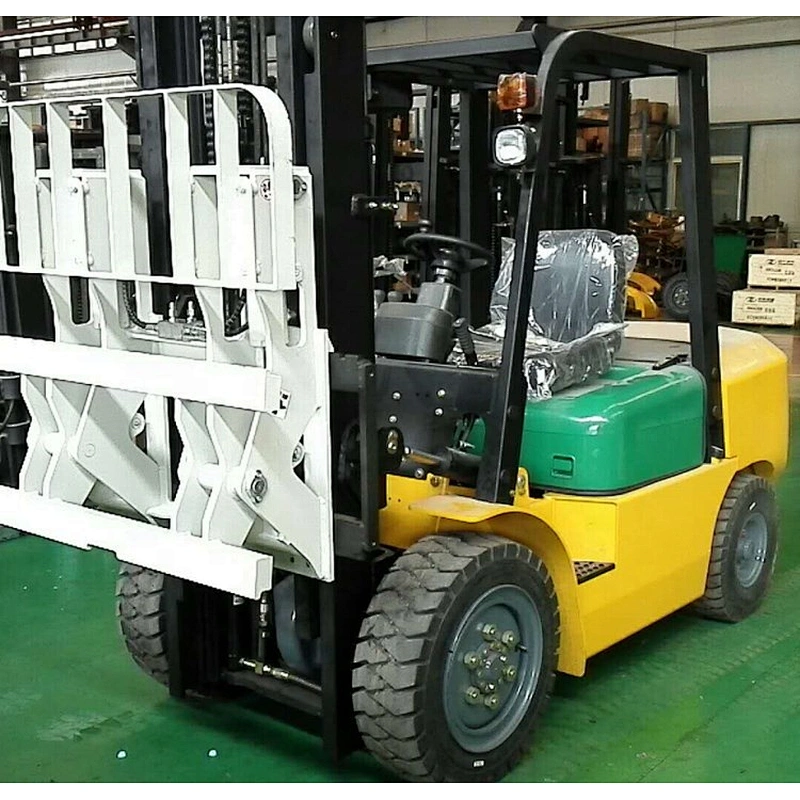

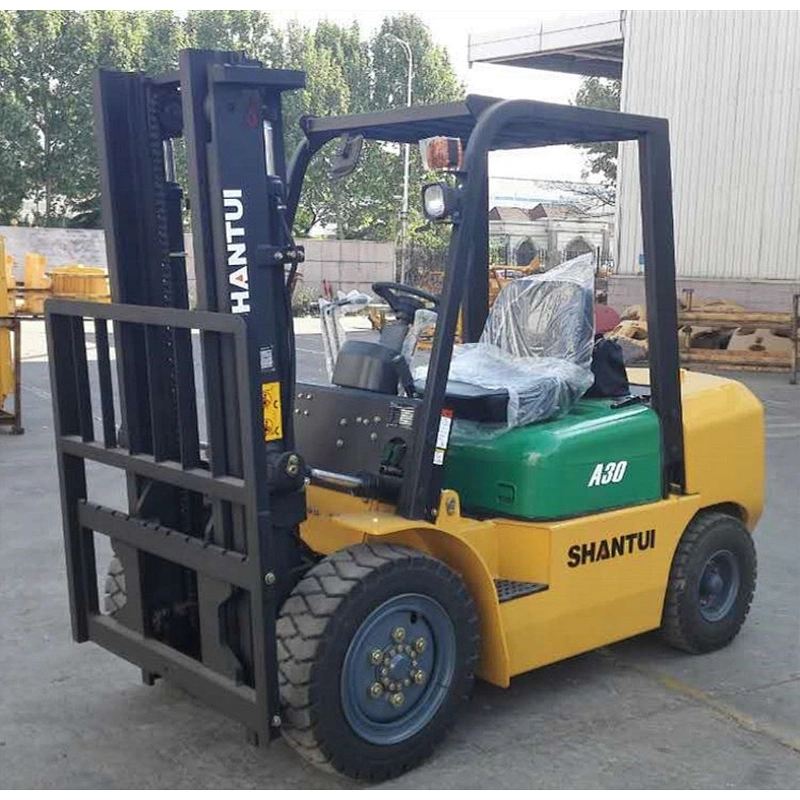

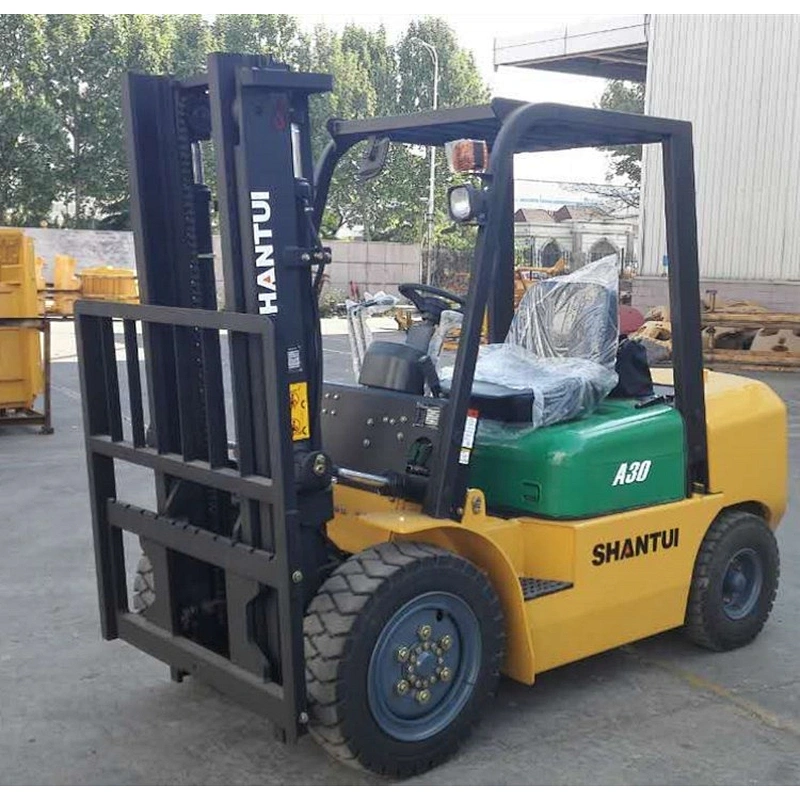

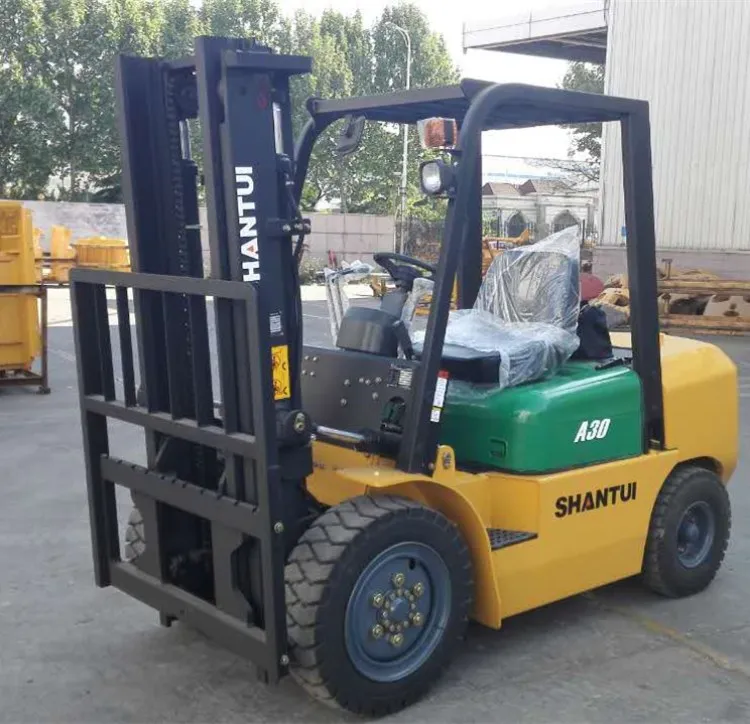

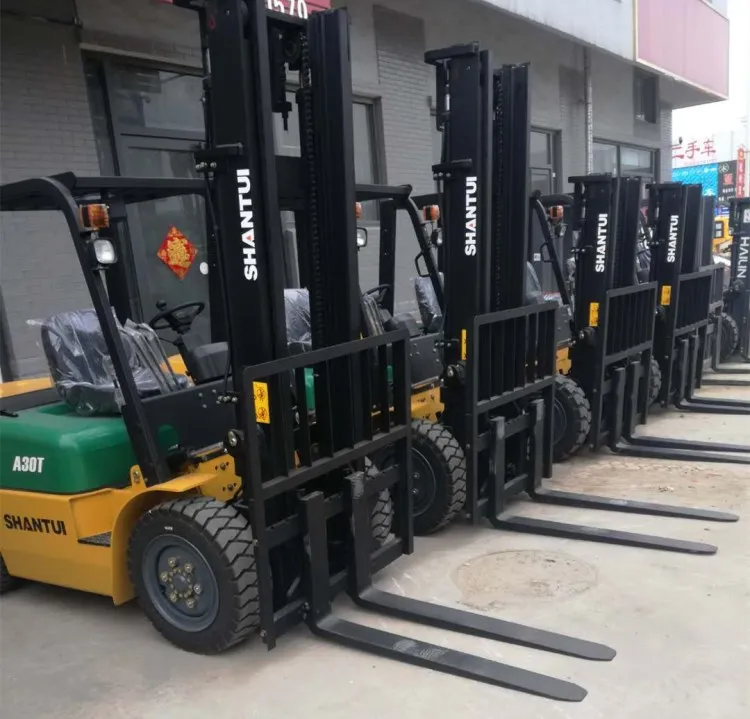

3 tons rated loader Shantui brand diesel forklift SF30 best quality
Product features
Ergonomic design by Shantui engineers includes built-in tilt cylinder and adjustable shock-absorbing seat to reduce
driver fatigue. Also the wide-field mast provides excellent operational vision.
Shock-absorbing Shantui design adopts floating overhead guard and shock-absorbing steering axle to reduce
vibration by 30% to enhance the driver operation comfort.
High quality transmission components match the hydraulic system effectively. The forklift is more efficient and
energy-saving as a result.
Shantui uses a reliable electronically monitored combination dashboard with LCD and waterproof inserted structure
wiring system to enhance safety and reliability.
| The spec of the forklift | ||
| Model | A-SF30 | |
| General | load capacity | 3000kg |
| Load centre | 500mm | |
| Power type | Diesel | |
| Size | Lift height | 3000mm |
| Free lift height | 150mm | |
| Fork size | 1070*125*45mm | |
| Mast tilte angle | 6 | |
| For overhang | 483mm | |
| overall dimensions | Length to face of fork | 3873mm |
| overall width | 1226mm | |
| overall height fork lowered | 2120mm | |
| overall height fork raised | 4212mm | |
| overall guard height | 2140mm | |
| Performance | Travel speed(Full/no load)Hydraulic | 19/20km/h |
| Lift speed with speed | 470mm/sec | |
| Max gradeablity | 20% | |
| selfweight | 4160kg | |
| under wheel | Front Tires | 28*9-15-12PR |
| Rear tires | 6.50-10NHS | |
| Front Tread | 1000mm | |
| Front Tread | 980mm | |
| wheelbase | 1770L | |
| Engine type | Engine model | 4D27G31-029 |
| Engine power | 36.8/2500(kw/rpm) | |
| Rated torque | 156/1700(N.M/rpm) | |
| No.of cylinder | 4 | |
| Bore*stroke | 90*105mm | |
| Displacment | 2.67L | |
