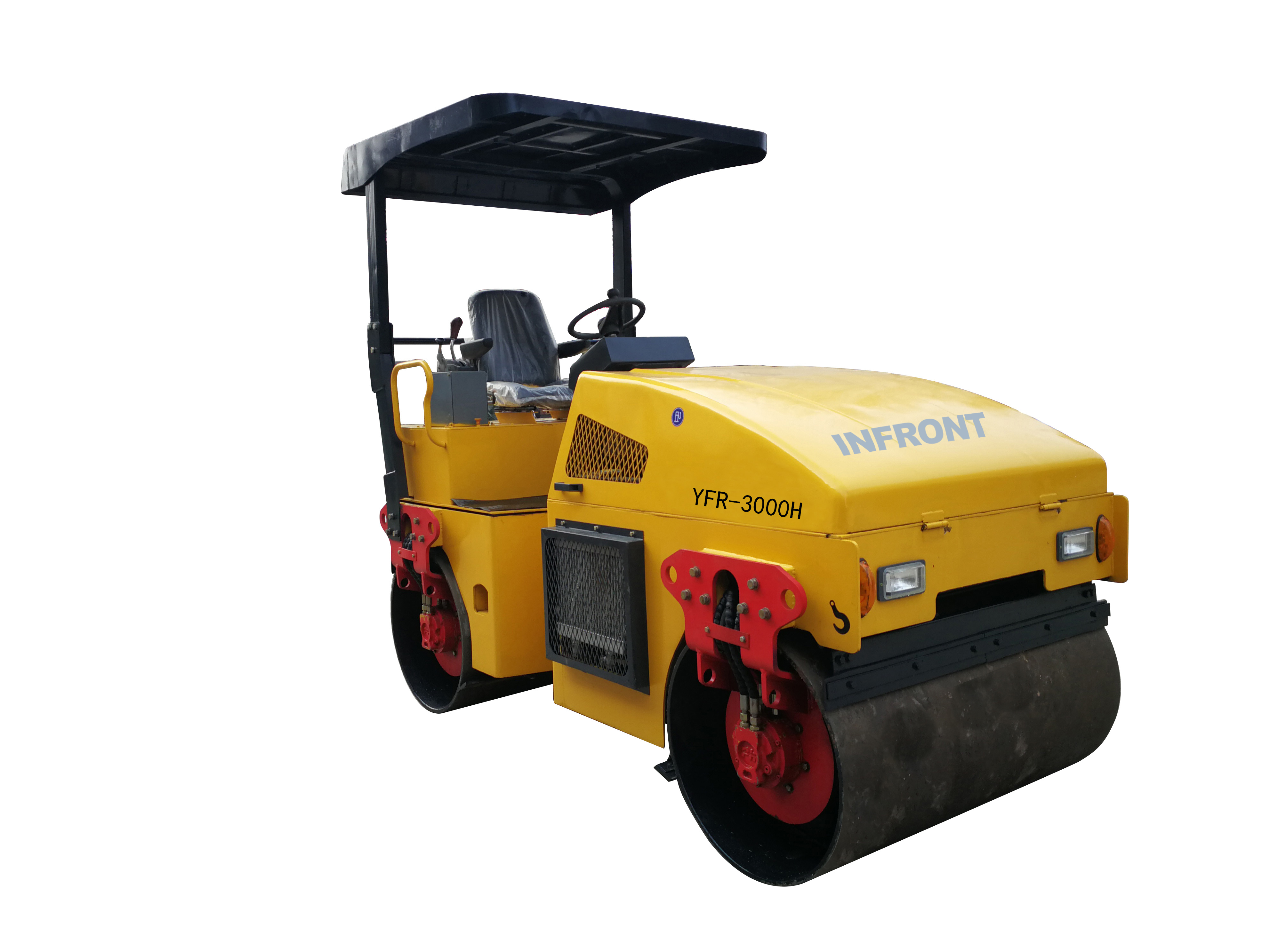

Product overview
This product is upmarket double drum fully hydraulic vibratory roller. Applied to mending maintaining various roads, expressway shoulder, side work, parking area, playground and garden lawn. Especially suitable for compact wayside, pipeline channel and drainage trench and municipal works.
MAIN FEATURES
1. Fully hydraulic double wheels drive, hydraulic double wheels vibrating and hydraulicsteering, with reliable performance. Adopt imported danfoss variable displacement piston pump, best performance.
2.Front and rear wheels have scraping and water spray unit, advanced sprinkler pump system can achieve intermittent, greatly expanded mechanical proper working condition.
3. Adopt ZN390Q diesel engine, convenient for using and maintenance.
4. Compact integral structure, small volume, capable working for multipleworks.
MAIN PERFORMANCE PARAMETRES
MODEL | | YFR-3000H |
Operating Mass | kg | 3000 |
Exciting Force | kn | 30*2 |
Vibration Frequency | Hz | 50 |
Drum Width/Diameter | mm | 1250/700 |
Static Linear Load | N/cm | 120/120 |
Travel Speed | km/h | 0~12 |
Gradeability | % | 30 |
Minimum turning radius | mm | 4800 |
Wheelbase | mm | 2010 |
Diesel/Hydraulic tank capacity | L | 64/80 |
Diesel Model | | ZN390 |
Diesel Power | kw | 23 |
Dimension(L×W×H) | mm | 2880x1275x2650 |
