- Condition:New
- Type:Wheel Tractor
- By wheel:4WD
- Usage:Farm Tractor
- Drive Type:Gear Drive
- Place of Origin:CN;SHN
- Warranty:1 year
- After-sales Service Provided:Free spare parts
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Online support
- Key Selling Points:Multifunctional
- Brand Name:YF
- Certificate:ISO

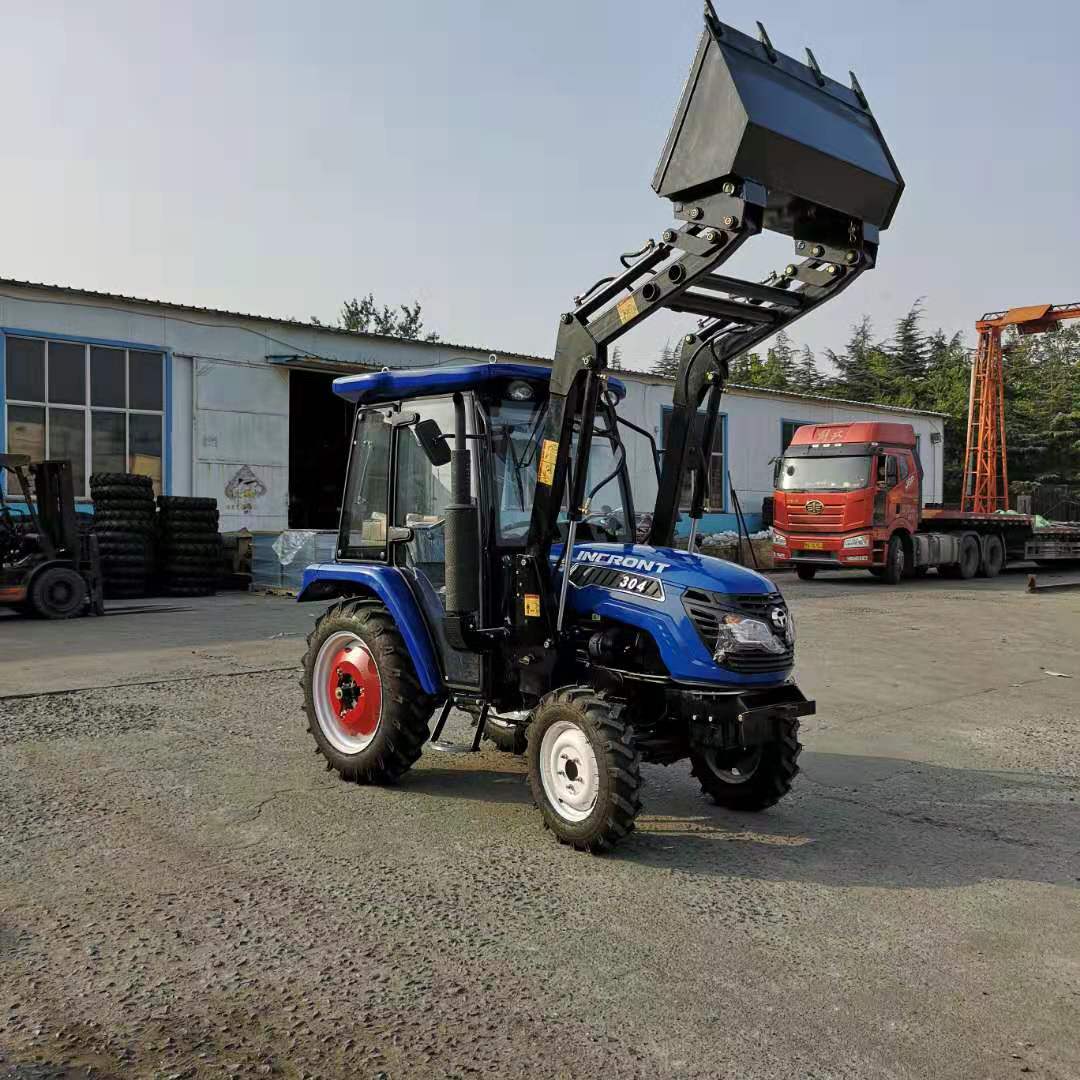

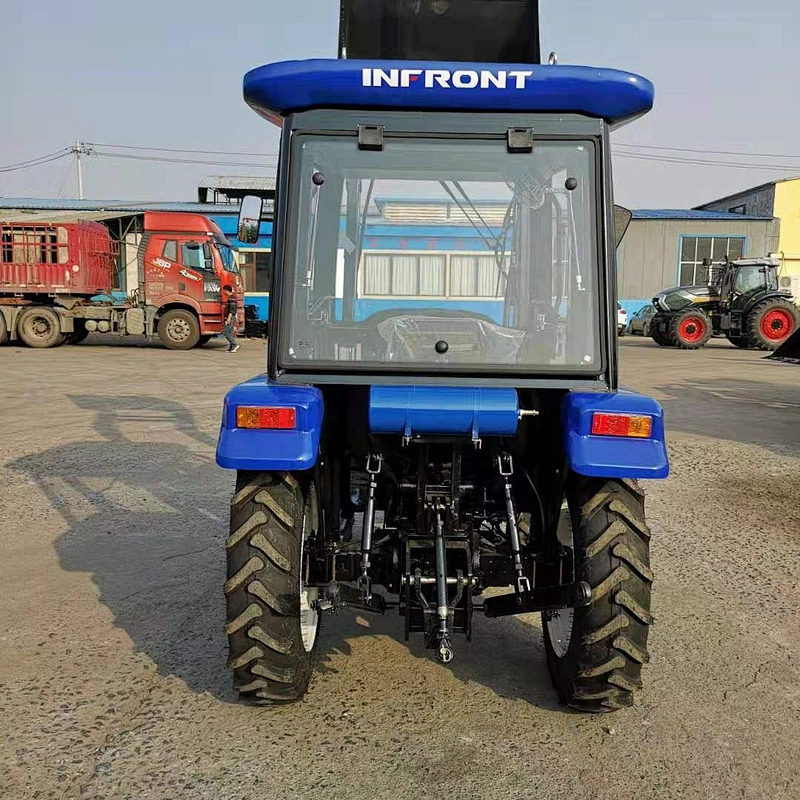

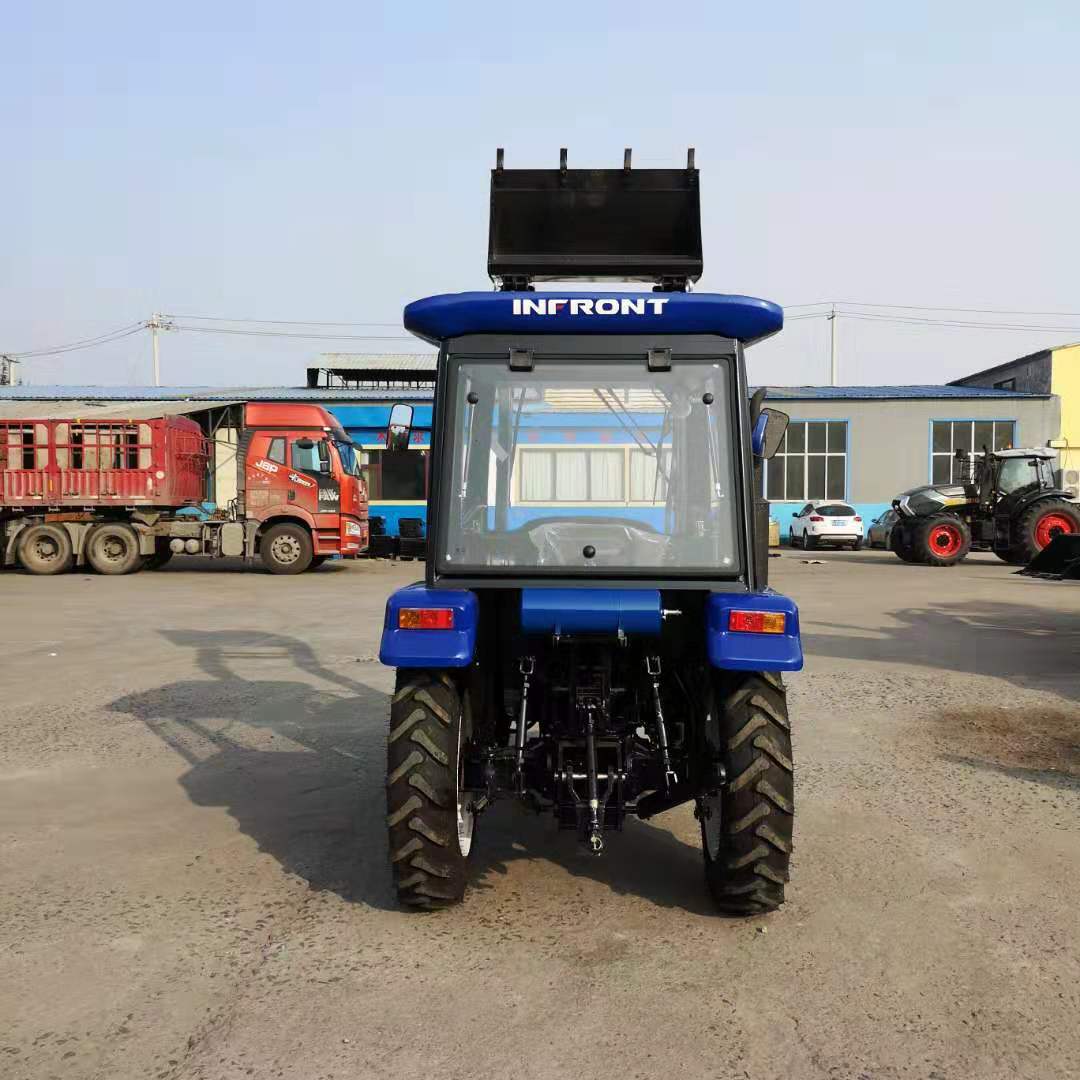

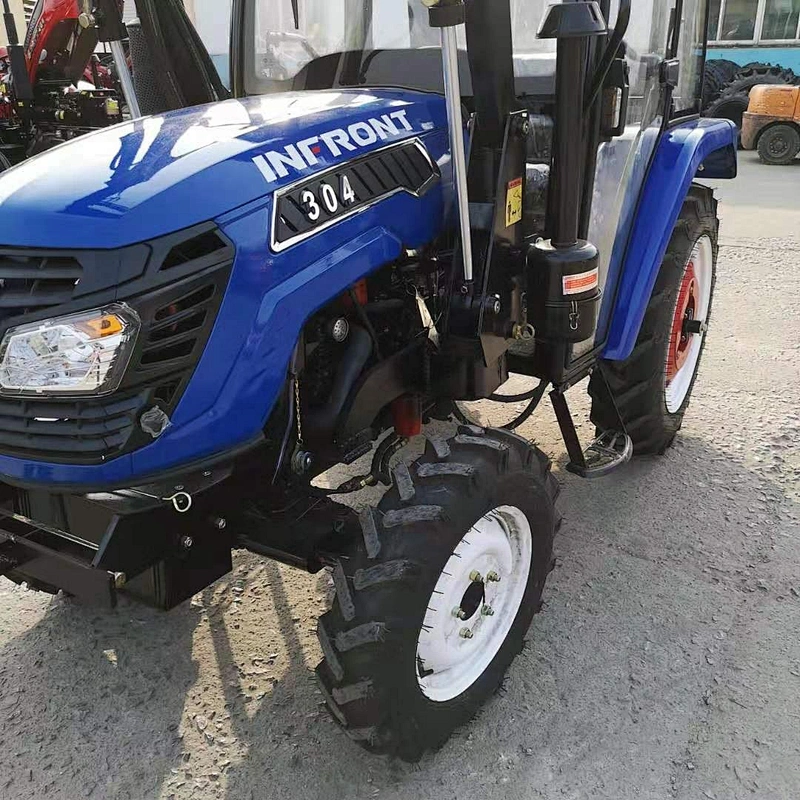

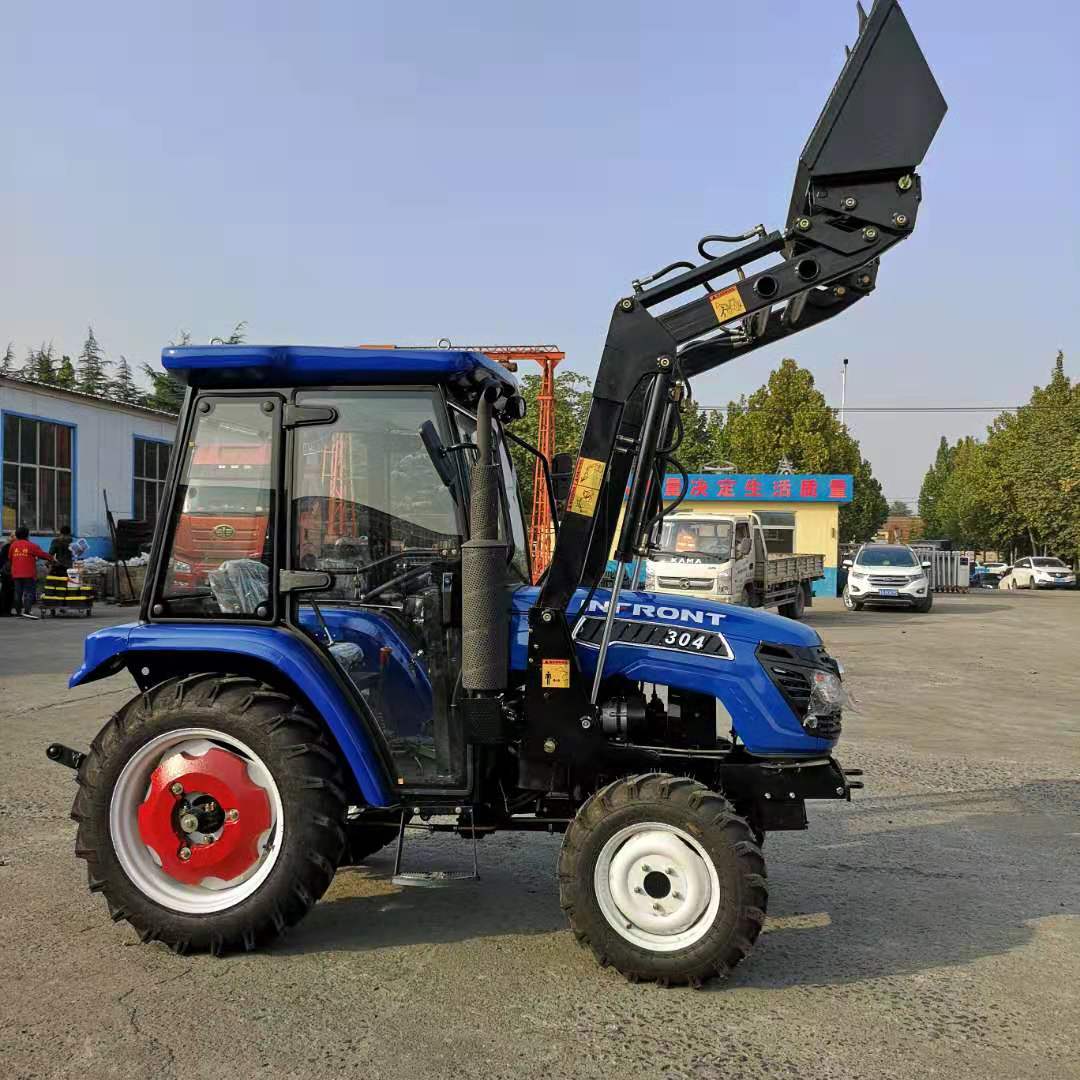

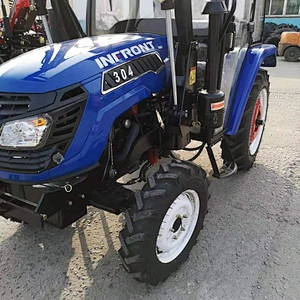

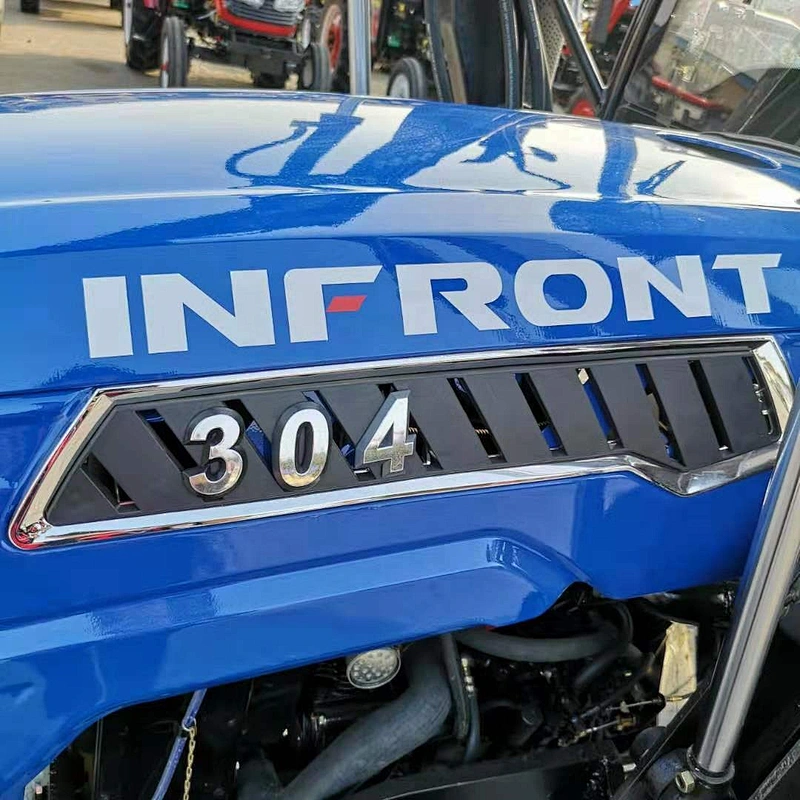

4WD 30HP Farming Tractor Mini Tractor YF304

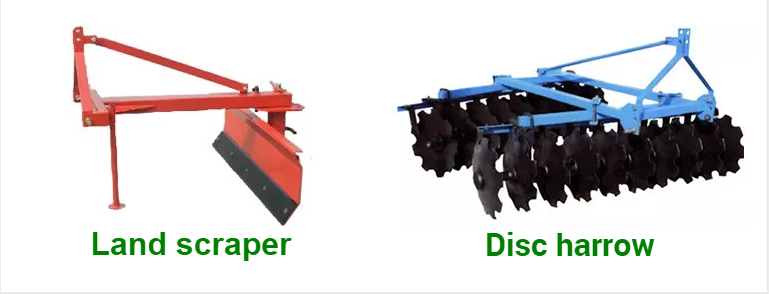

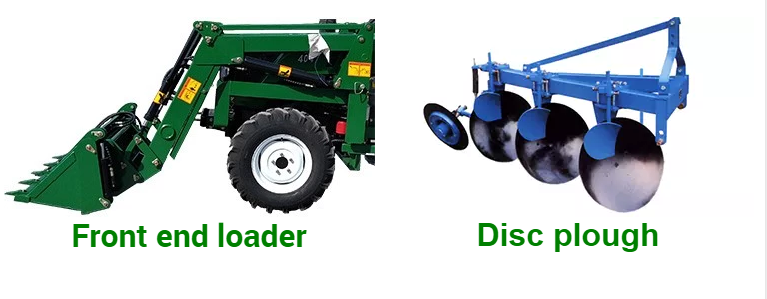

Tractor attachments:
| Model | YF304 |
| Type | 4X4 wheeled type |
| W XD X H (mm) | 2930X1500X2000 |
| Wheel base (mm) | 1605/1730 |
| Front wheel (mm) | 1070/1170/1270 Adjustable |
| Rear wheel (mm) | 1000/1100/1200/1300 Adjustable |
| Min. ground clearance (mm) | 330 |
| When one-side braking | 2.5±0.2 |
| No braking | 2.9±0.2 |
| Tractor dry mass (kg) | 1230 |
| Front/Rear Ballast (kg) | 50/60 |
| Max. PTO Power (kw) | 19.9 |
| Transmission box | Mechanic gear box |
| Gear shifts | (4+1)X2 |
| Theoretical speed (km/h) | F2.07-31.54 R2.72-12.59 |
| Differential | closed, 2 planetary gear |
| Differential lock | Jaw type |
| Engine Model | JD2102 |
| Engine Type | Vertical 4 stroke, water cooled |
| Number of Bores | 2*3 |
| Bore dia. X stroke (mm) | 102X105 |
| Combustion chamber | direct injection |
| Rated Power (kw) | 22.06 |
| Fuel consumption (g/kw.h) | ≤248.9g/kw.h |
| Engine oil consumption (g/kw.h) | ≤2.04g/kw.h |
| Front tyre size | 6.00-16 |
| Rear tyre size | 9.50-24 |
| Steering system | Power steering |
| Brake | Shoe brake |
| Tri-point Hitch system | Rear mounted, ball-hinged |
| Max. lifting capacity (kN) | 4.96 |
| PTO type | Rear mounted, nonindependent |
| PTO Rev. (rpm) | 540/1000r/min |

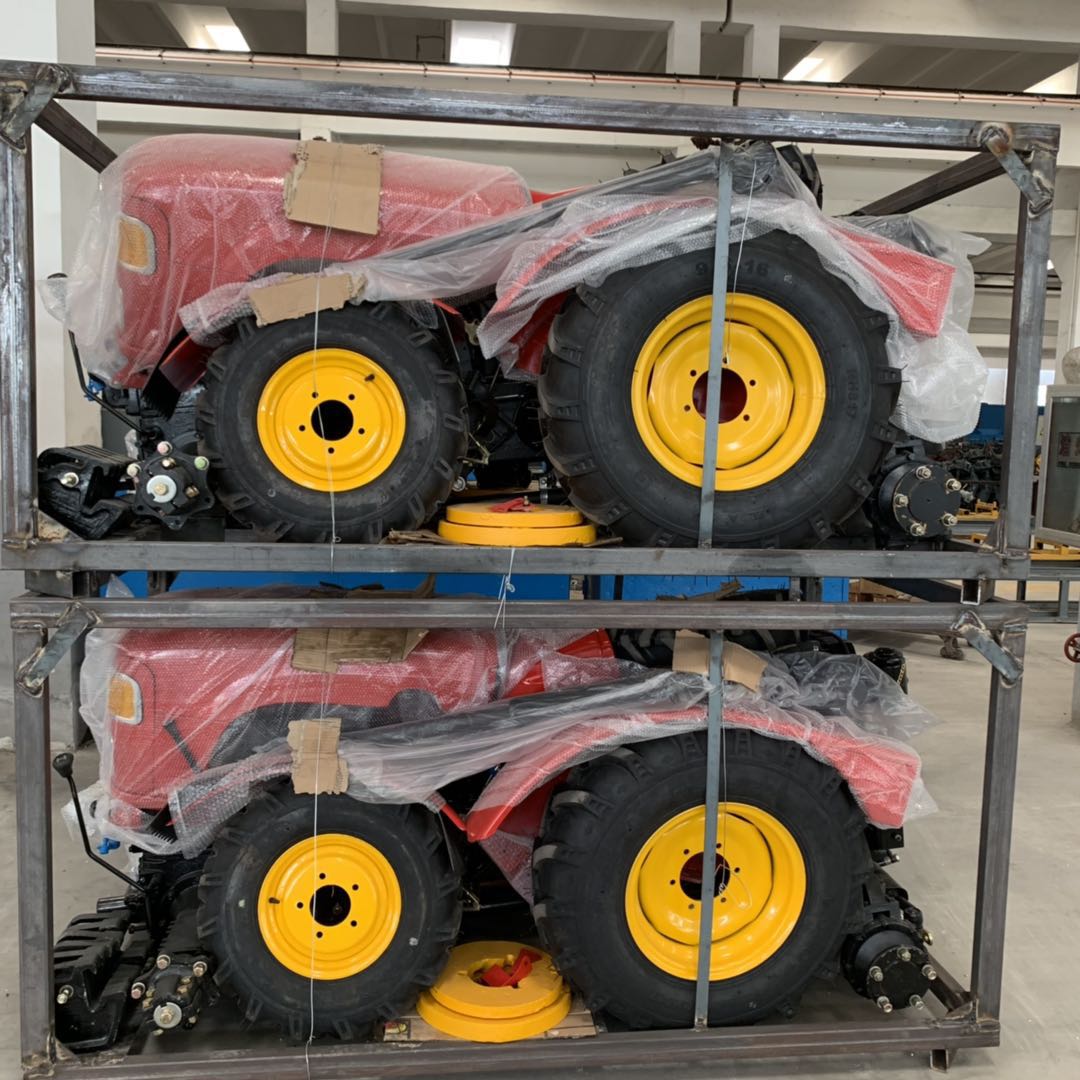

| Ship | 1 set use20GP |
Based on domestic and abroad e-commerce platform, Jining Infront Construction Machinery Co.,Ltd is a professional international trading company, which is entitled to import and export rights and specialized in cross-border online sales of large-scale construction machine and related spare parts.
Our main products are Bulldozer, Excavator, Compactor, Motor grader, Wheel loader, Road machine and related spare parts, which meet domestic trade of more than thirty provinces, cities and municipalities, and also exported to Europe, Africa, America, Russia, etc.
We promised to provide you with the first-class items and service, to build the first-class team, to create first-class values and to establish first-class enterprise image. We believe that we are able to be the main force of construction machinery field by the effort of all of our staff. Let’s seize the chance for a better future!
1.OEMorderaccepted: Customer’s brand, Color etc.
2. Spare parts in stock.
3. Factory visiting, third party inspection etc.
4.We will reply for your inquiry in 24 hours.
5. Purchasing agent for related machines.
6.Quality guranteen,technical support .
7.Delivery in time .
8. Producting according to drawlings
