- Applicable Industries:Farms
- Applicable Industries:Home Use
- Applicable Industries:Construction works
- Condition:New
- Type:Wheel Tractor
- By wheel:4WD
- Usage:Farm Tractor
- Drive Type:Gear Drive
- Certificate:CE
- Place of Origin:CN;SHN
- After-sales Service Provided:No after-sales service
- After-sales Service Provided:Free spare parts
- After-sales Service Provided:Field installation, commissioning and training
- After-sales Service Provided:Field maintenance and repair service
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Online support
- Warranty:1 year
- Brand Name:INFRONT

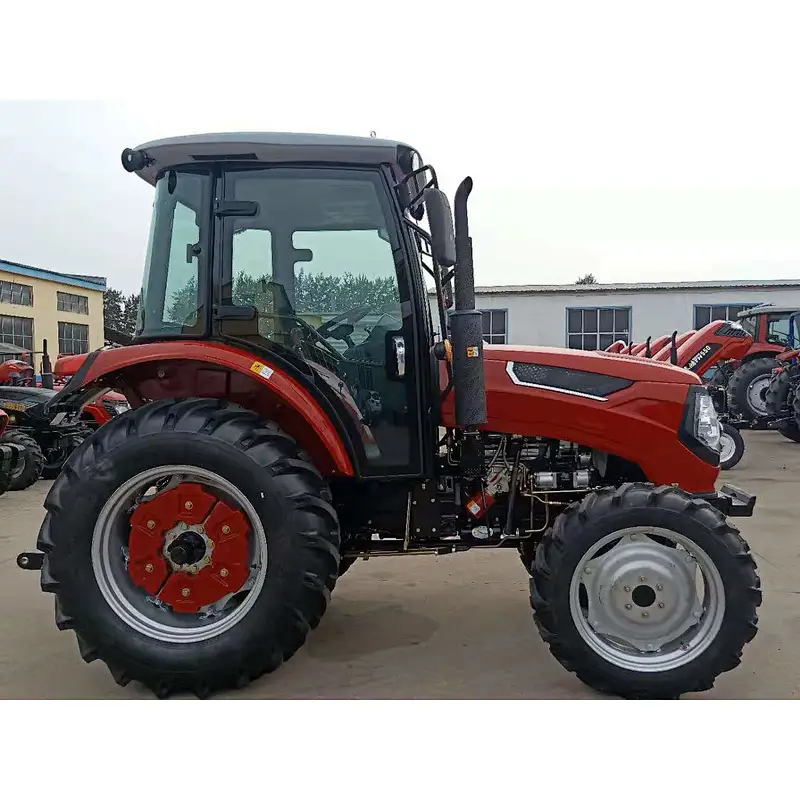

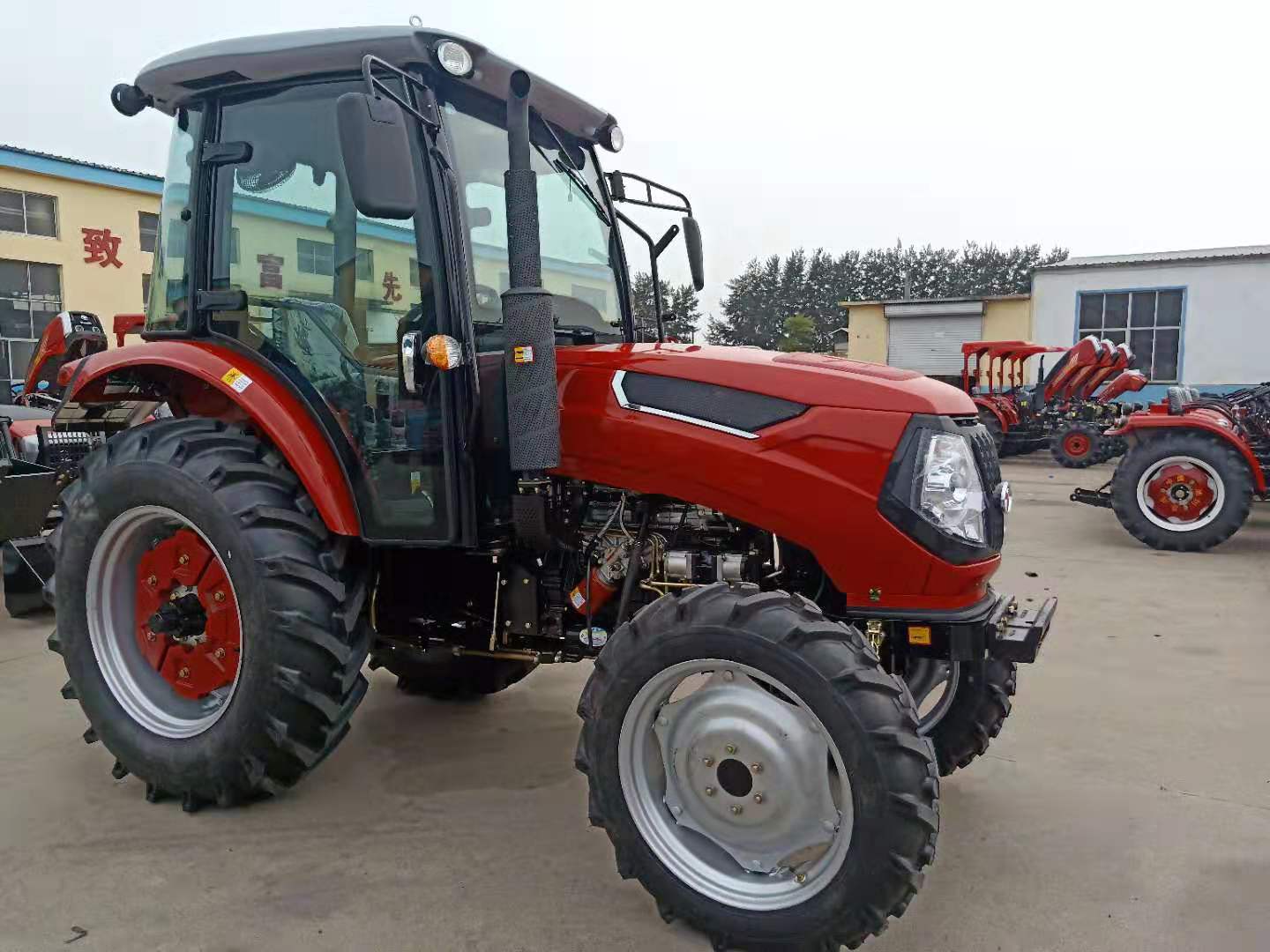

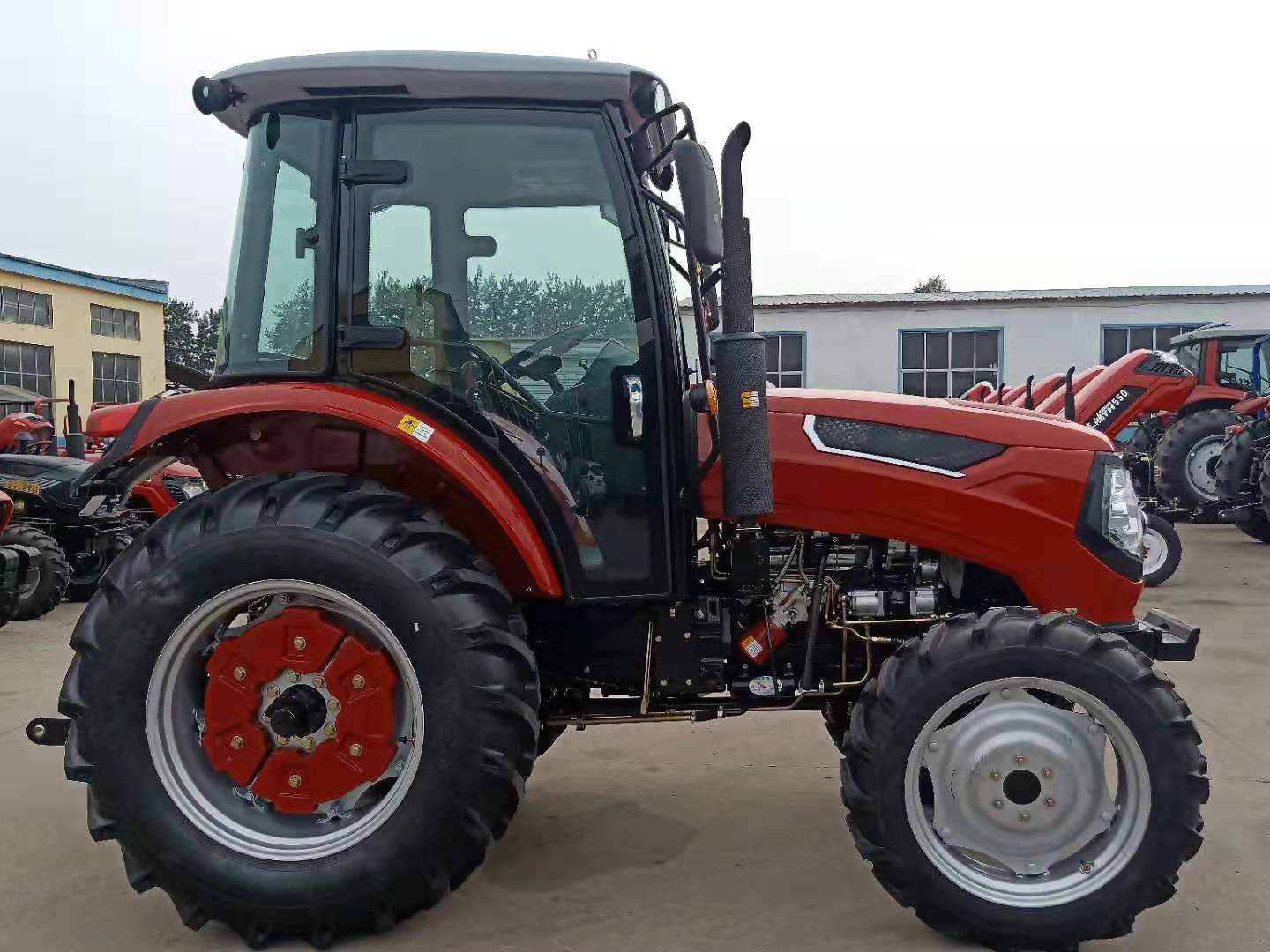

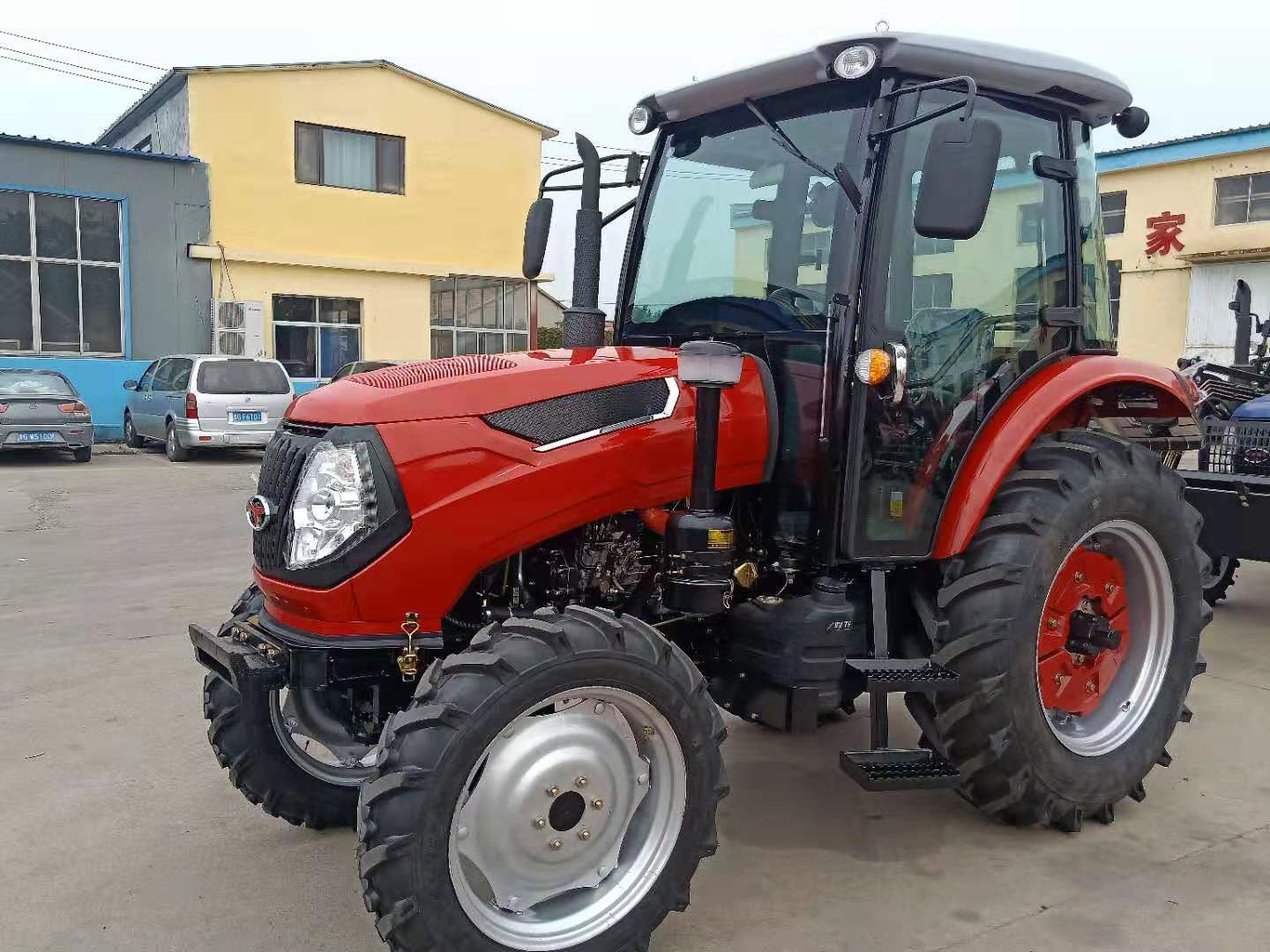

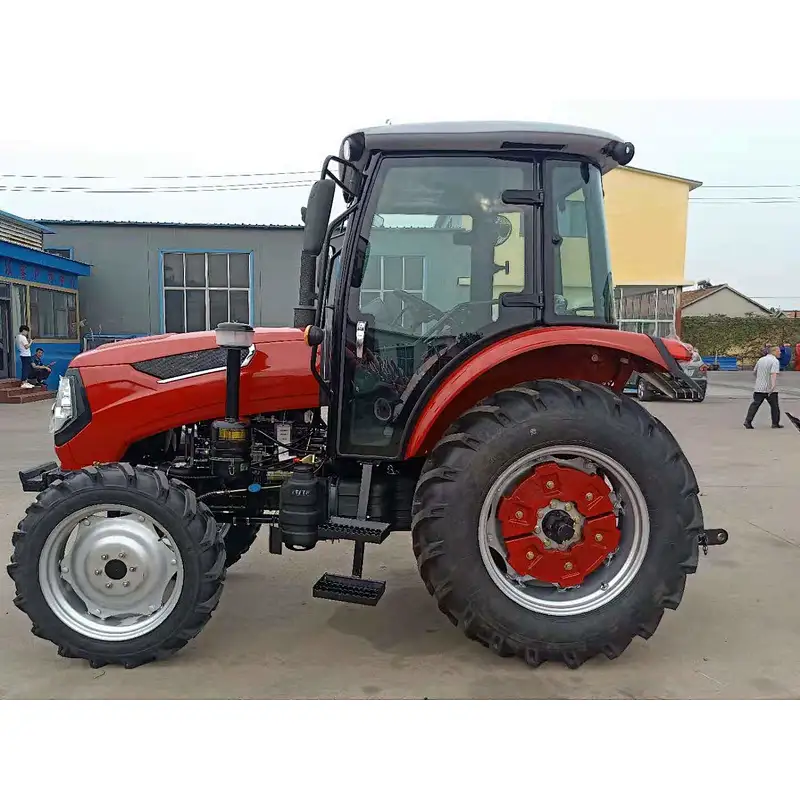

INFRONT 4x4 4WD Mini Farm Tractor 80HP YF804
Welcome to Jining Infront Construction Machinery Co.,Ltd!
Product Description
YF series tractor has the feature of higher efficiency,lower fuel consumption and easy operating etc. It is multi-functional with many attachment can be installed.It can be widly used in various narrow space works such as private garden,farm,underground park works and urban construction.
80hp 4wd tractor YF804 tractors for agriculture
MAIN PERFORMANCE PARAMETRES
china cheap farm tractors agricultural equipment
| Model | YF804 |
| Type | 4 X 4 Wheeled Type |
| General Specifications | |
| Driving mode | 4WD |
| Overall Dimensions (mm) W X D X H | 3000X1300X1200 |
| Tractor Dry Mass (kg) | 1600 |
| Wheel Base (mm) | 1750 |
| Front Wheel Tread (mm) | 1000 |
| Rear Wheel Tread (mm) | 1000 |
| Front Wheel Tire | 757X176-12 |
| Rear Wheel Tire | 13.6-20 |
| Min. Ground Clearance (mm) | 230 |
| Transmission Box & Steering System | |
| Transmission Box | Spur gear, plane compound |
| Gear Shifts | (4+1)X2 |
| Clutch | single stage, single plate, dry friction, constant contact |
| Steering System | power steering |
| Working Devices | |
| Hydraulic System | half-seperated |
| Lifter Tillage Depth Control Method | Draft and Position Control |
| Three Point Hitch System | I35, Post Positioned,CategoryⅠ |
| PTO Type | Post Positioned, Non-independent |
| PTO Rev. (rpm) | 540/760 |
| Engine | |
| Type | Vertical type, four-cylinder diesel engine |
| Model | 4TD80 |
| Bore X Stroke (mm) | 100X105 |
| Rated Power (kw) | 59 |
| Rated Revolution (rpm) | 2400 |
| Lubricating Method | Pressure splash lubrication |
| Cooling Method | Forced Water Circulation |
| Fuel consumption (g/kw.h) | ≤240 |
| Engine Oil Consumption (g/kw.h) | ≤2.0 |
Multifunction
45hp 4wd tractor YF450-D tractors for agriculture
Advantages
Our Advantage:
1.Original/OEM/After Market quality and competitive price-
2.Flexible payment terms.
3.Quick delivery time.
4.Exclusive agent accepted.
5.One-stop purchasing service.
6.Have cooperated with many importers in us for more than 5 years.
