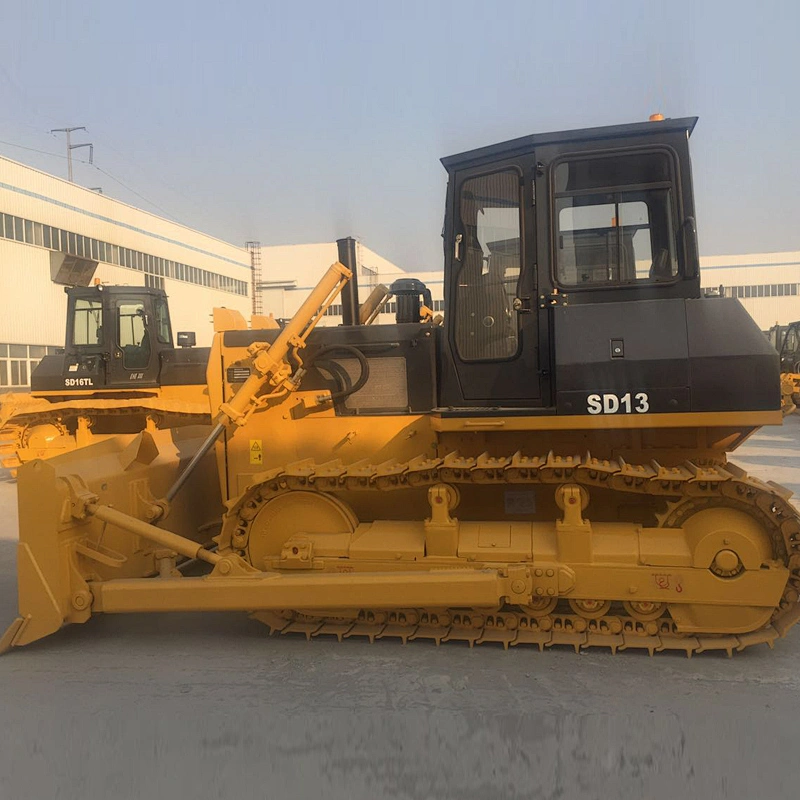

International shantui bulldozer SD13

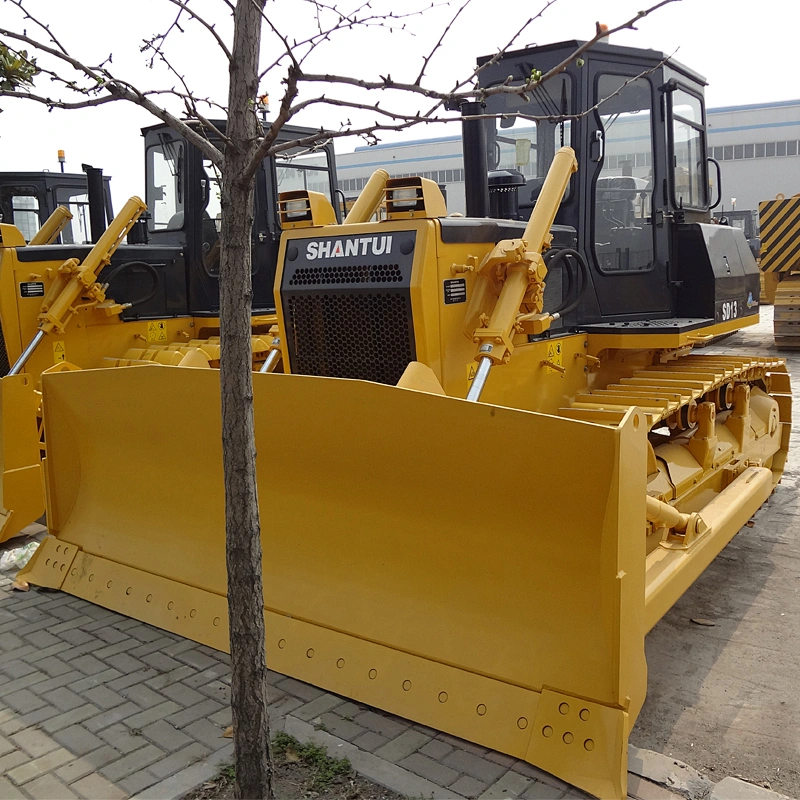

International shantui bulldozer SD13

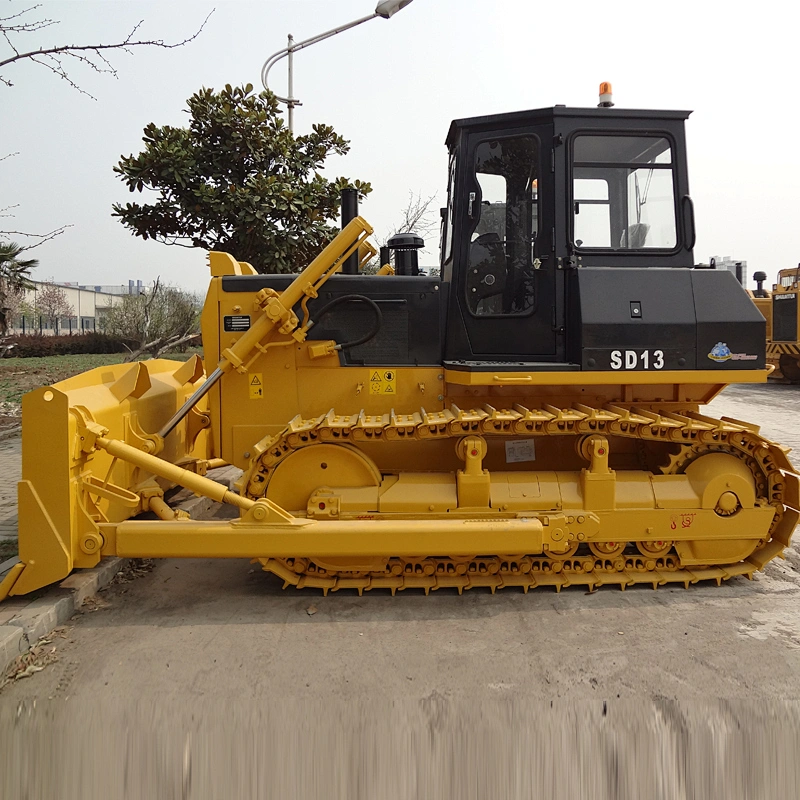

International shantui bulldozer SD13

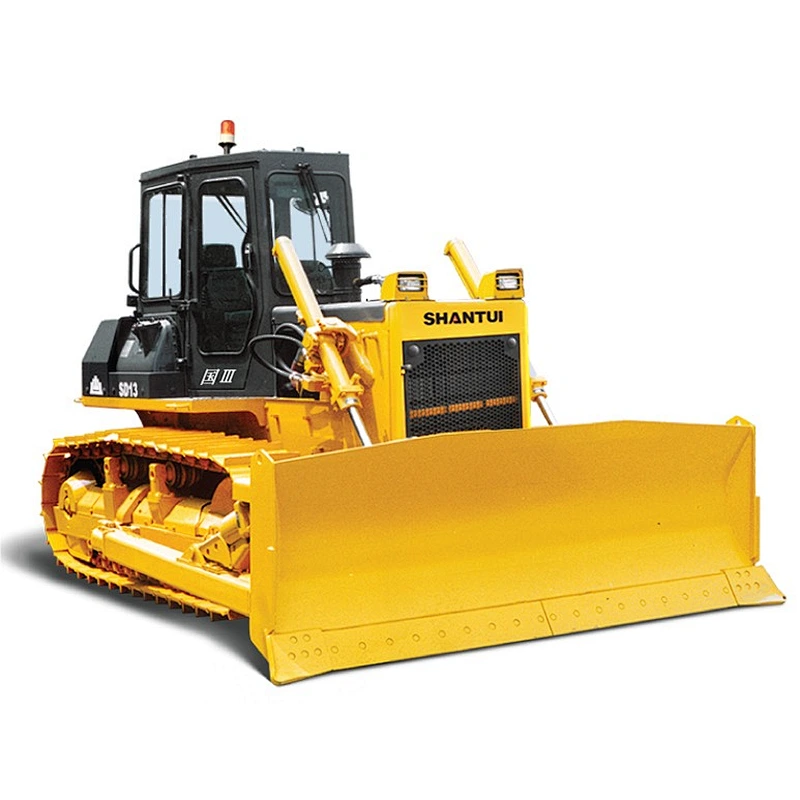

International shantui bulldozer SD13
International shantui bulldozer SD13
International shantui bulldozer SD13
International shantui bulldozer SD13
International shantui bulldozer SD13
International shantui bulldozer SD13

International shantui bulldozer SD13

Model NO.
SD 13
Price:
USD 61580.00-65000.00 / set
Delivery
FOB
Minimum order quantity
1 set
Supply Ability
200 set / Year
Country of Origin
Qingdao/Tianjin/Shanghai
Stock Time
Within7 days upon receipt of down payment. Special Day
Quantity:
  • Place of Origin:CN;SHN
  • After-sales Service Provided:Overseas third-party support available
  • Brand Name:SHANTUI
  • Dimension(Long * Breadth * High):4492*3185*2950
  • Condition:New
  • Moving Type:Crawler Bulldozer
  • Model Number:SD13
  • Machine Weight:13.7Ton

International bulldozer SD13


The SD13 gets mid-range volume jobs done in record time. A smaller version of our best-selling SD16 line, the SD13 delivers all the durability and reliability of its larger cousin series. With a high-power, high-efficiency, turbocharged engine featuring a large-torque reserve coefficient, the 130 hp SD13 is ready for work.Its extended track ensures low ground pressure, high reliability and strong traction while the comfortable wide visibility hexahedron cab and integrated dashboard design help keep operator productivity at peak levels.

Performance Paramete

130 HP
SD13
Technical
specifications:
Blade TypeStraight-tiltAngle
Min. ground clearance:320 mm320 mm
Ground pressure:0.064 MPa0.064 MPa
Minimum turning radius:4.466 m4.545 m
Gradeability:30°30°
Track gauge:1880 mm1880 mm
ENGINEModel & type

Shangchai SC8D143G2B1; Water-cooled, in-line,

4-cycle, direct injection and turbocharged

Rated power95.5 kW
Number of cylinders6—114 x 135 mm (bore x stroke)
Piston displacement8.27 L
Min. fuel consumption228 g/kW·h
Maximum torque674 N·m@1300 rpm
POWERTRANS
MISSIONSYSTEM
Torque converter3-element, 1 stage, 1 phase
TransmissionForced connected, planetary gear
Main driveSpiral bevel gear, splash lubrication
Steering clutch

Wet, multidisc, spring loaded, hydraulic helping operation,

mechanical separating, linking steering brake

Steering brake

Wet, floating, band type foot stepping brake

with hydraulic helping

Final drive

2-stage speed reduction of spur gear,

splash lubrication

TRAVELSPEEDGear1st2nd3rd
Forward0~3.2 km/h0~5.9 km/h0~9.8 km/h
Reverse0~3.9 km/h0~7.1 km/h0~11.9 km/h
UNDERCARRIAGE
SYSTEM
Type

Swing type of sprayed beam,

suspended structure of equalizer

Carrier rollers2 each side
Track rollers6 each side
Track typeSingle grouser, dry type
Width of track shoes460 mm
Pitch190 mm

HYDRAULIC

SYSTEM

Maximum pressure14 MPa
Pump typeGear pump
Discharge180 L/min

Bore of working

cylinder × no.

90 mm × 2
BLADEBlade typeStraight-tiltAngle
Dozing capacity3.7 m33.4 m3
Blade width3185 mm3745 mm
Blade height1090 mm915 mm

Maximum drop

below ground

590 mm590 mm
RIPPER(OPTIONAL)Maximum tilt adjustment400 mm

Maximum digging depth

of 3-shank ripper

467 mm
Weight of 3-shank ripper1421 kg
Product Description


Optaional Equipment

Shantui's value proposition is greatly enhanced by the fact that we produce our structural parts for our machines,including accessories such as blades,rippers,tract assemblies and cabs.We also offer a variety of excellent engine choice for the bulldozer series.


Application

Pushing, backfilling and other earthworks.


Payment

T/T WESTERN UNION L/C Trade Assurance

Trade Assurance which granted by Aliababa.com.

Protect your payment to make sure that we deliver on time and manufacture quality products as

required.


Packaging & Shipping

Packing:The bulldozer are in nude, 20GP, 40HQ standard exporting package, or according to the

buyer's request.

Delivery:Within7 days upon receipt of down payment. Special models about 30days.


Company Information


Replying on SHANTUI Construction Machinery, based on domestic and abroad e-commerce platform, Jining Infront Construction Machinery Co.,Ltd is a professional international trading company, which is entitled to import and export rights and specializing in cross-border online sales of large-scale construction machine and related spare parts. Our main products are Bulldozer, Excavator, Compactor, Motor grader, Wheel loader, Road paver and related spare parts, which meet domestic trade of more than thirty provinces, cities and municipalities, and also exported to Europe, Africa, America, Russia, etc. By virtue of our superior quality and well-deserved reputation, we won praises at home and abroad and made great contribution to get Chinese machinery out into the world. We promised to provide you with the first-class items and service, to build the first-class team, to create first-class values and to establish first-class enterprise image. We believe that we are able to be the main force of construction machinery field by the effort of all of our staff. We aim to make our service famous around the world, to have more opportunity to make friends from worldwide, let’s seize the chance for a better future!
