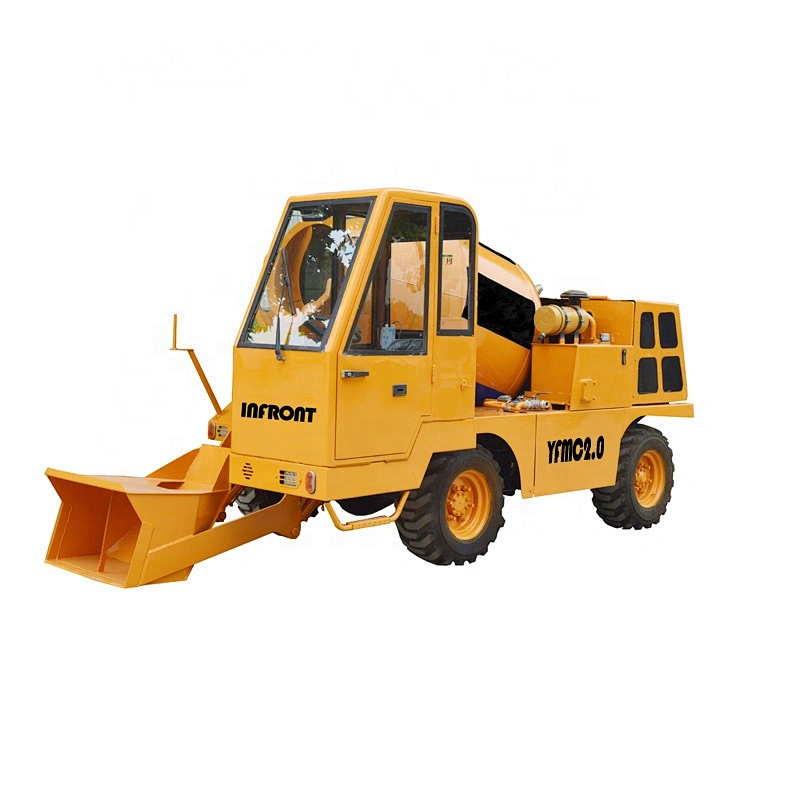

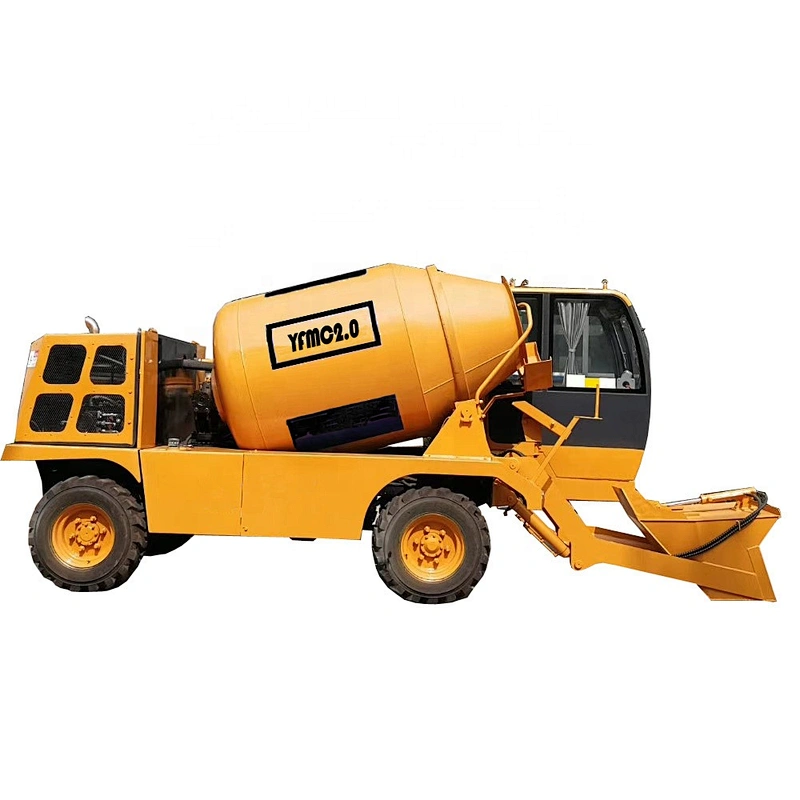

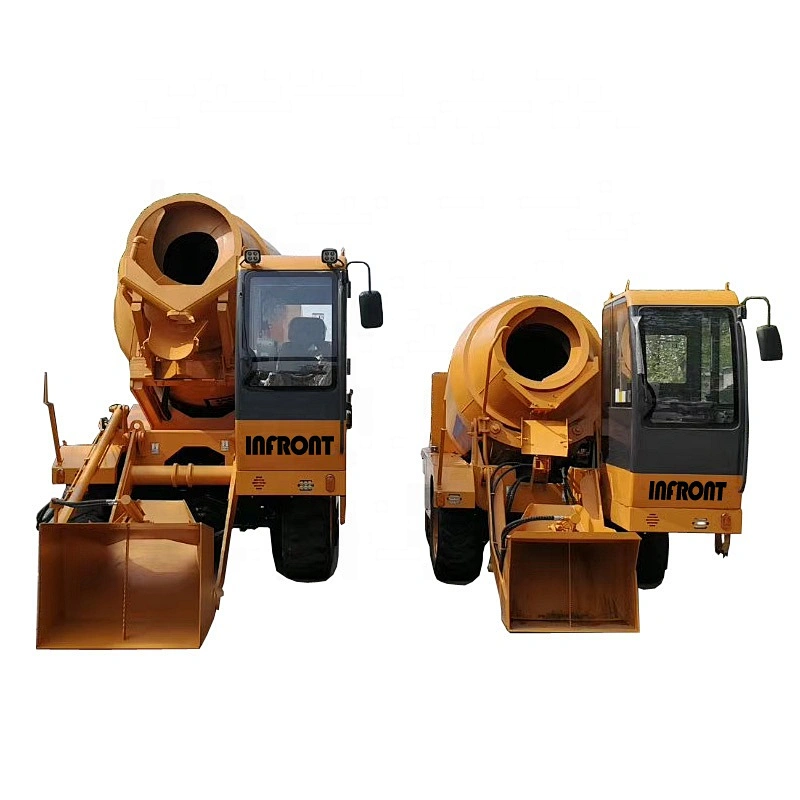

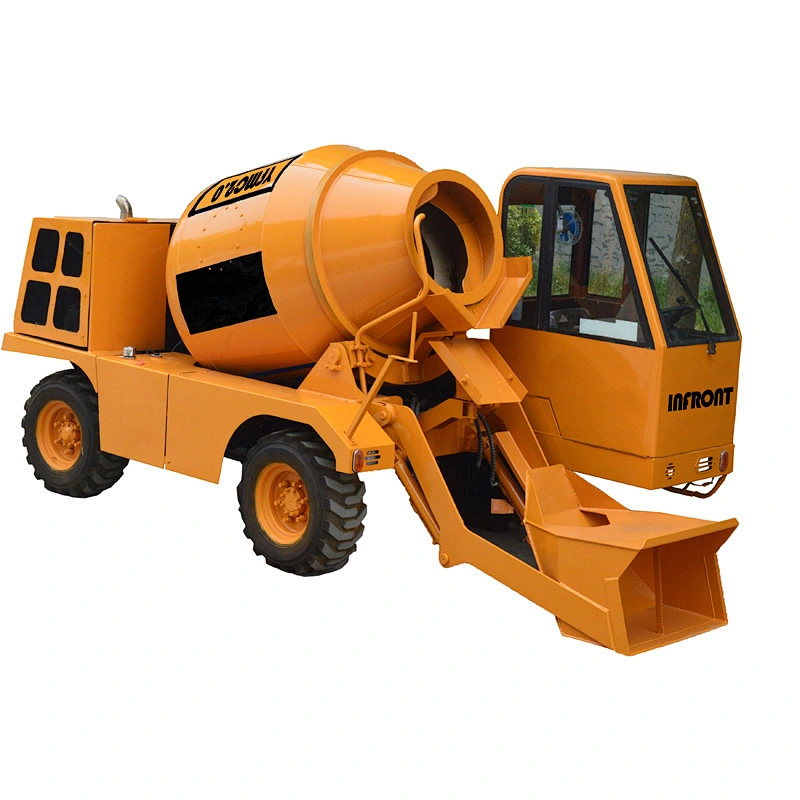

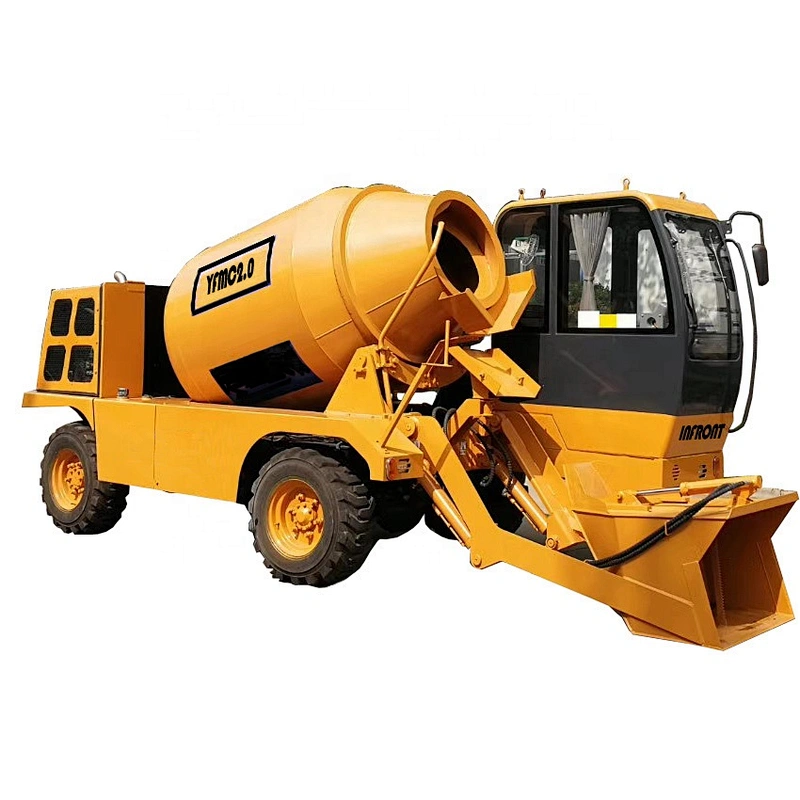

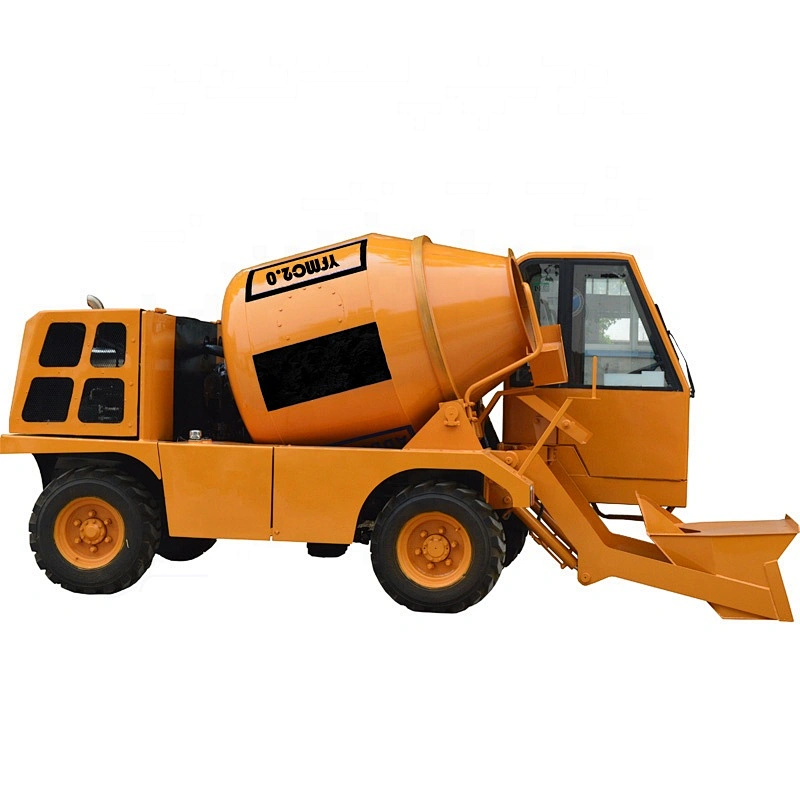

China diesel concrete mixer truck YFMC2.0 with self -loading

China diesel concrete mixer truck YFMC2.0 with self -loading

Price:: USD 10000.00-11000.00 / set
Delivery: FOB
Minimum order quantity: 1 set
Supply Ability: 10000 set / Year
Country of Origin: Qingdao,Tianjin,Shanghai

Quantity:

Product Description
Basic Information

China disel concrete mixer truck YFMC2.0 with self -loading

Product Description

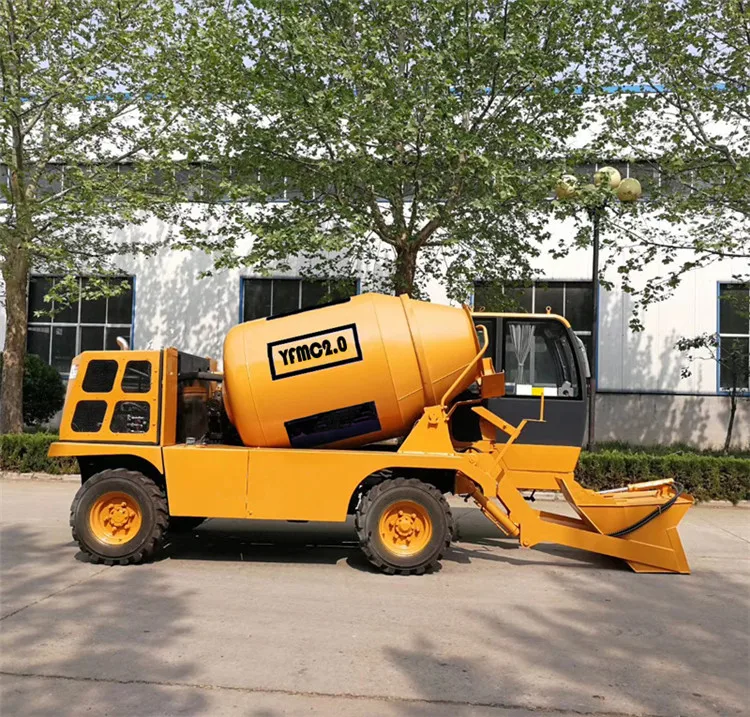

conceret mix truck (6).jpg

	*Specification*
Mixing drum	Drum capacity 2.7cbm, concrete output 2 cbm per batch, 5 tons.
Mixing speed	0-20rpm in full, infinitely variable speed change, no interference from other actions
Loading speed	3 shoves/min, 279l/shovel
Pumping water	1.5min/batch, 25tons/hour, self suction hydraulic driven water pump
Efficiency	4 batches one hour, 8m3/hour
Speed	0-10km/hour low speed 0-20km/hour high speed
Washing gun	Washing nozzle.
Drum rotation	No horizontal rotation, high of discharge post is 1.1 meters
Engine	Xinchai, A498, diesel, water cold, 4 cylinders, rated power, 48kw/2200rpm, 65hp
Transmission	Hydraulic system, 4 wheels drive, 2 wheels steer, 4x4x2
Walk	Variable plunger pump and plunger motor
Mixing	Variable plunger pump and plunger motor
Joymix	Hydraulic pilot handle
Driving seat	Left drive, front cab, one side of loading shovel
Chute	Slewing, fitted with two pins easily detachable to increase the discharge height
Brake	Air brakes
Steering	front 2 wheel steering
Tyre	12-16.5 Construction 12-16.5
Electric	. 24v, safety battery cut-off
Tanks	Water tank; 300l diesel tank; 70l, hydraulic oil tank; 80l
Weight	5000kgs
Overall dimensions	Long; 5.1m width; 2.2m height; 2.3m
Measuring	Electronic weighing system, with the printer, the deviation is less than 5%

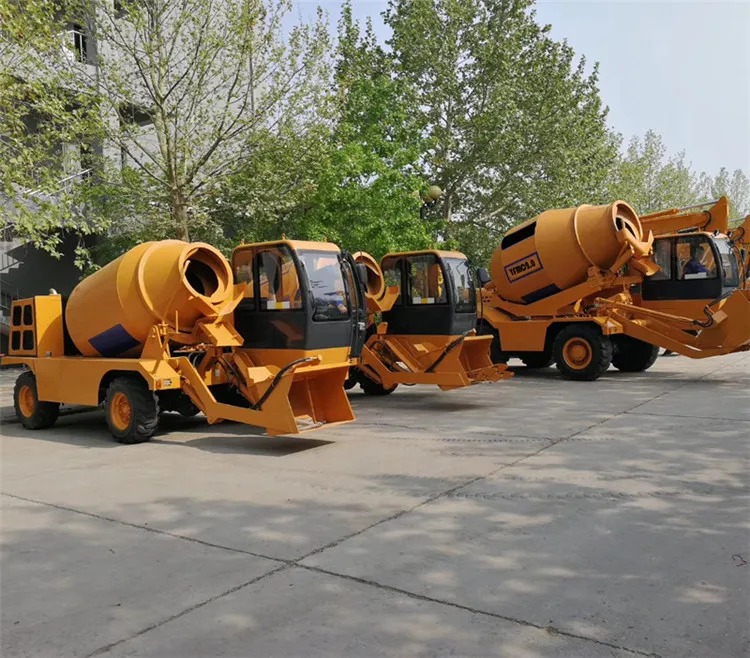

conceret mix truck (8).jpg
