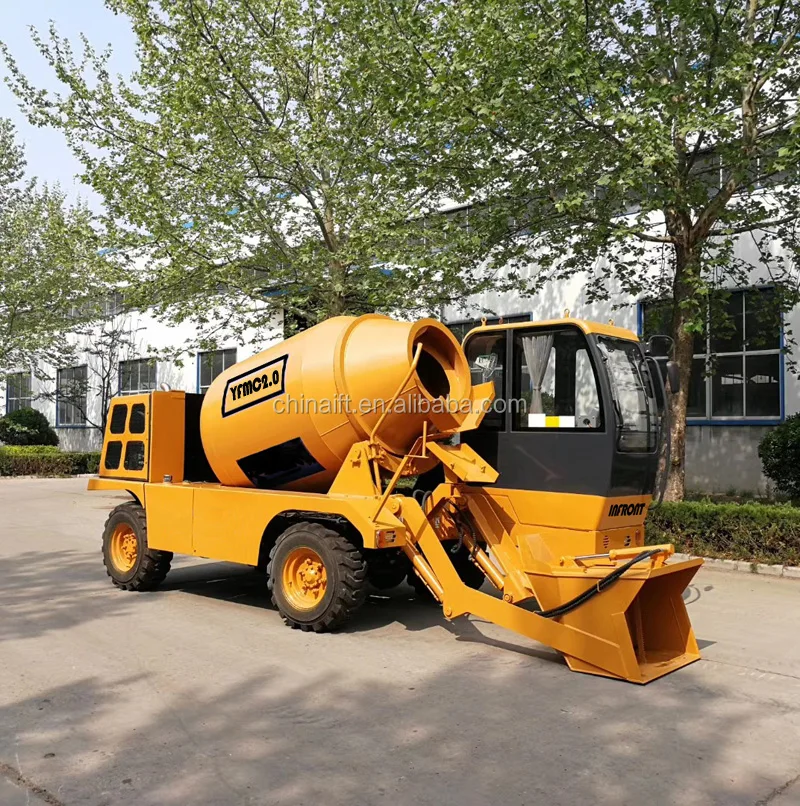

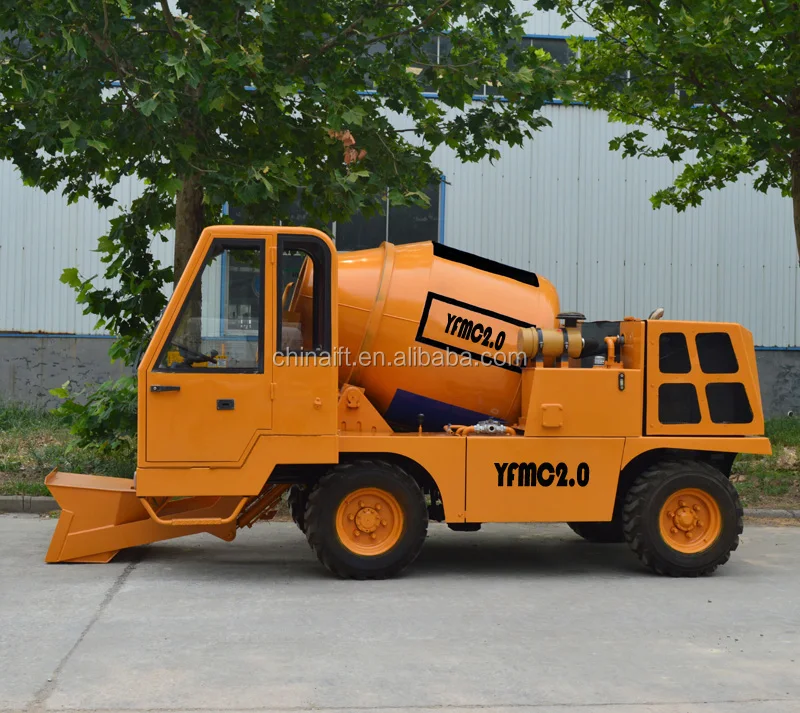

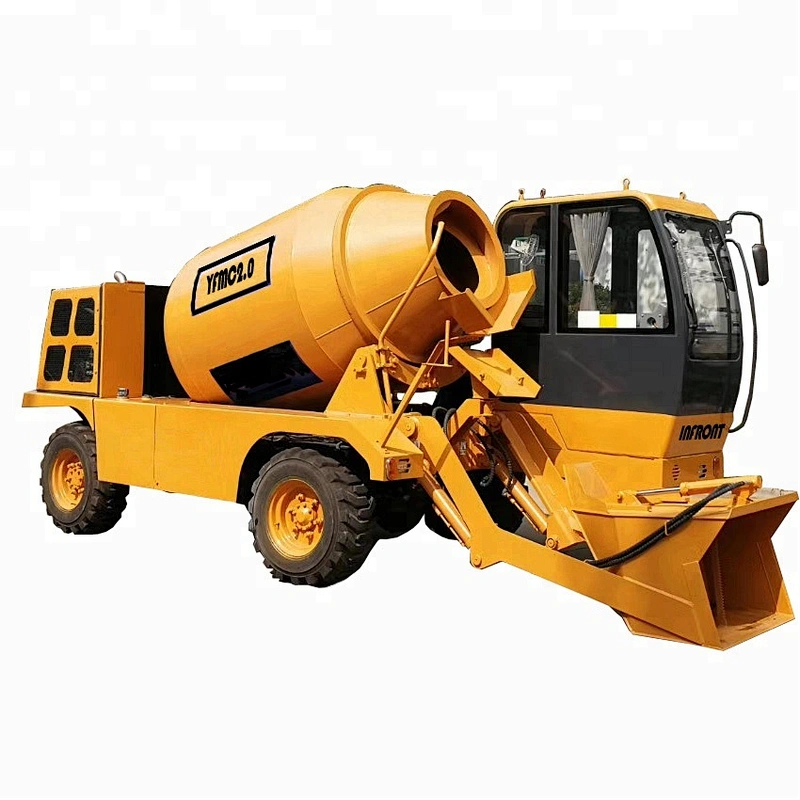

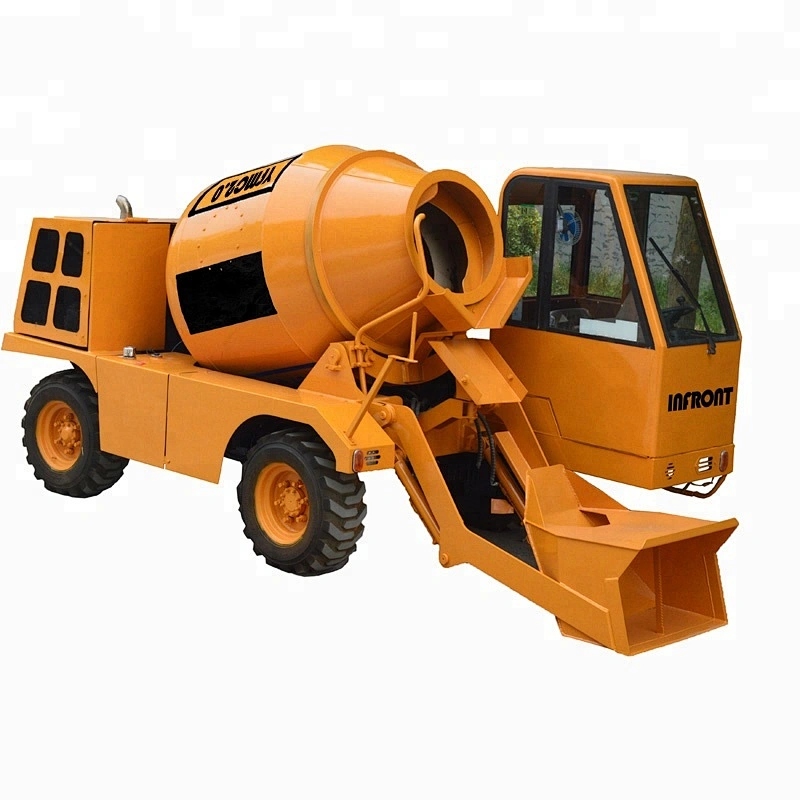

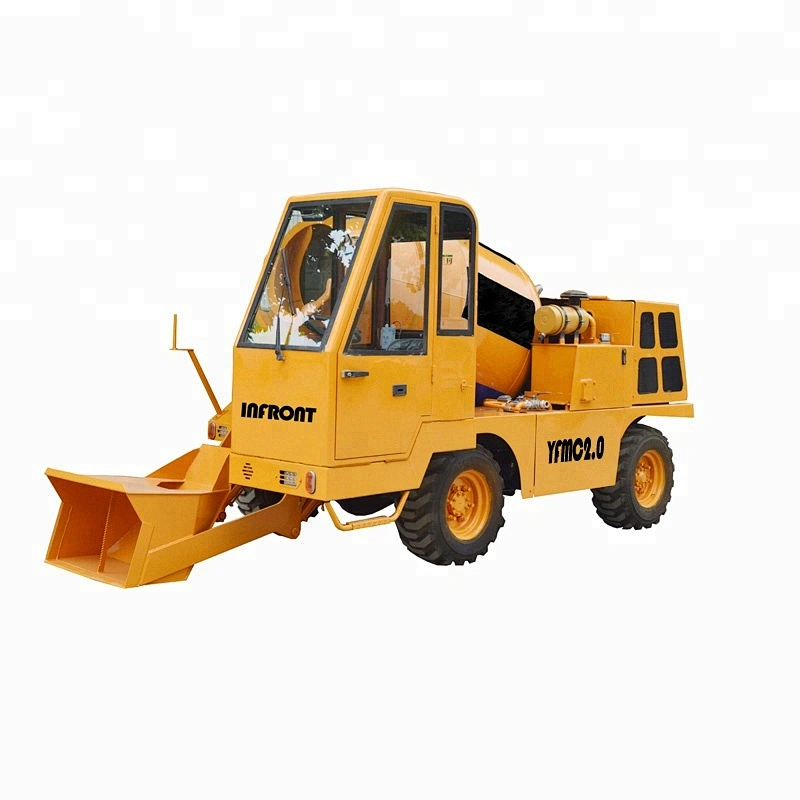

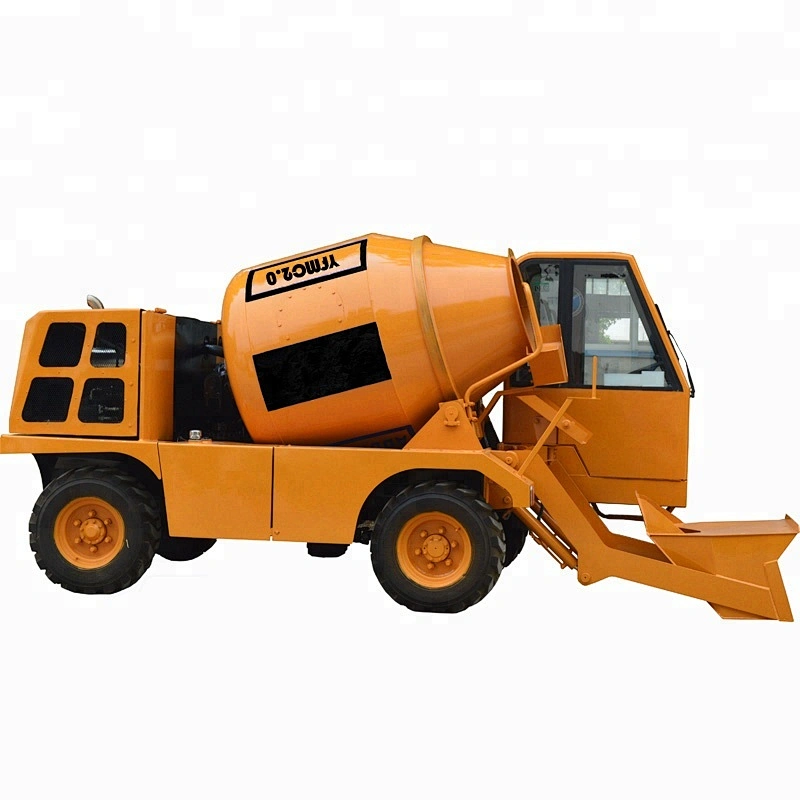

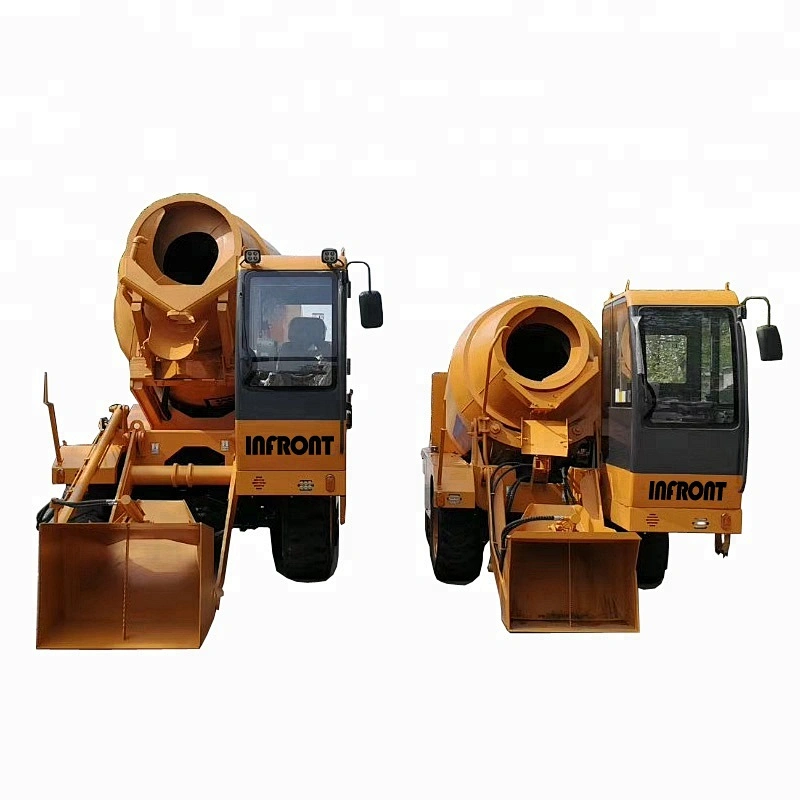

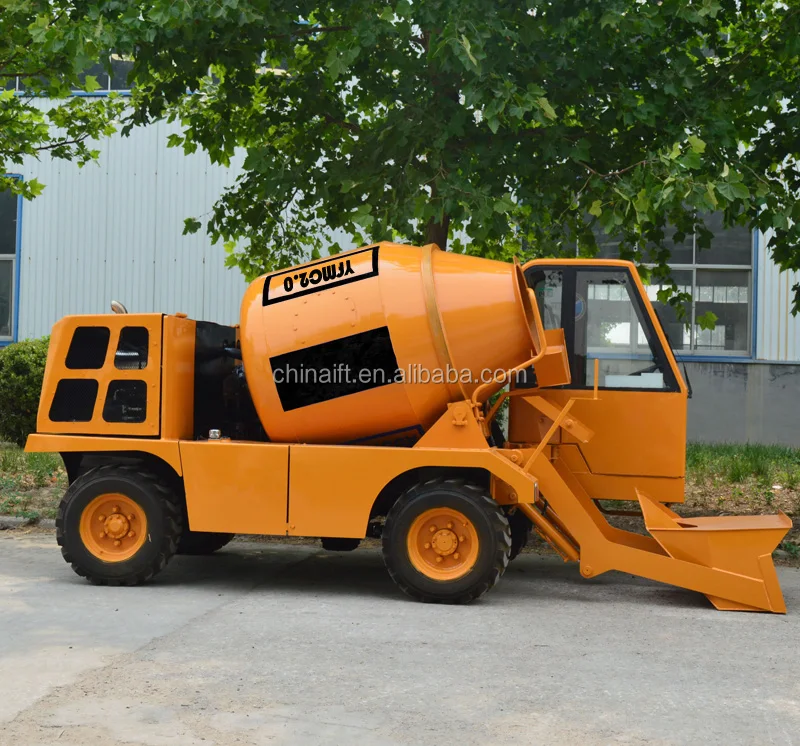

Self-Loading Small Concrete Mixer 2.5 m3 Motomixer 4X4 Loader Dumper FOB Refere

Self-Loading Small Concrete Mixer 2.5 m3 Motomixer 4X4 Loader Dumper FOB Refere

Price:: USD 33000.00-40000.00 / set
Delivery: FOB
Minimum order quantity: 1 set
Supply Ability: 50 set / Month
Country of Origin: shanghai,qingdao

Quantity:

Product Description
Basic Information

Product Description

	YFMC2.0
Mixing drum	Drum capacity 2.7cbm, concrete output 2 cbm per batch, 5 tons.
Mixing speed	0-20rpm in full, infinitely variable speed change, no interference from other actions
Loading speed	3 shoves/min, 279l/shovel
Pumping water	1.5min/batch, 25tons/hour, self suction hydraulic driven water pump
Efficiency	4 batches one hour, 8m3/hour
Speed	0-10km/hour low speed 0-20km/hour high speed
Washing gun	Washing nozzle.
Drum rotation	No horizontal rotation, high of discharge post is 1.1 meters
Engine	Xinchai, A498, diesel, water cold, 4 cylinders, rated power, 48kw/2200rpm, 65hp
Transmission	Hydraulic system, 4 wheels drive, 2 wheels steer, 4x4x2
Walk	Variable plunger pump and plunger motor
Mixing	Variable plunger pump and plunger motor
Joymix	Hydraulic pilot handle
Driving seat	Left drive, front cab, one side of loading shovel
Chute	Slewing, fitted with two pins easily detachable to increase the discharge height
Brake	Air brakes
Steering	front 2 wheel steering
Tyre	Construction 12-16.5
Electric	24v, safety battery cut-off
Tanks	Water tank; 300l diesel tank; 70l, hydraulic oil tank; 80l
Weight	5000kgs
Overall dimensions	Long; 5.1m width; 2.2m height; 2.3m
Measuring	Electronic weighing system, with the printer, the deviation is less than 5%
