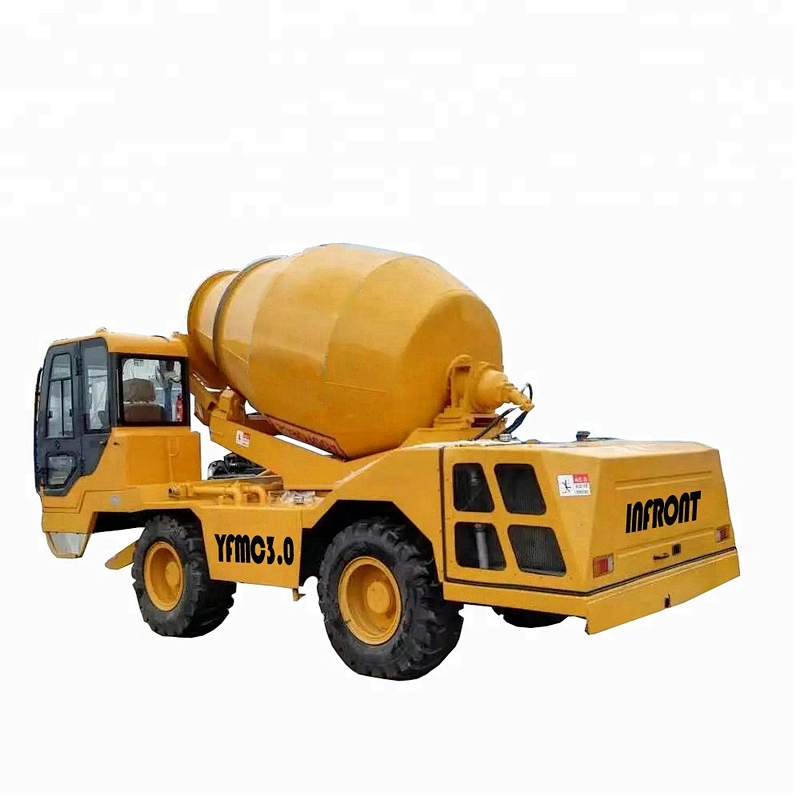

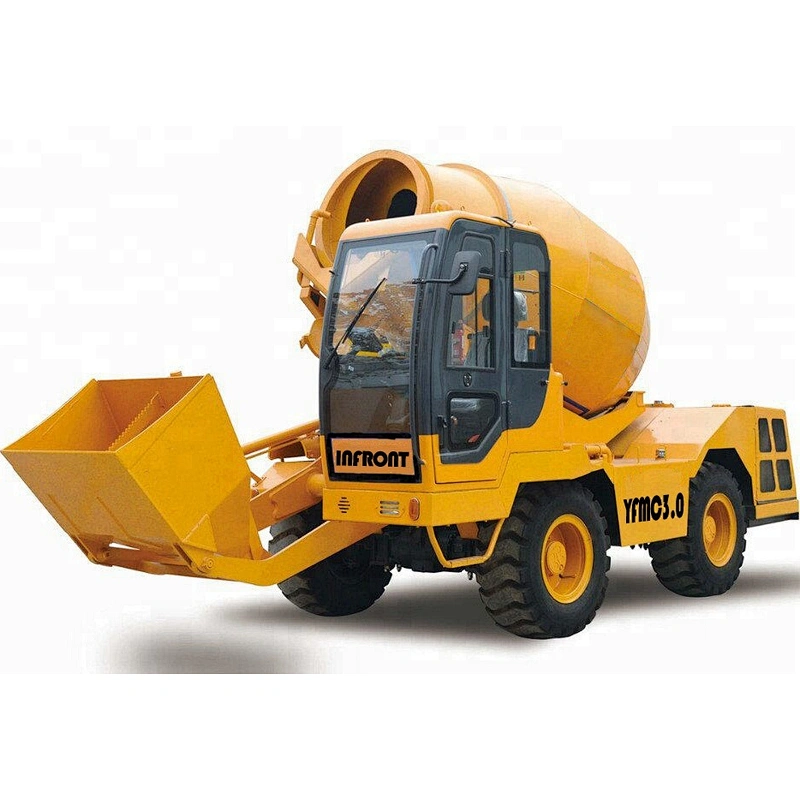

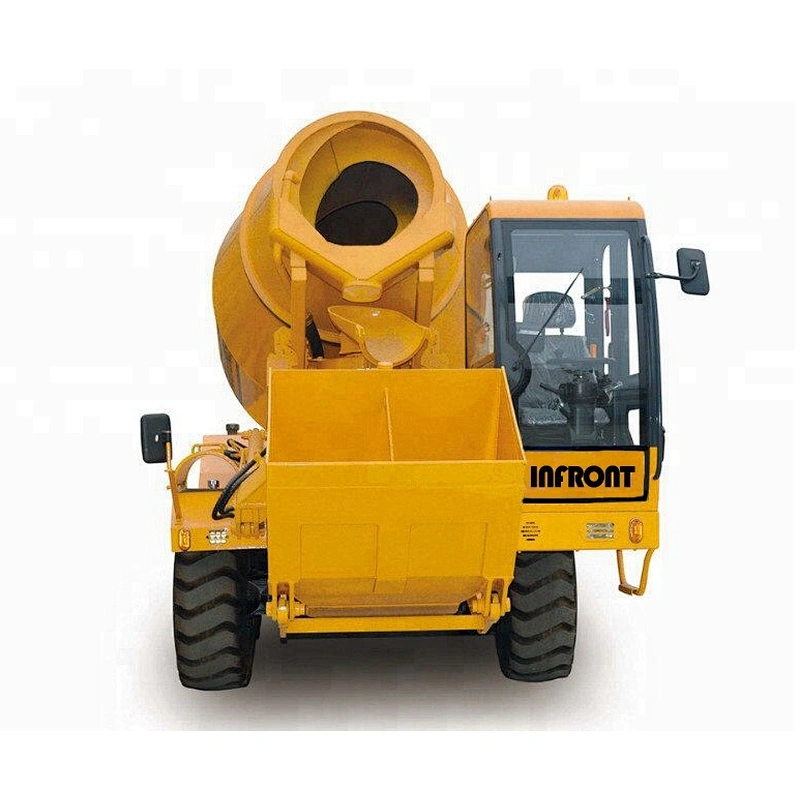

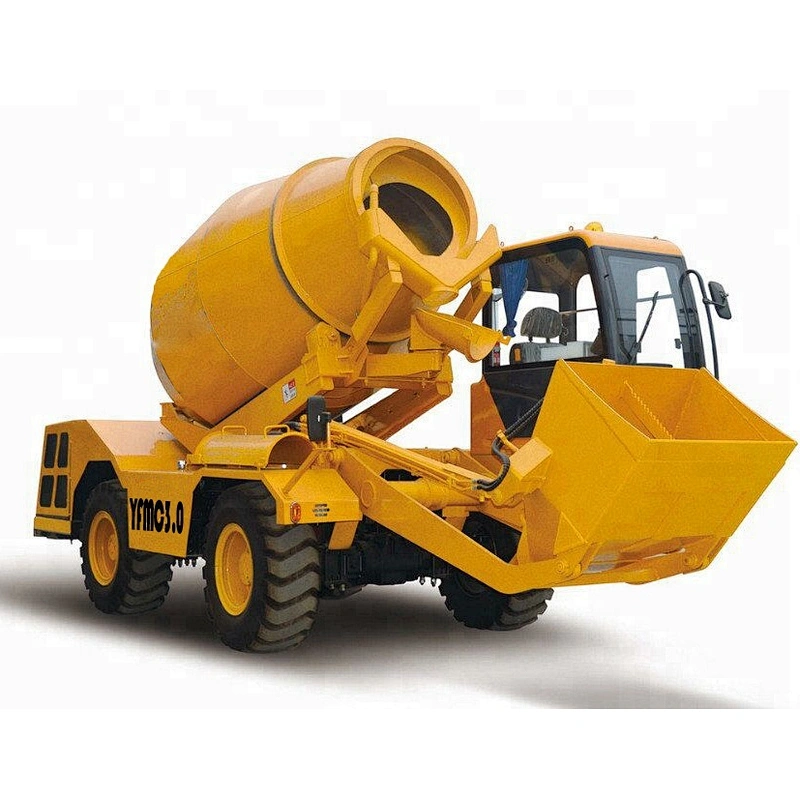

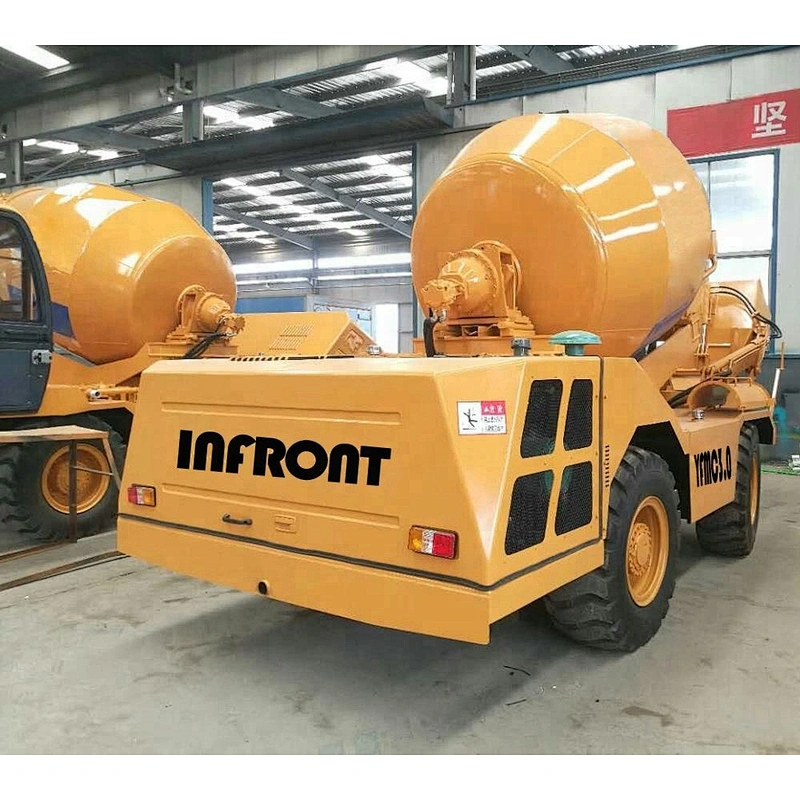

3.5m3 Self Loading Concrete Mixer Truck Motomixer

3.5m3 Self Loading Concrete Mixer Truck Motomixer

Price:: USD 33000.00-40000.00 / set
Delivery: FOB
Minimum order quantity: 1 set
Supply Ability: 50 set / Month
Country of Origin: shanghai,qingdao

Quantity:

Product Description
Basic Information

Product Description

	YFMC3.5
Mixing Drum	Drum capacity 5.3M3. Concrete output: 3.5 M3 per batch. 8.75Ton.
Mixing Speed	0-20rpm in full, infinitelyvariable speed change. No interference from otheractions.
Loading Speed	3shovels/min, 650L/Shovel
Pump water	1.5 min/batch. 40Ton/hour, Self-suction hydraulic driven water pump
Efficiency	4 batches one hour. 14m3/hour
Speed	0—10km/hour 0—20km/hour
Washing Gun	Hydraulic driven high pressure water pump & washing gun
Drum rotation	Horizontal rotation270°, high of discharge port is 1.8 meters
Engine	Yuchai,YC4A125Z, Diesel, water-cooled,4cylinders,92kw/2200rpm.
Transmission	Powered by hydraulic. 4 wheel drive and 4 wheel steering.
Walk	Powered by Variable plunger pump and variable plunger motor.
Mixing	Powered by variable plunger pump and plunger motor. American DANFOSS brand
Joymix	Hydraulic pilot handle.
Driving seat	Left drive , front cab, on side of loading shovel.
Chute	Slewing. Fitted with two pins easily detachable to increase the discharge height.
brake	Hydraulic brake, double independent circuit. No power state 4 time effective brake. Hydraulic parking brake
Steering	Hydraulic steering. 3 way steering.
Tyre	16/70-20, construction tyre 16/70-20.
Electric	24V. Safety battery cut-off
Tanks	Water tank: 2x350L . Diesel tank: 150L. Hydraulic oil tank: 125L.
Weight	8600kgs
Overall Dimensions	Long: 7.2M Width 2.5M High: 3.3M
Measuring	Electronic weighing system, with a printer. The deviation is less than 5%
