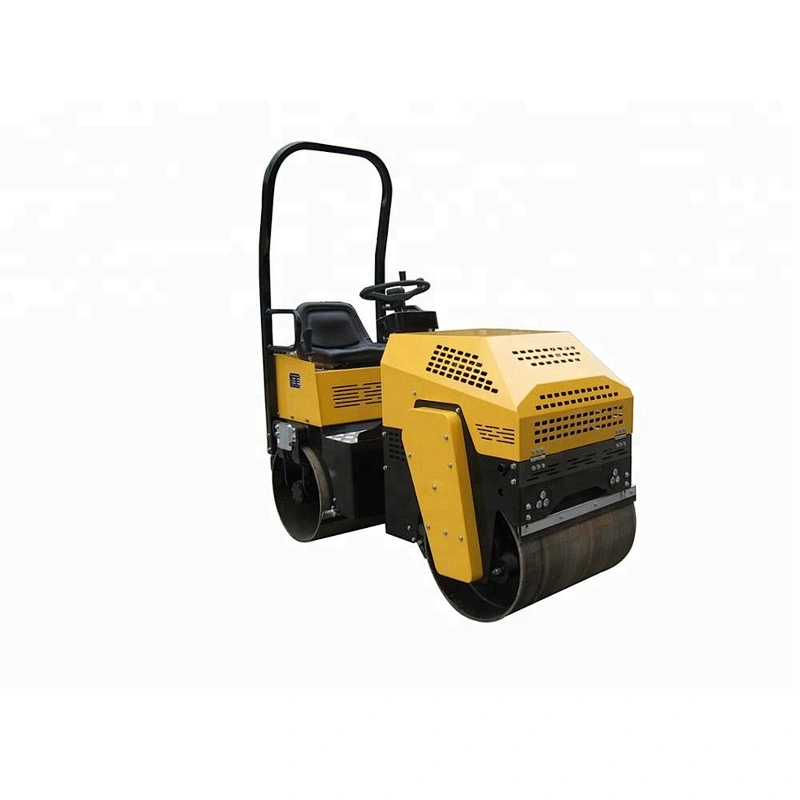

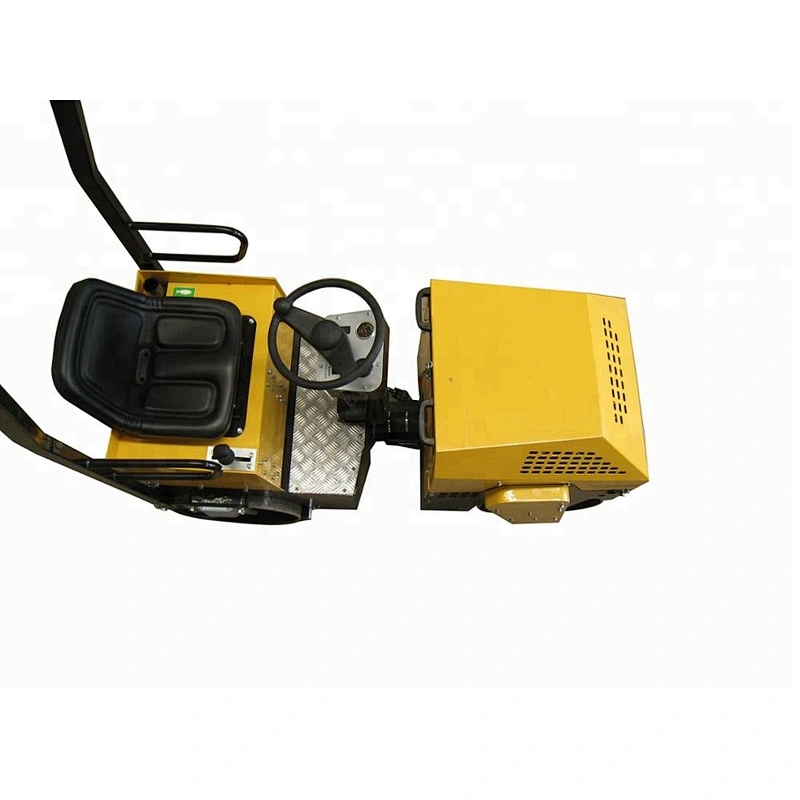

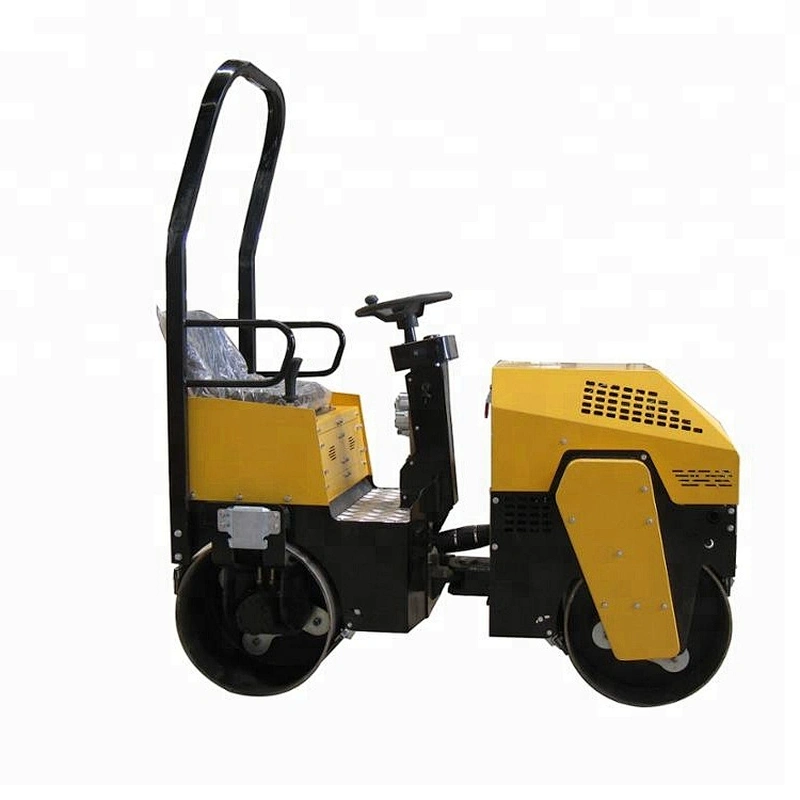

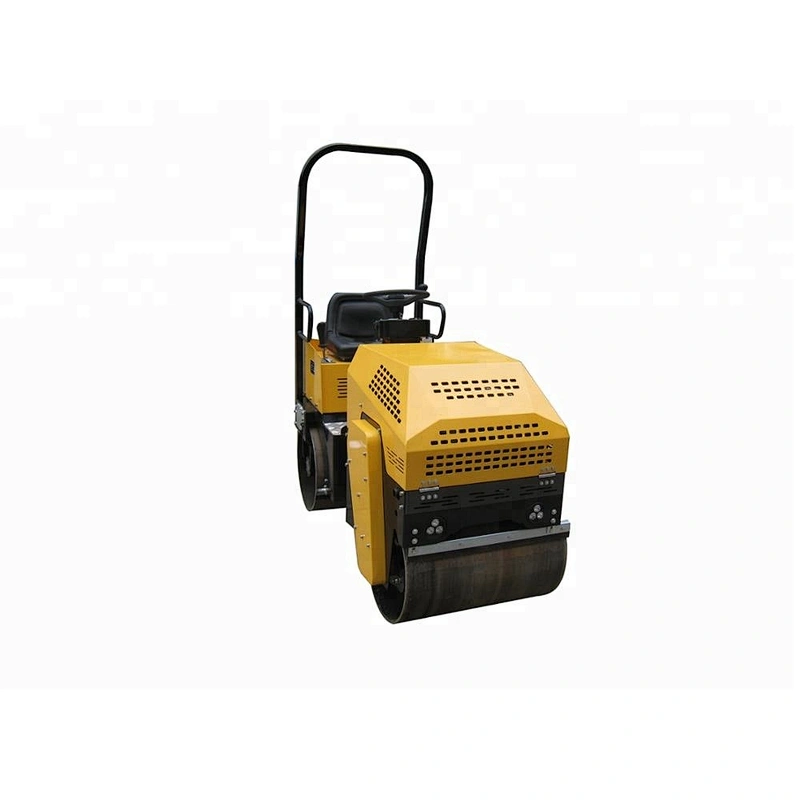

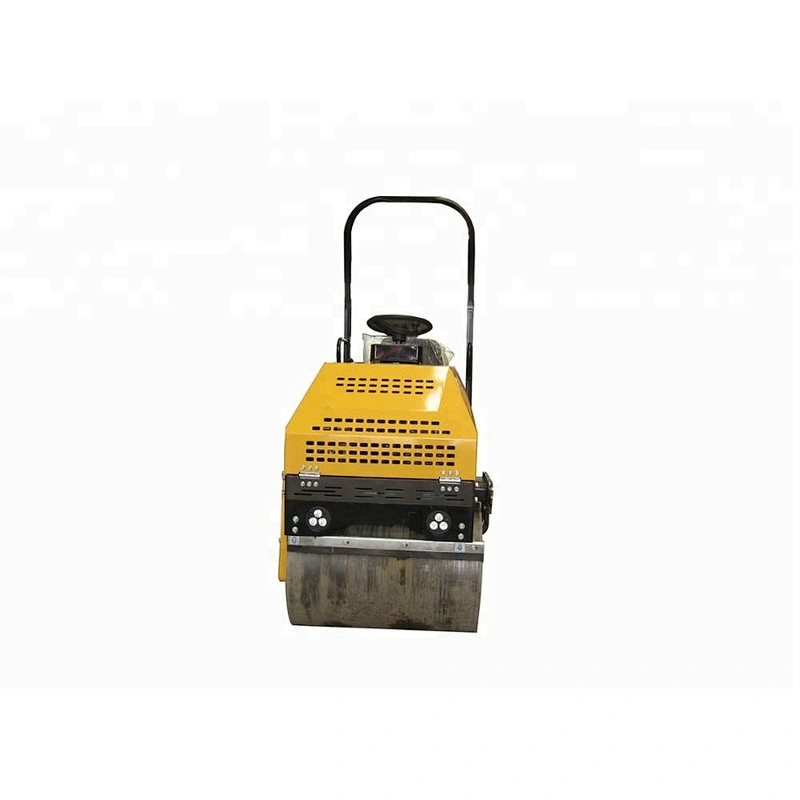

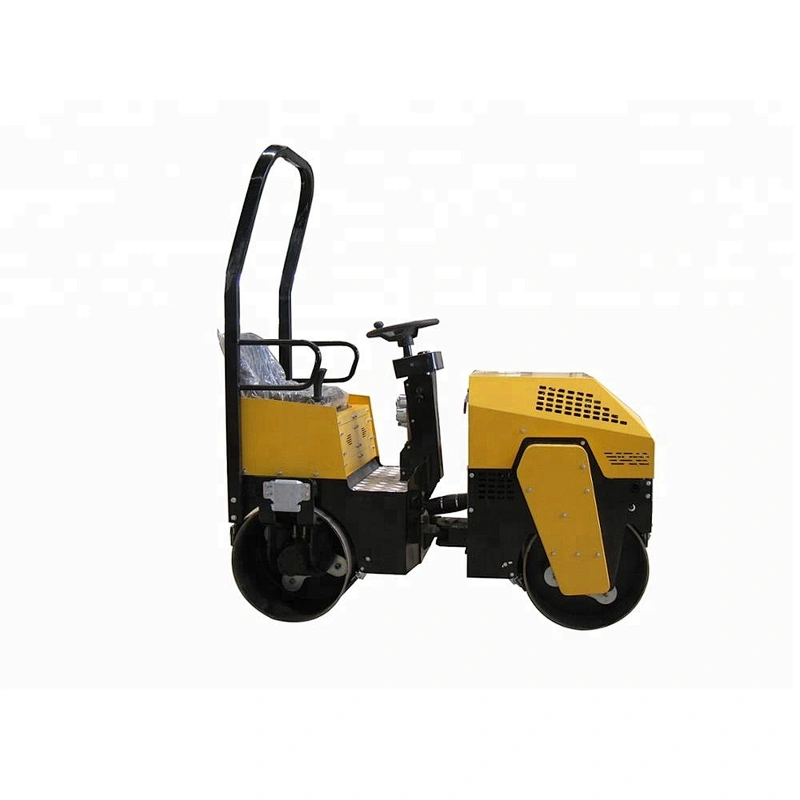

Hydraulic Double Drum Driving Surface Spray Road Roller Compactor
Product Description
YFR-880 mini road roller adopts foreign advanced technology, imported hydraulic motor, imported hydraulic variable pump, stepless speed change, double drive travel, vibration force up to 3 tons, front wheel can be hydraulic steering, with forward and backward handle and left and right steering button, workers can use one hand to complete this machine operation, is so convenient, save time and effort. mini road roller
Technical Parameter
| Model | YFR-880 |
| Walk Speed | 0-5km/h |
| Gradeability | 30% |
| Drive Type | Hydraulic Transmission |
| Wheel Size | φ540*740mm,φ540*800mm |
| Working weight | 1000kg |
| Starting Mode | Hand and Electric |
| Vibration Control | Hydraulic Vibration |
| Static Linear Load | 20/55N/cm |
| Nominal Amplitude | 0.6mm |
| Vibration Frequency | 70Hz |
| Exciting Force | 25KN |
| Water Tank | 60L |
| Hydraulic Oil Tank | 19L |
| Engine Model | Diesel/HONDA GX390 |
| Power | 9HP/13HP |
| Package Size | 2100*1000*1650mm |
