Product overview

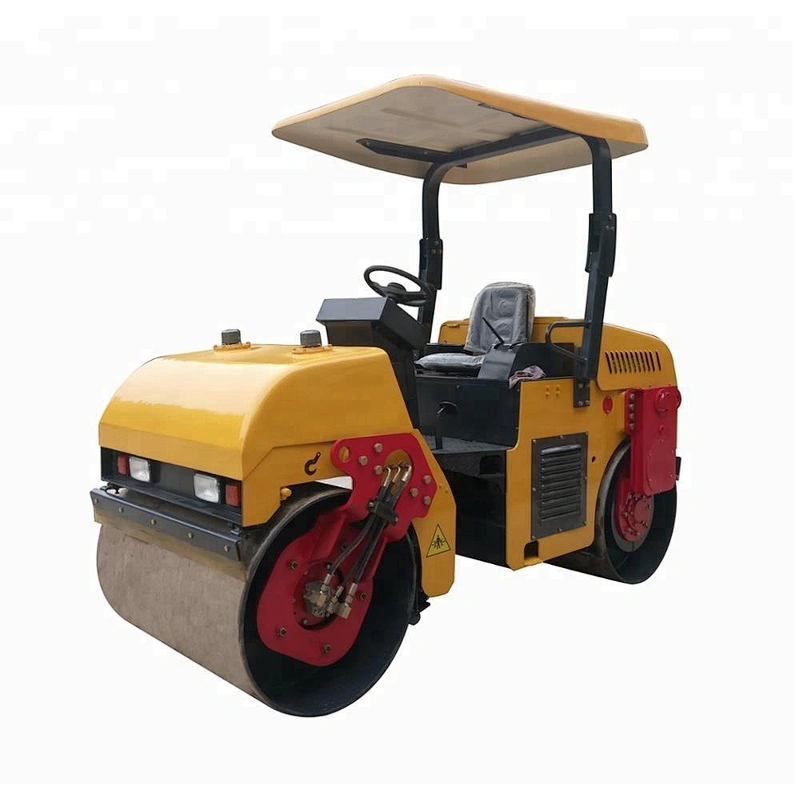

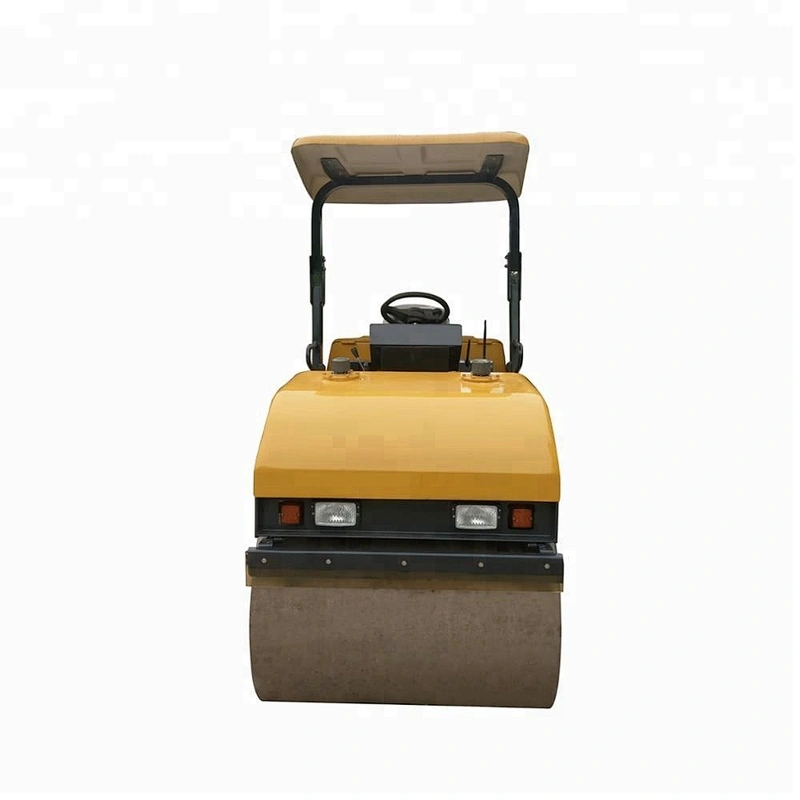

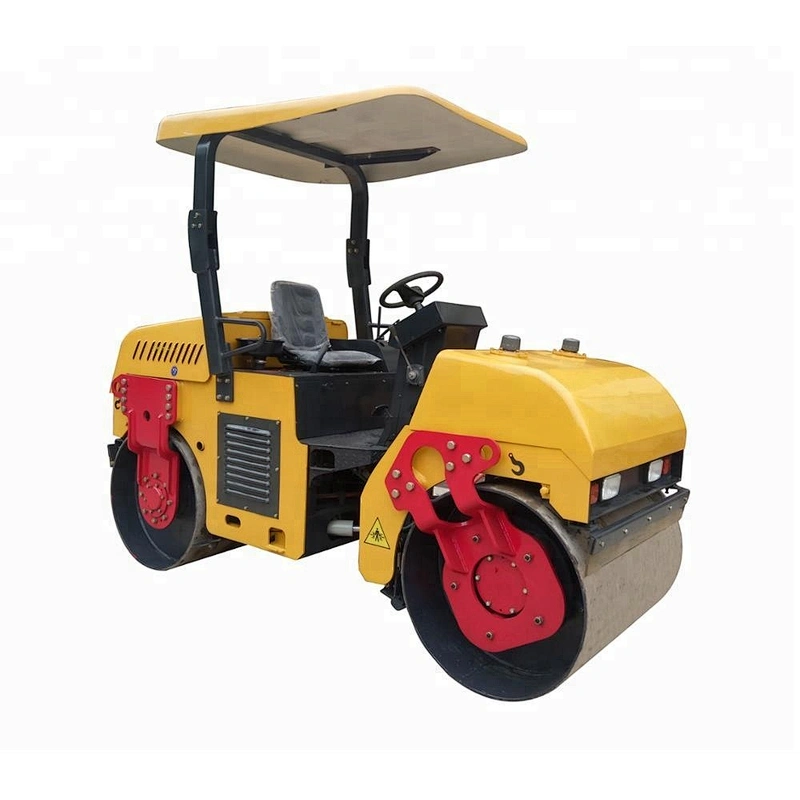

This product is small type double drum hydraulic vibratory roller. Applied to mending maintaining various roads, expressway shoulder, side work, parking area, playground and garden lawn. Especially suitable for compact wayside, pipeline channel and drainage trench and all kinds of grooves backfill.
1. Hydraulic vibrating and steering, Back drive. Adopts Changchai 3 cylinder water-cooling diesel engine, excellent power output.
2. Adopts side gear transmission, less power loss and more efficient.
3. Clamp-type frame is better for fit edge, fit edge height is more than 60cm, higher than road shoulders.
4. Upgrade to oil brake and use new gearbox is more efficient and faster speed.
MODEL | | YFR-3000 |
Operating Mass | kg | 3000 |
Exciting Force | kn | 35 |
Vibration Frequency | Hz | 50 |
Drum Width/Diameter | mm | 1090/780 |
Static Linear Load | N/cm | 120/153 |
Travel Speed | km/h | 2.4/10 |
Gradeability | % | 20 |
Minimum turning radius | mm | 3500 |
Wheelbase | mm | 2150 |
Min. ground clearance | mm | 170 |
Diesel/ Hydraulic tank capacity | L | 60/60 |
Diesel Model | | ZN385 |
Diesel Power | kw | 21 |
Dimension(L×W×H) | mm | 3000x1300x2400 |
