Cheap Price Vibratory Mini Road Roller Compactor
Product Description

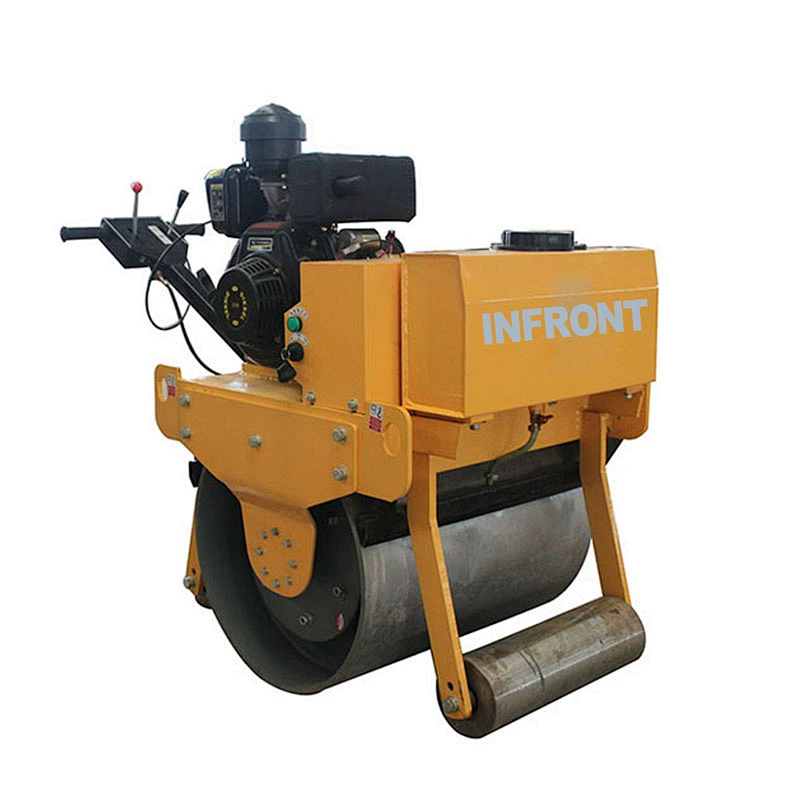

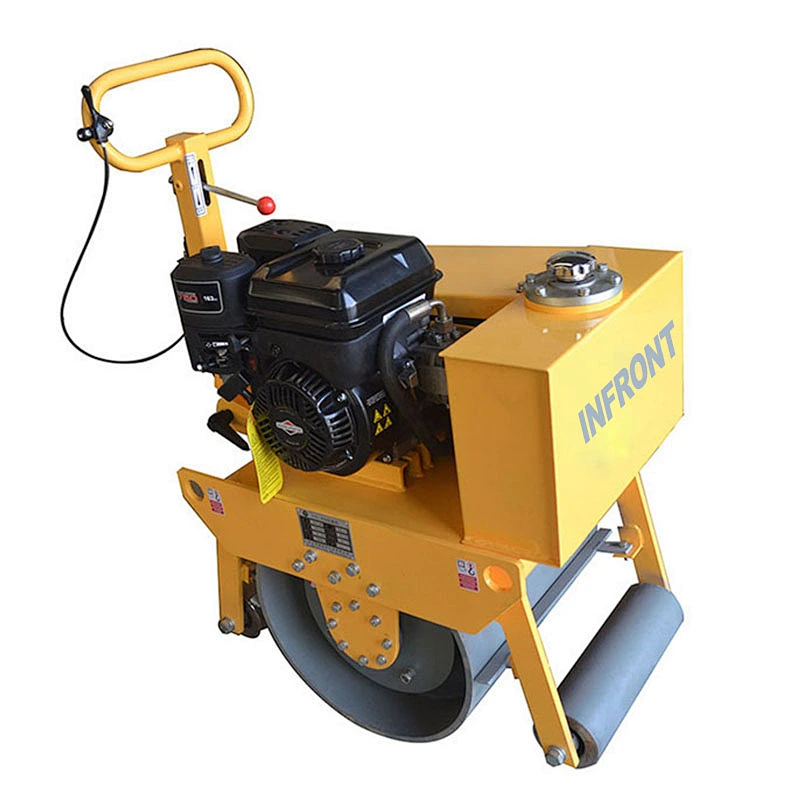

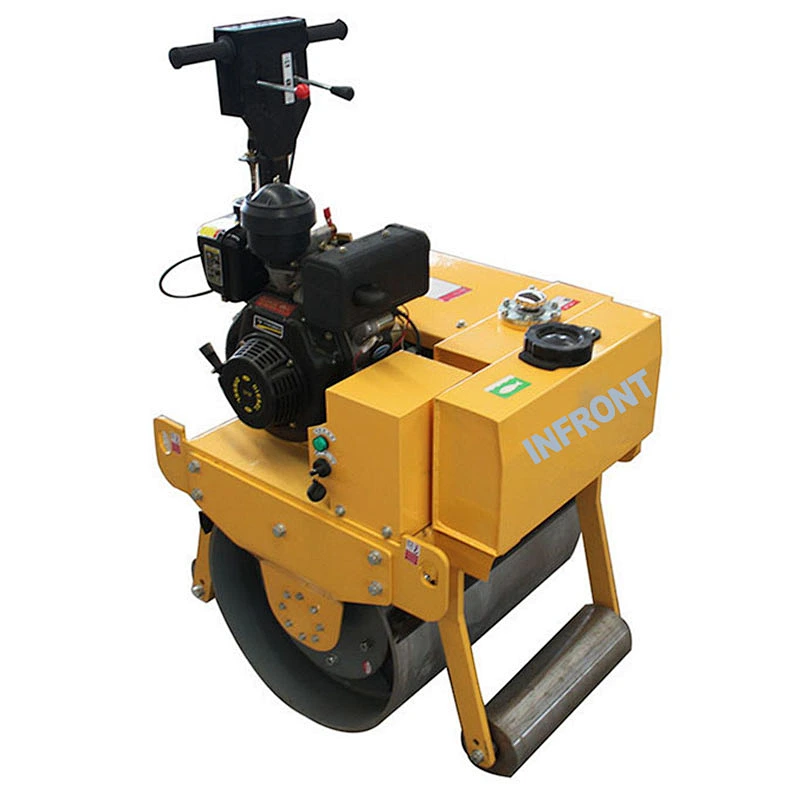

YFR-600 series mini road roller are small-size vibratory roller,used for compacting soil,asphalt surface, gravel, sand and other projects,especially suitable for compaction in narrow areas as pipeline channel and drainage trench etc.
Applied to mending and maintaining various roads, expressway shoulder, roadside , parking area, sports ground and garden lawn.Hand Roller Compactor.
Model | YFR-600 | YFR-600C | YFR-D600 |
Walk Speed | 0-3km/h | 0-3km/h | 0-4km/h |
Climbing Capacity | 30% | 30% | 30% |
Drive | Hydraulic Station | Hydraulic Station | Hydrostatic Drive |
Vibration Control | Automatic Clutch hand roller compactor | Automatic Clutch | Automatic Clutch |
Static linear load | 40N/cm | 40N/cm | 45N/cm |
Nominal amplitude | 0.6mm | 0.6mm | 0.6mm |
Vibration frequency | 70Hz | 70Hz | 70Hz |
Exciting force | 15KN | 15KN | 15KN |
Water tank | 17L | 17L | 18L |
Hydraulic oil tank | 19L pedestrian roller | 19L | 0.3L |
Engine Model | HONDA GX160 | CF178F | HONDA GX160 |
Engine Type | Gasoline | Air-cooled diesel | Gasoline |
Power | 5.5HP | 6.0HP | 5.5HP |
Steel Wheel Size | φ425X600mm | φ425X600mm | φ425X600mm |
Package Size | 1100X1000X1200mm | 1100X1000X1200mm | 1100X1000X1200mm |
Working Weight | 325kg hand roller | 325kg hand roller | 325kg hand roller |
Starting Mode | Hand pedestrian roller | Hand and Electric | Hand |
