Product overview

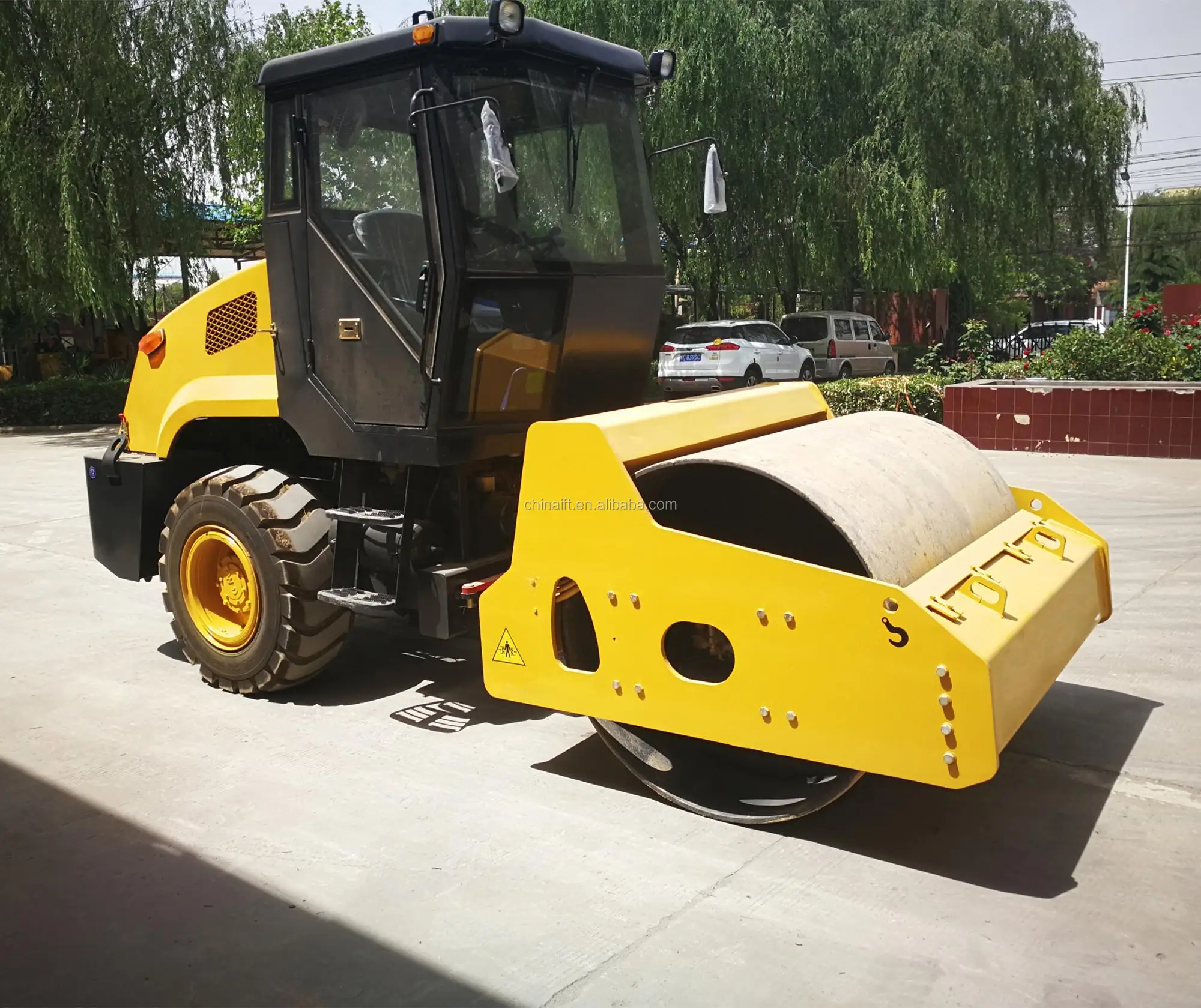

This product is middle type hydraulic vibratory roller. It is mainly used for compacting various construction materials such as non-cohesive soil, sandy soil, graves, macadam aggregate mixtures. Especially suitable for compact community road, village highway, underground garage, playground and all kinds of groove earthwork backfill.
MAIN FEATURES
1. Hydraulic vibrating and steering, hydrotransmitter drive. Adopts 4 cylinder water-cooling diesel engine, excellent power output.
2.Adopts hydrotransmitter,direct andefficient, no clutch and gearbox, easy to operate
3. Adoptswheel-sided reducer rear axle,torque is very powerful. three timesasdurable as
mechanical rear axle.
4. It has high speed mode, save time and tow truck to change work place. Adoptsair pressure oil brake, more reliably and stably.
MAIN PERFORMANCE PARAMETRES
MODEL | | YFR-6000D |
Operating Mass | kg | 6000(with cabin) |
Exciting Force | kn | 85 |
Vibration Frequency | Hz | 44 |
Drum Width/Diameter | mm | 1450/1110 |
Static Linear Load(Front) | N/cm | 210 |
Travel Speed | km/h | 2.5~13.5 |
Gradeability | % | 30 |
Minimum turning radius | mm | 5400 |
Wheelbase | mm | 2350 |
Min. ground clearance | mm | 280 |
Battery Voltage | V | 12 |
Diesel/ Hydraulic tank capacity | L | 85/85 |
Diesel Model | | ZH4102 |
Diesel Power | kw | 47 |
Dimension(L×W×H) | mm | 4350x1650x2700 |
