Nice Working Steel Wheel Small Road Roller For Surface

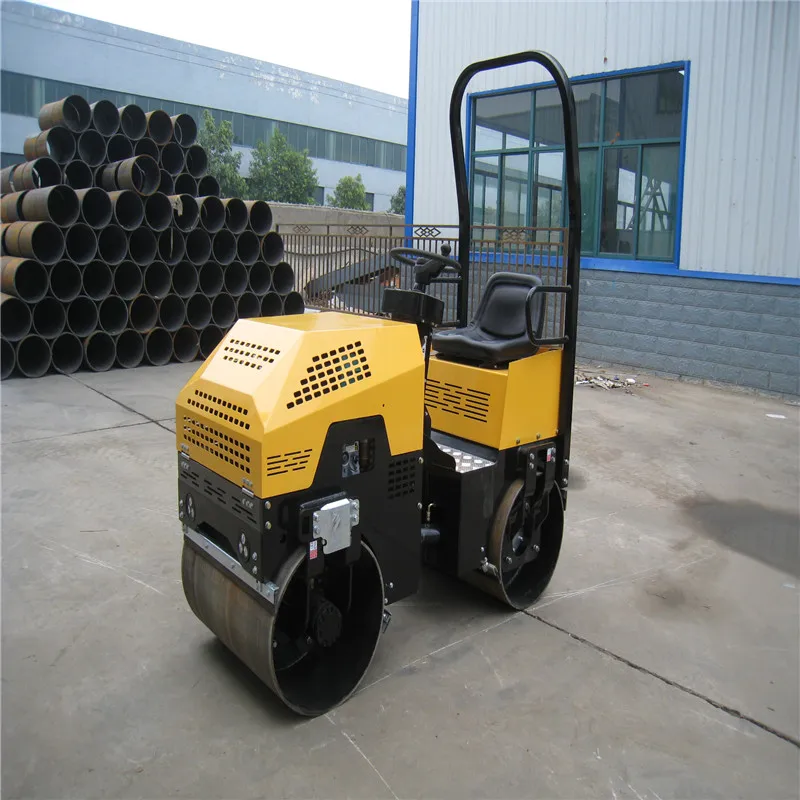

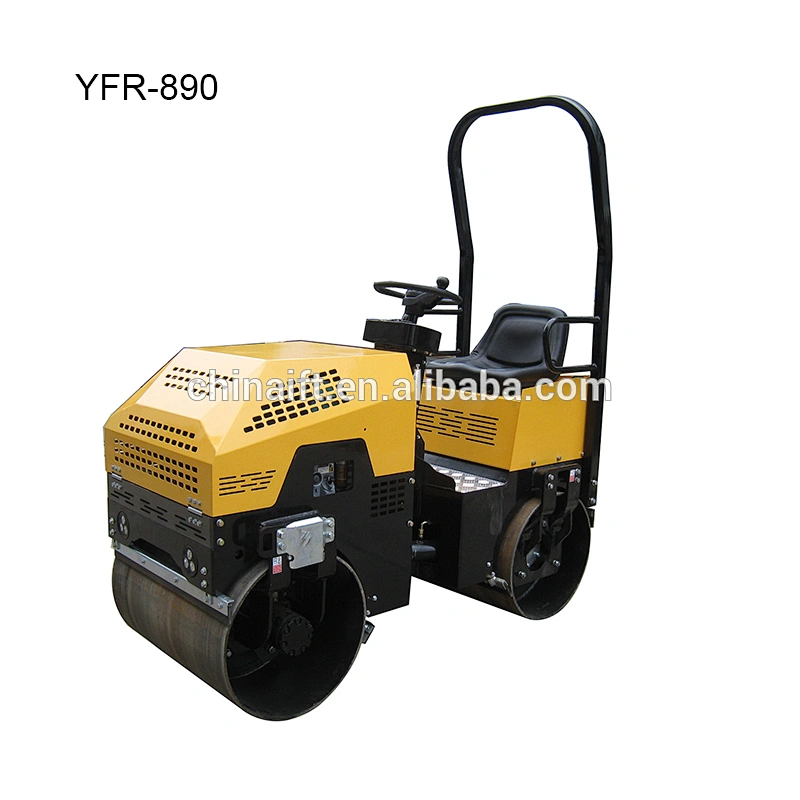

YFR-890 mini road roller adopts foreign advanced technology, imported hydraulic motor, imported hydraulic variable pump, stepless speed change, double drive travel, vibration force up to 3 tons, front wheel can be hydraulic steering, with forward and backward handle and left and right steering button, workers can use one hand to complete this machine operation, is so convenient, save time and effort. mini road roller
Technical Parameter
| Model | YFR-890 | |
Engine Model | Diesel | HONDA GX390 |
Power | 11HP | 13HP |
Walk Speed | 0-6.5km/h | |
Gradeability | 35% | |
Drive Type | Hydraulic Double Drive | |
Vibration Type | Hydraulic Vibration | |
Static Linear Load | 56N/cm | |
Nominal Amplitude | 0.5mm | |
Vibration Frequency | 70HZ | |
Exciting Force | 28KN | |
Water Tank | 60L | |
Hydraulic Oil Tank | 35L | |
Steel Wheel Size | Φ540*800mm*2 | |
Working Weight | 1000kg | |
Starting Mode | Electric | |
Package Size | 2100*1000*1650mm | |
Ground clearance | 235mm | |
Turning radius | 1420mm | |
