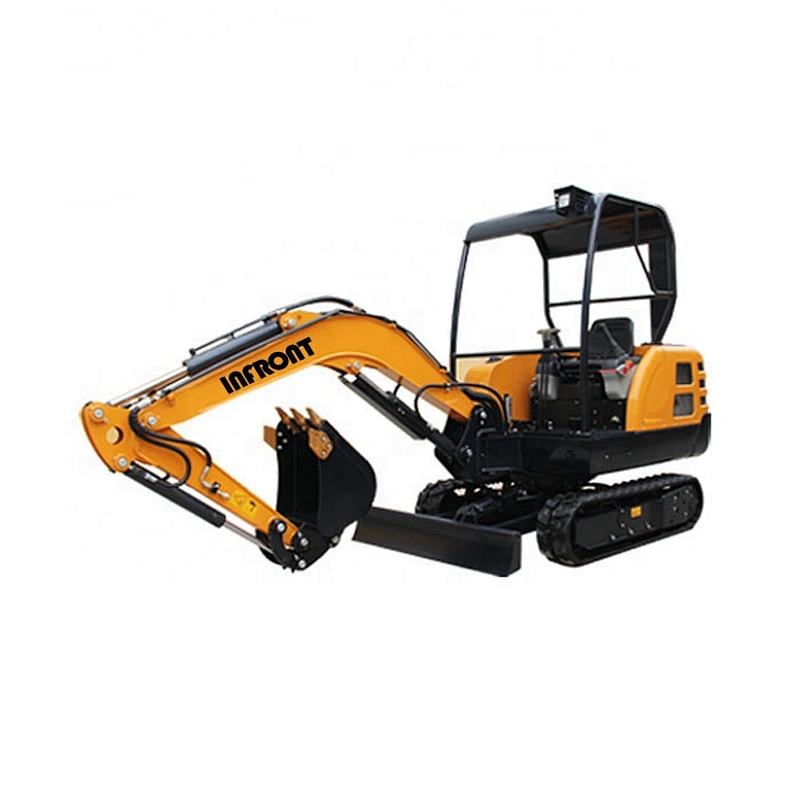

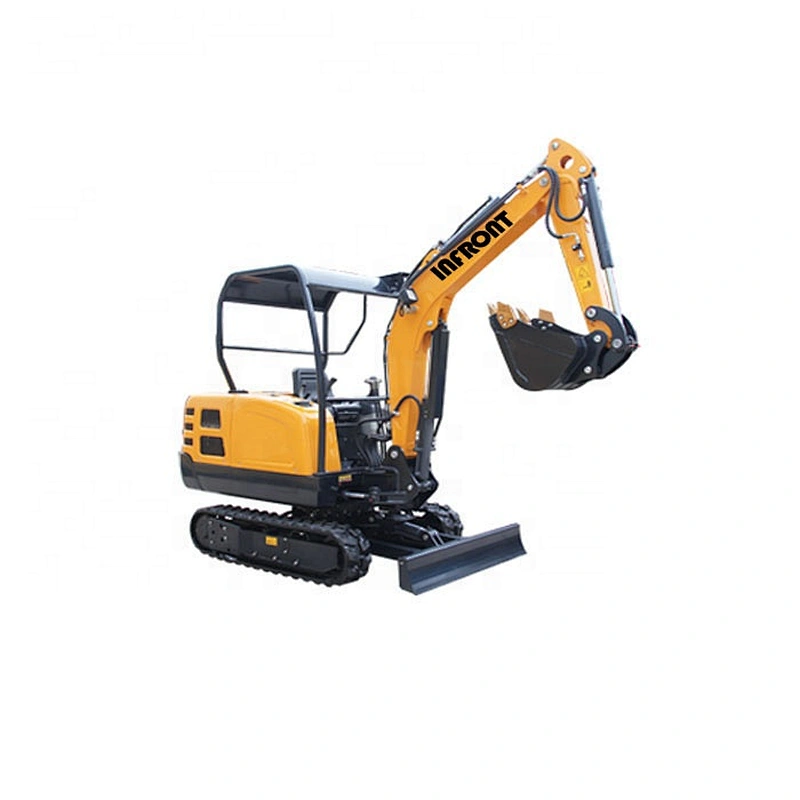

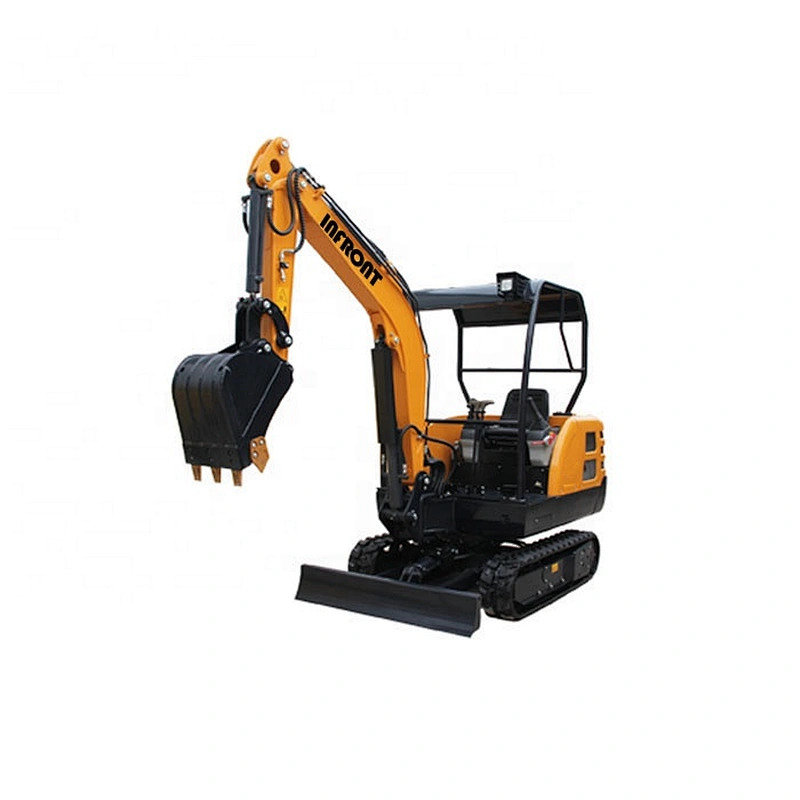

YFE20 excavator digging with 2.0tons hot saling
This excavator is designed for small works, small projects, in garden, farmland, municipal works,vegetable greenhouse, digging trench It is with brand engine and imported pump and valve,easy to maintain.
Operating Weight | 2000kg |
Digging bucket capacity | 0.05cbm/500kg |
Digging bucket width | 420mm, can add narrow bucket is 200mm |
Engine | (3TNV70-S) |
Rated power | 10kw/2200/r/min |
Displacement | 0.854L |
Bore stroke | three cylinder, water cool |
Main pump | KDK |
Pump flow | 23.3L/Min |
Hydraulic oil tank capacity | 15.3L |
Engineoil tank capacity | 2.8(1.3)L |
Diesel tank capacity | 19 L |
Valve | BEIFANG |
Displacement | 6.8ml/r |
Swing motor | EATON |
Traveling motor | |
MAIN DEMENSIONS | |
Overall dimension( LxWxH) | |
Total length of track on land | 1590mm |
Platform ground clearance | 473 mm |
Platform back turning radius | 740 mm |
Chassis width | 990 mm(retract)/ 1240mm(extended) |
Track width | 230 mm |
Chassis ground clearance | 460 mm |
Bucket digging force | 13.5kn |
Arm digging force | 10.1kn |
Theoretical Maximum traction | 17.5Kn |
Ground specific pressure | 32.8KPA |
Track height | 360 mm |
Swing boom to left | 390 mm |
Swing boom to right | 510 mm |
The engine adopts Yanmar engine (optional laidong engine), there are many service outlets, convenient maintenance, low fuel consumption, low noise.
The nachi piston variable pump imported from Japan is used to make the big arm, the small arm and the rotary form an independent hydraulic system, which realizes fast, smooth and powerful operation.
Excavator Optional accessories:
Based on domestic and abroad e-commerce platform, Jining Infront Construction Machinery Co.,Ltd is a professional international trading company, which is entitled to import and export rights and specialized in cross-border online sales of large-scale construction machine and related spare parts.
Our main products are Bulldozer, Excavator, Compactor, Motor grader, Wheel loader, Road machine and related spare parts, which meet domestic trade of more than thirty provinces, cities and municipalities, and also exported to Europe, Africa, America, Russia, etc.
We promised to provide you with the first-class items and service, to build the first-class team, to create first-class values and to establish first-class enterprise image. We believe that we are able to be the main force of construction machinery field by the effort of all of our staff. Let’s seize the chance for a better future!
Name:Janice
Mobile phone: + 86 15053767299
Wechat&skype:+ 86 15053767299
QQ :2159861078
Welcome your inquiry soon! We can offer our best service!
