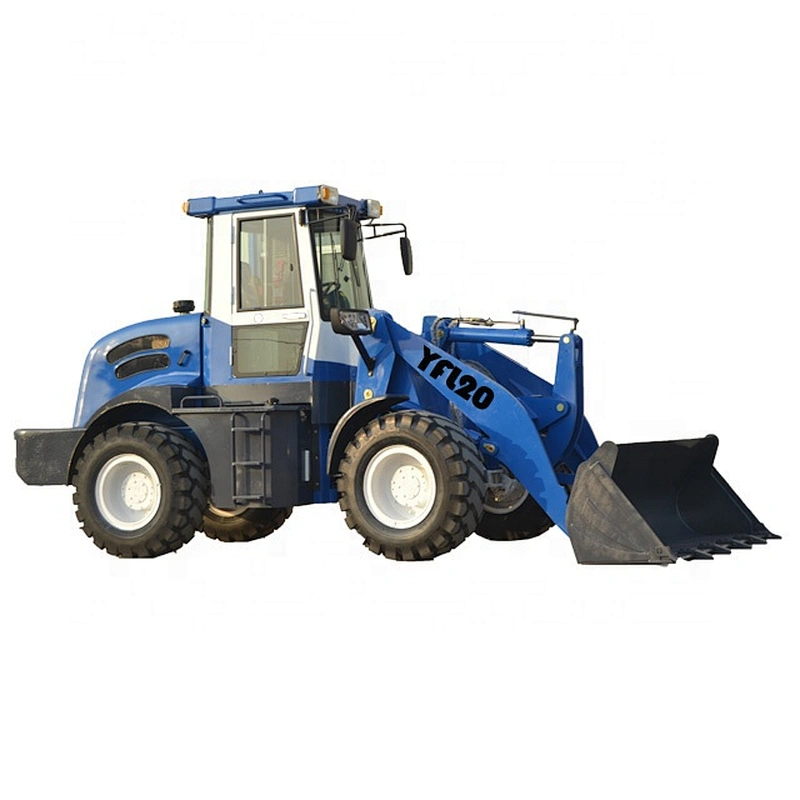

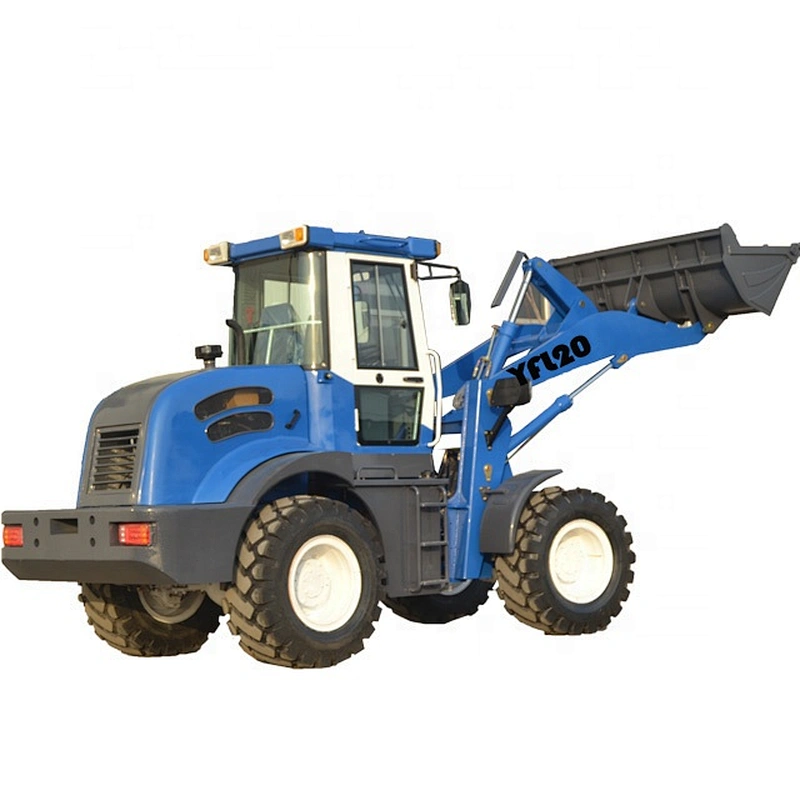

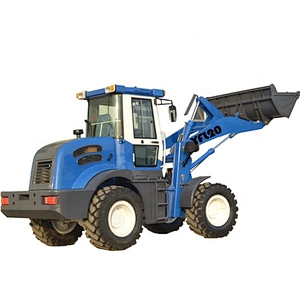

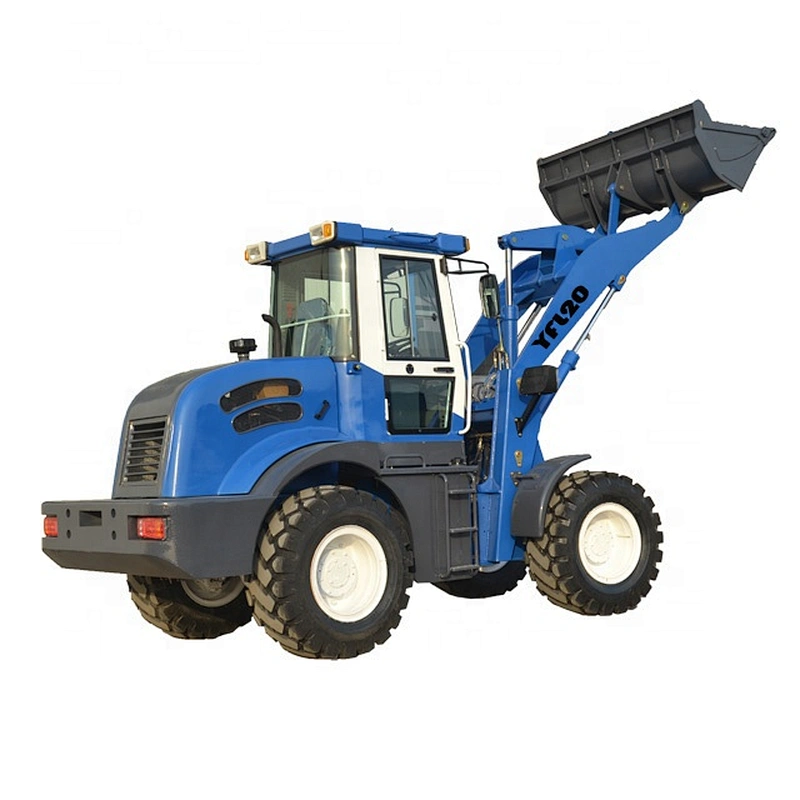

2tons rated China wheel loader small YFL20 for sale
YFL20 Wheel loader spec | ||
Bucket capacity (m³) | 1.0-1.2 | |
Machine weight (kg) | 5000 | |
Bucket width (mm) | 2090 | |
Rate loader (kg) | 2000 | |
Brake mode | Four wheel disc brake | |
Driving mode | four-wheel drive | |
Overall size (mm)(L*W*H) | 5633*2090*2890 | |
Maximum rise(KN) | 46 | |
Forward stall 1(km/h) | 0-12 | |
Forward stall 2(km/h) | 0-25 | |
Back stall (km/h) | 0-25 | |
Maximum unloading height(mm) | 2850 | |
Maximum unloading distance(mm) | 850 | |
Minimum turning radius(mm) | 4822 | |
Bucket lift time(s) | 4.5 | |
Total hydraulic cycle time(s) | 9 | |
Tread width(mm) | 1500 | |
Wheelbase (mm) | 2200 | |
Minimum ground clearance(mm) | 230 | |
Maximum climbing height(°) | 30 | |
Engine | Model | YUNEI POWER |
Type | Inline, 4-stroke, water-cooled, 4-cylinder engine | |
Rated power (kw) | 55-60 | |
Rated speed (rpm) | 2400 | |
Starting mode | Electric | |
Transfer method | Fixed axis torque converter | |
Tire | 16/70-20 | |
Turning system | Working pressure(Mpa) | 10 |
Turning system | Articulated frame, hydraulic power turn | |
Maximum turning angle(°) | 35 | |
Working hydraulic system | Tire pressure(Mpa) | 2.5-3.5 |
Working pump type | Gear pump | |
Work pressure(Mpa) | 16 | |
Brake system | Driving | Four wheel disc brake |
Stopping | Handbrake | |
