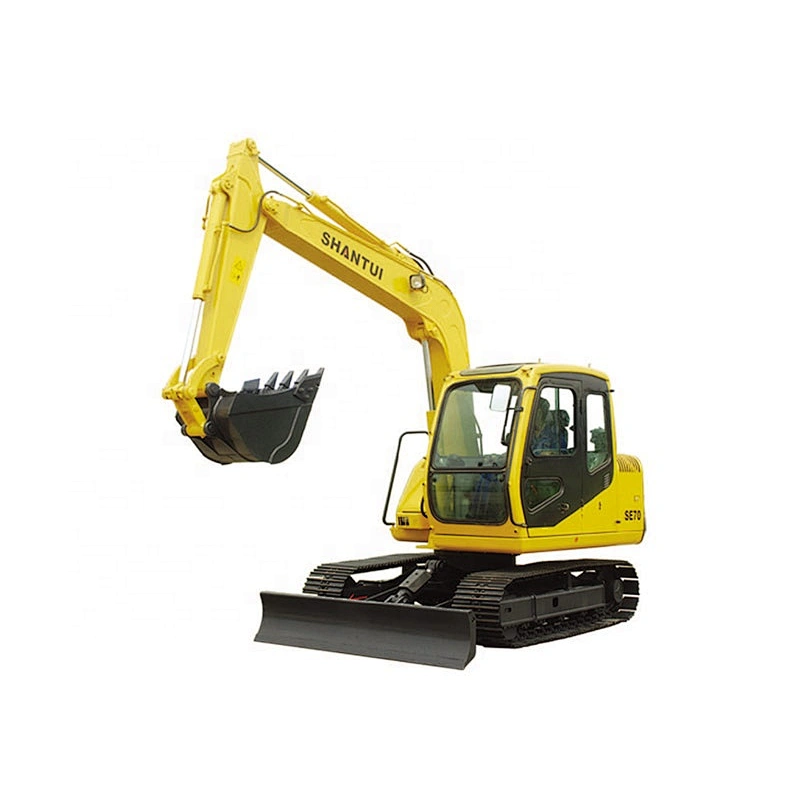

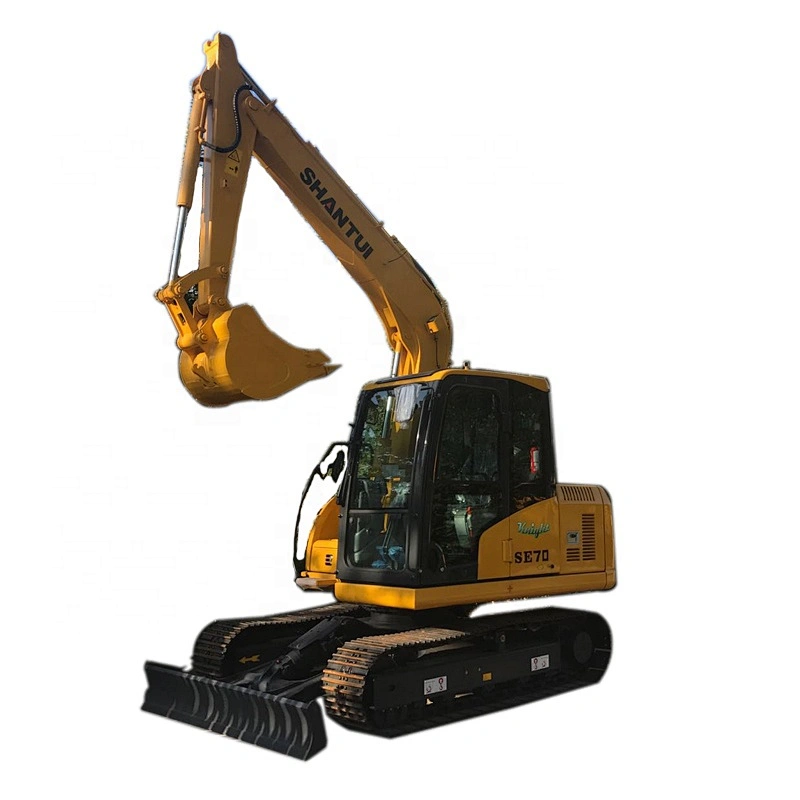

6tons Shantui SE60 mni crawler excavator for sale
| The engine systme | |
| The engine cooling system | cool -watering |
| The type | Kubota V3307T |
| cylinders *diameter *trip(mm) | 4*94*120 |
| The displacement(L) | 3.3 |
| Rated power(kw/rpm) | 48.9/2000 |
| The bucket | |
| The capacity of bucket(m³) | 0.32 |
| The width of bucket(mm) | 860 |
| Digging force | |
| Arm digging force(kn) | 44 |
| Bucket digging force(kn) | 66 |
| The walking system | |
| The Walking motor | The axial variable |
| The number of the segments | 2*39 |
| The walking speed(km/h) | 2.9/4.8 |
| The traction(KN) | 63 |
| The climbility ability | 70%(35°) |
| The track roller number | 2*5 |
| Drag chain number | 2*1 |
| The hydraulic system | |
| The hydraulic types | Variable double column |
| The rated working flow | 2*160 |
| Walking circuit pressure(Mpa) | 35 |
| Rotary loop pressure(Mpa) | 23.5 |
| Pressure control loop(Mpa) | 3.5 |
| Rotary system | |
| The rotary speed(r/min) | 11 |
| The brake type | Pressure release,Mechanical brake |
| The oil capacity | |
| Fuel tank capacity(L) | 120 |
| The cooling system (L) | 11 |
| Amount of engine oil(L) | 11 |
| The hydraulic oil tank(L) | 140/160 |
| The weight and the ground pressure | |
| The weight(kg) | 7650 |
| the ground pressure(Kpa) | 34 |
| The size | |
| The length | 6240 |
| Grounding length(Traveling) | 3750 |
| The height (to the arm) | 2660 |
| The width | 2260 |
| The height (to the top driving room) | 2680 |
| Configuration from the ground clearance | 825 |
| The minimum clearance from the ground | 385 |
| The tail radius of gyration | 1880 |
| Wheel distance | 2195 |
| Track length | 2820 |
| The pithch | 1800 |
| Track width | 2250 |
| Track shoe width | 450 |
| The cover height | 1755 |
| Slewing platform width | 2230 |
| Rotary center distance to the backend | 1850 |
| The working scape | |
| The largest digging height | 6945 |
| Maximum discharge height | 4895 |
| The largest digging depth | 4120 |
| The largest vertical digging depth | 3620 |
| The largest digging depth when Eight feet | 3770 |
| The largest digging distance | 6360 |
| The largest digging distance on ground | 6205 |
| The work device of minimum radius of gyration | 2040 |
Based on domestic and abroad e-commerce platform, Jining Infront Construction Machinery Co.,Ltd is a professional international trading company, which is entitled to import and export rights and specialized in cross-border online sales of large-scale construction machine and related spare parts.
Our main products are Bulldozer, Excavator, Compactor, Motor grader, Wheel loader, Road machine and related spare parts, which meet domestic trade of more than thirty provinces, cities and municipalities, and also exported to Europe, Africa, America, Russia, etc.
We promised to provide you with the first-class items and service, to build the first-class team, to create first-class values and to establish first-class enterprise image. We believe that we are able to be the main force of construction machinery field by the effort of all of our staff. Let’s seize the chance for a better future!
