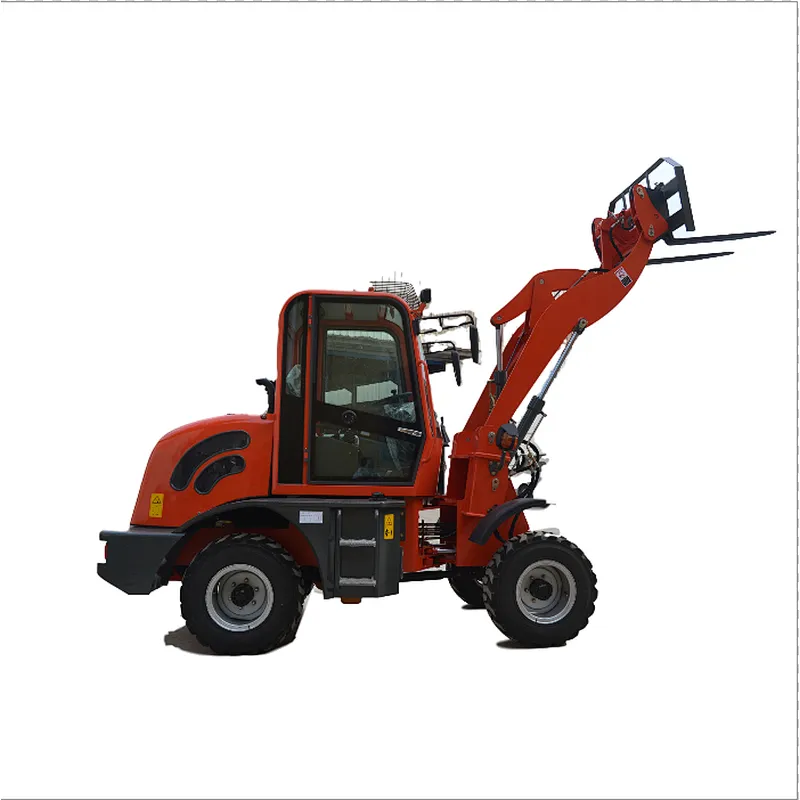

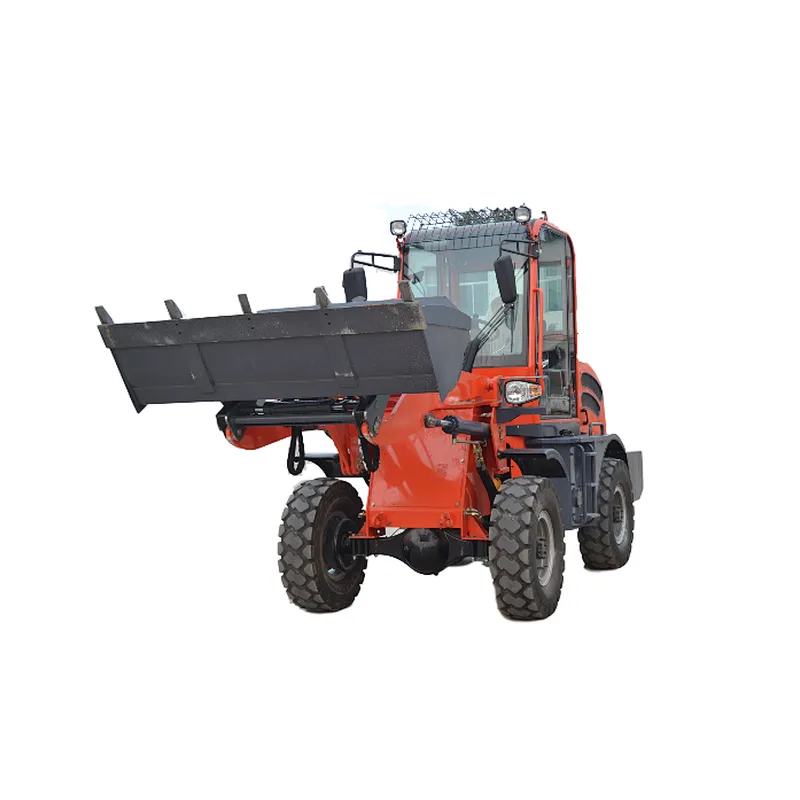

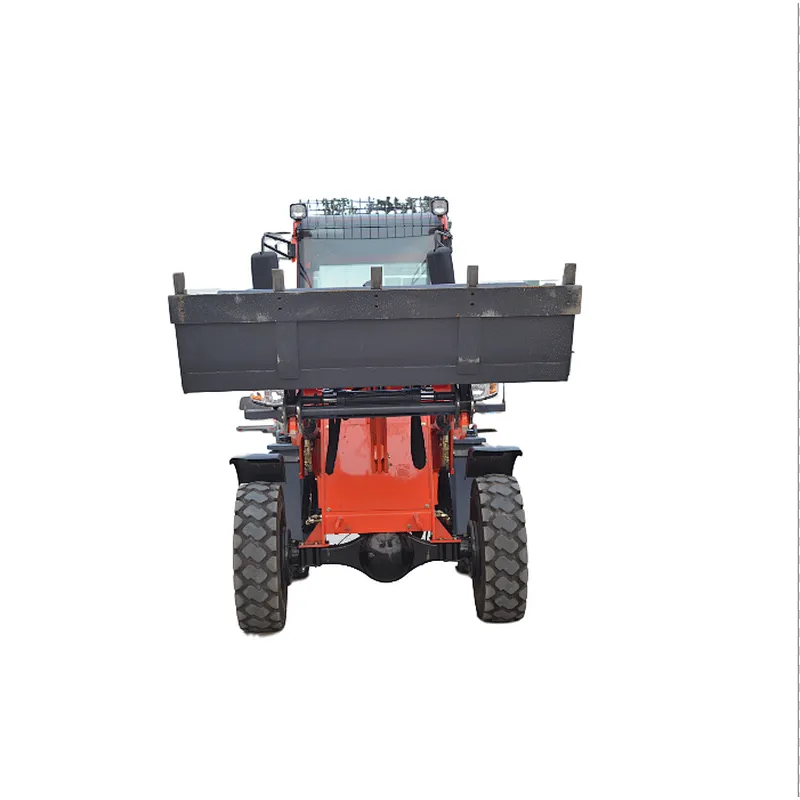

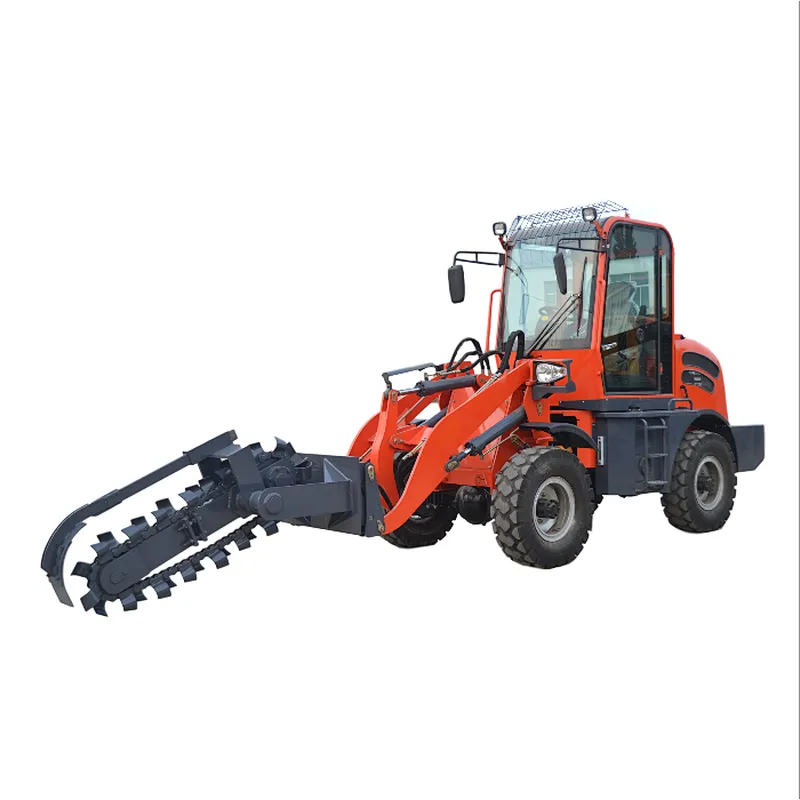

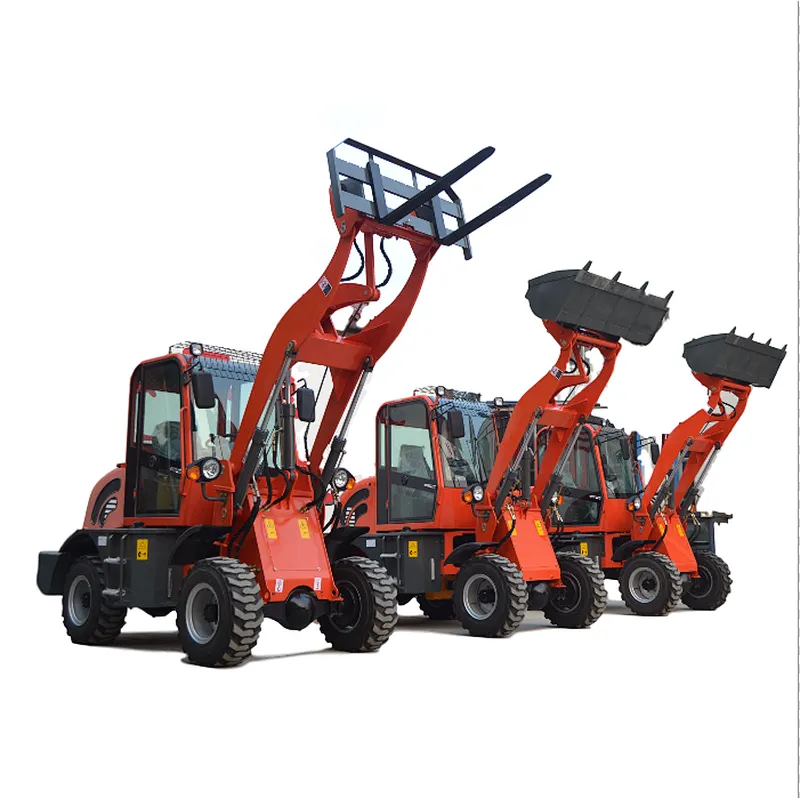

China supplier small loader YFL12 best price for sale
Specifications of HR912 compact wheel loader
Specification | Operate weight(kg) | 3000-3100 |
Overalldimensions(L×W×H)mm | 4700×1500×2500mm(2300mm) | |
Rated bucket capacity(m³) | 0.6 | |
Rated load(kg) | 1200 | |
Dump height (mm) | 2300 | |
Dump distance(mm) | 700 | |
Wheelbase(mm) | 2100 | |
Thread(mm) | 1405 | |
Total time | 11s | |
Engine | Model | CHANGCHAI490 |
Optional model | FAW 37kw XICHAI 490 engineor XINCHAI C490BPG 36.8kw Tier 3 engine or KOHLER/CUMMINS/PERKINS/YANMAR CE or EPA engine | |
Type | Direct injection, horizontal, water-cooled, four stroke, four cylinder | |
Rated power(KW) | 38 | |
Steering system | Type | Articulated Frame with hydraulic power steering |
Max. turning angle | 30°±1 | |
Min turning radius(mm) | 3400 | |
Hydraulic System | Working Pump Type | Gear pump |
Working Pressure (Mpa) | 16 | |
Tire | Standard tire | 1200-16 or 14/90-16 |
Optional tire | 12-16.5 or 31*15.5-15 tubeless tire | |
Transmission | Type | Hydraulic transmission(gearbox+ torque converter) |
Brake System | Service Brake | Four Wheel Hydraulic drum brake |
Parking Brake | Disc brake | |
Package | 1 unit with cab packed into 20GP; 2 units without cab packed into 20GP; 4 unitswith cab packed into 40HQ. | |
Warranty | 12 months after delivery or 1500 work hours(whichever comes first) | |
Delivery time | 15-25 days after 30% down payment. | |
Based on domestic and abroad e-commerce platform, Jining Infront Construction Machinery Co.,Ltd is a professional international trading company, which is entitled to import and export rights and specialized in cross-border online sales of large-scale construction machine and related spare parts.
Our main products are Bulldozer, Excavator, Compactor, Motor grader, Wheel loader, Road machine and related spare parts, which meet domestic trade of more than thirty provinces, cities and municipalities, and also exported to Europe, Africa, America, Russia, etc.
We promised to provide you with the first-class items and service, to build the first-class team, to create first-class values and to establish first-class enterprise image. We believe that we are able to be the main force of construction machinery field by the effort of all of our staff. Let’s seize the chance for a better future!
Name:Janice
Mobile phone: + 86 15053767299
Wechat&skype:+ 86 15053757299
QQ :2159861078
Welcome your inquiry soon! We can offer our best service!
