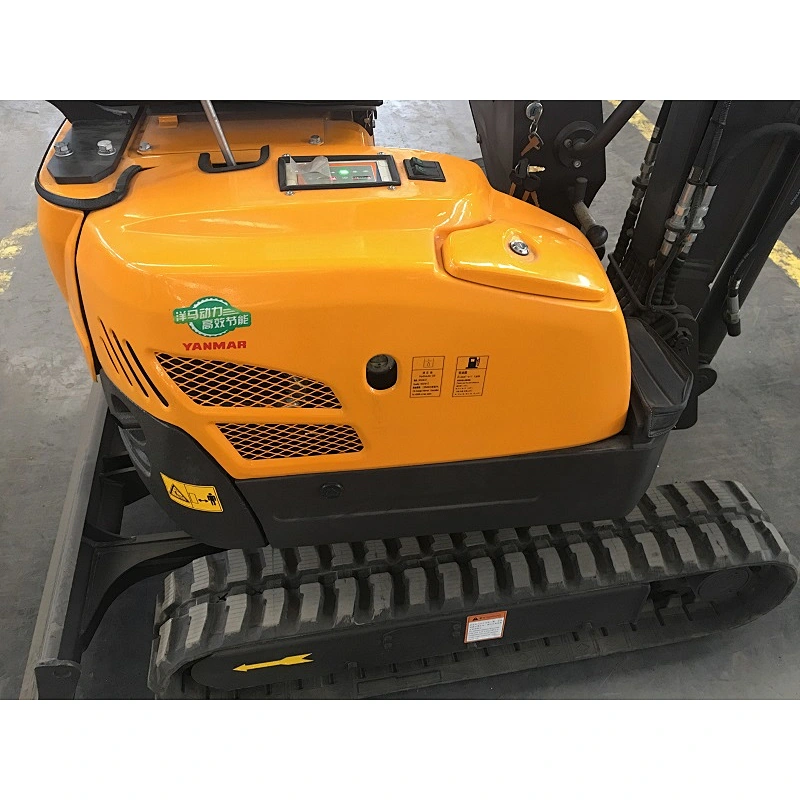

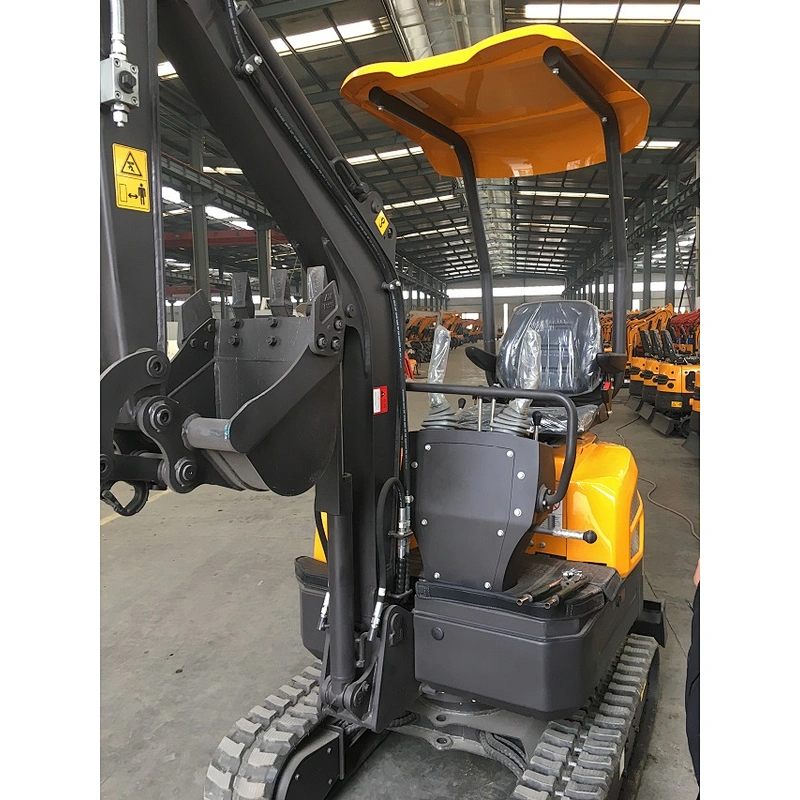

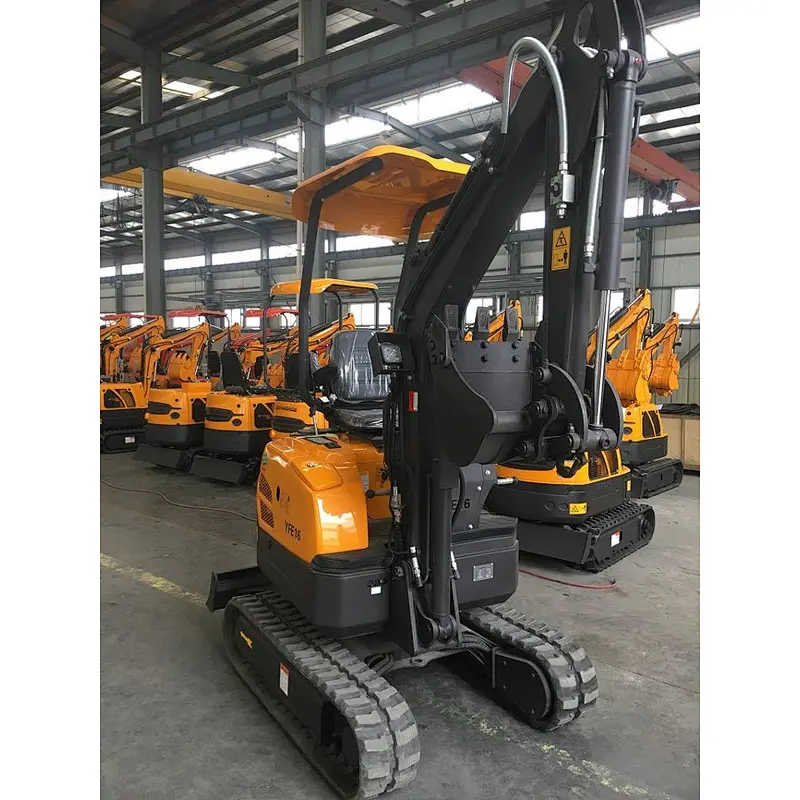

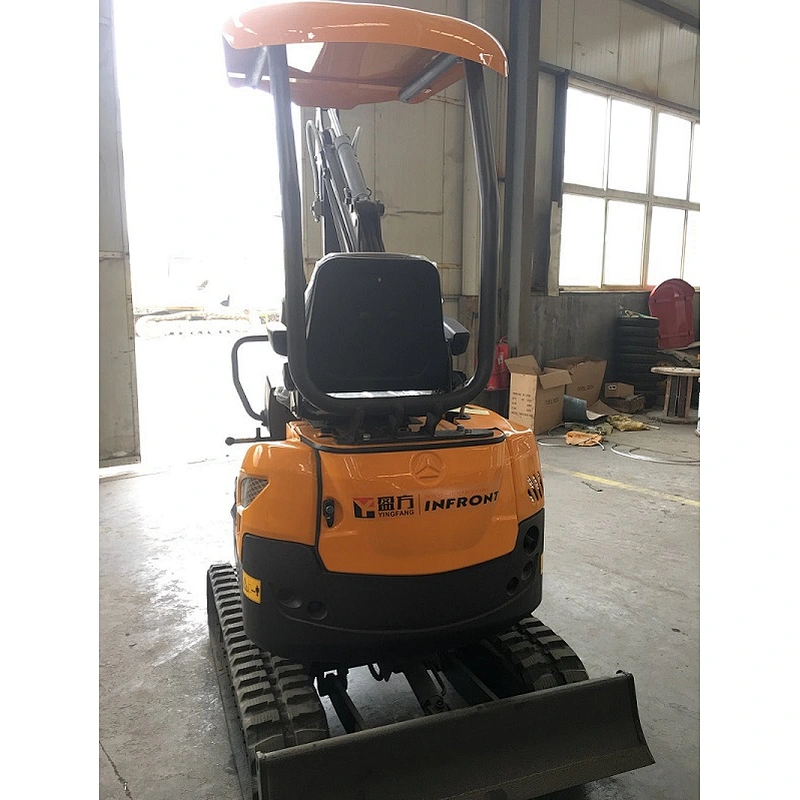

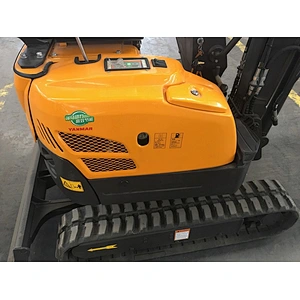

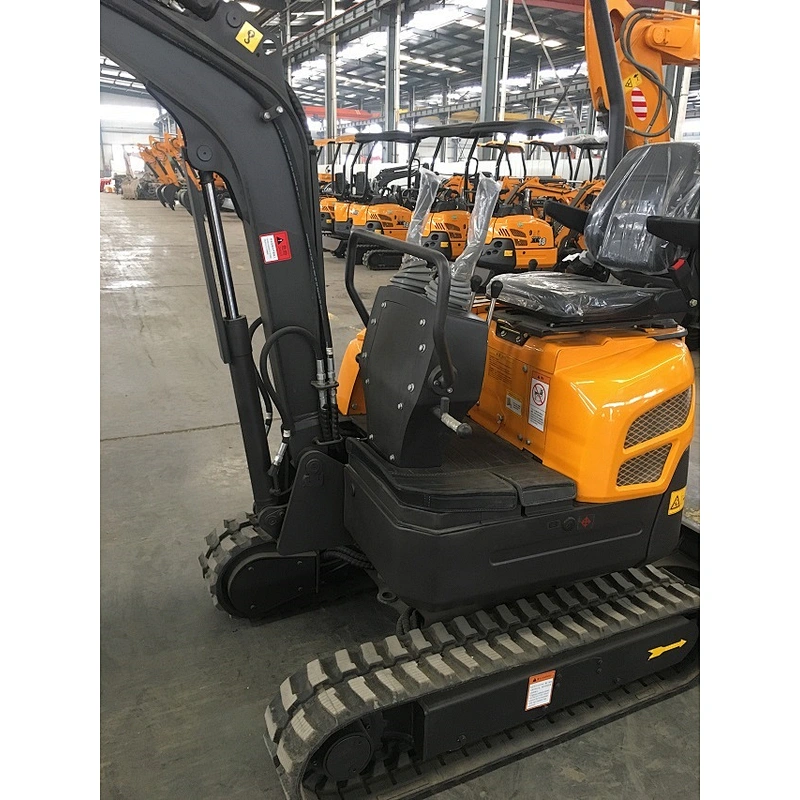

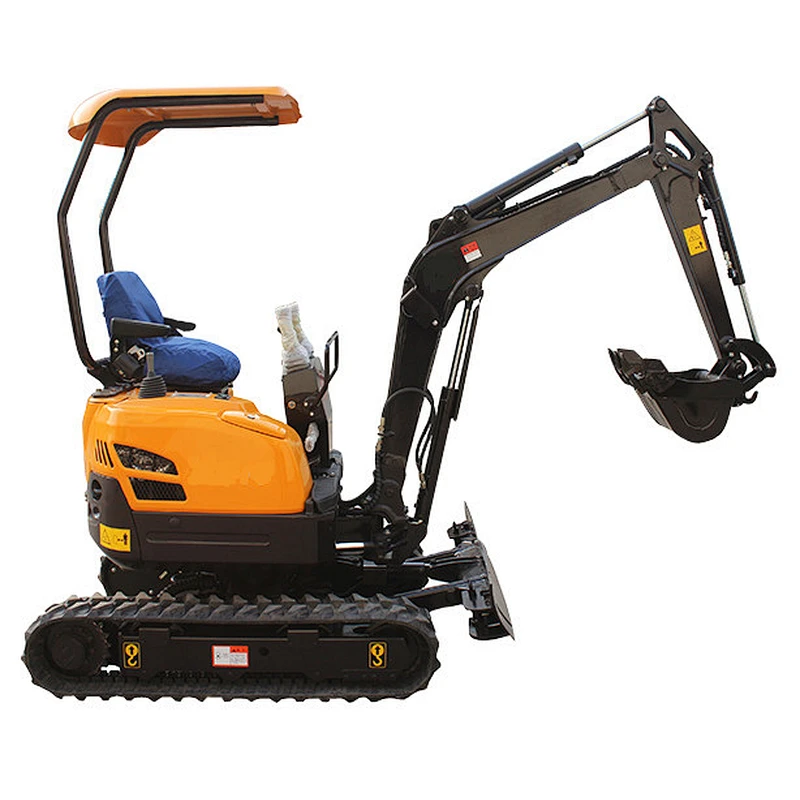

Small digger 1.6 ton mini excavator mini Crawler Excavator with CE and EPA Certification

Small digger 1.6 ton mini excavator mini Crawler Excavator with CE and EPA Certification

Price:: USD 11000.00-12000.00 / parcel
Delivery: FOB
Minimum order quantity: 1 parcel
Supply Ability: 1000 parcel / Month
Country of Origin: Shanghai,QIngdao, Tianjin

Quantity:

Product Description
Basic Information

Small digger 1.6 ton mini excavator mini Crawler Excavator with CE and EPA Certification

Hello!

Welcome to browsing our company products!

YF series mini hydraulic crawler excavator has the feature of higher efficiency,lower fuel consumption and easy operating etc. It is multi-functional with many attachment can be installed such as breaker hammer,auger,wood grabber,ditcher etc.It can be widly used in various narrow space works such as private garden,farm,underground park works and urban construction.It walks by rubber crawler tracks and has advantage of protecting road,reducing noise and fast speed. Steel crawler track also can be installed for special enviroment.

Product Description

Small digger 1.6 ton mini excavator mini Crawler Excavator with CE and EPA Certification

SPECIFICATION:

Model	YF16
Manufacturer	SHANDONG RHINOCEROS ENGINEERING MACHINERY CO.,LTD
Brand	RHINOCEROS
Operating Weight	1600kg
Digging bucket capacity	0.045cbm/400kg
Digging bucket width	400mm, can add narrow bucket is 200mm
Engine	Yanmar (3TNV70-S)
Rated power	10kw/2200/r/min
Displacement	0.854L
Bore stroke	three cylinder, water cool
Main pump	KDK
Valve	BEIFANG
Displacement	6.8ml/r
Swing motor	EATON
Traveling motor	DONGHYUAN

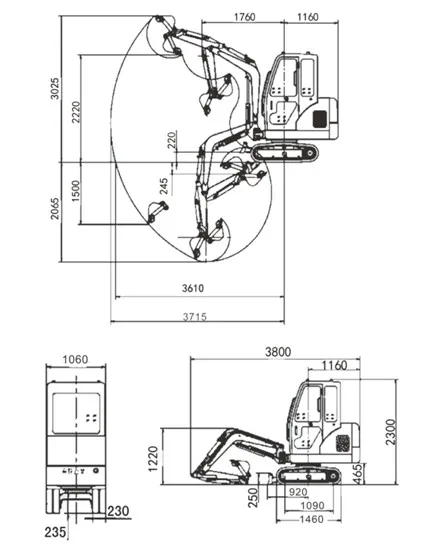

MAIN DEMENSIONS
Overall dimension( LxWxH)	3160x1040x2377mm
Total length of track on land	1670mm
Platform ground clearance	460 mm
Platform back turning radius	740 mm
Chassis width	1040 mm
Track width	180 mm
Chassis ground clearance	460 mm
Bucket digging force	10.5kn
Arm digging force	6.5kn
Track height	320 mm
OPERATING RANGE
Max. Digging depth	2150 mm
Max. Vertical digging depth	1740 mm
Max. Digging height	3275 mm
Max. Dumping height	2310 mm
Max. Digging radius on ground	3470 mm
Min. Rotation radius	1440 mm
Max. Upgrade height of bulldozer blade	262 mm
Max. Digging depth of bulldozer blade	192 mm

Related Products

Product Advantages

Small size with outstanding performance
Original Perkins engine complies with EPA and EC tire 3 emission
Imported hydraulic pumps, valves, motors ensure high Performance and smart operation

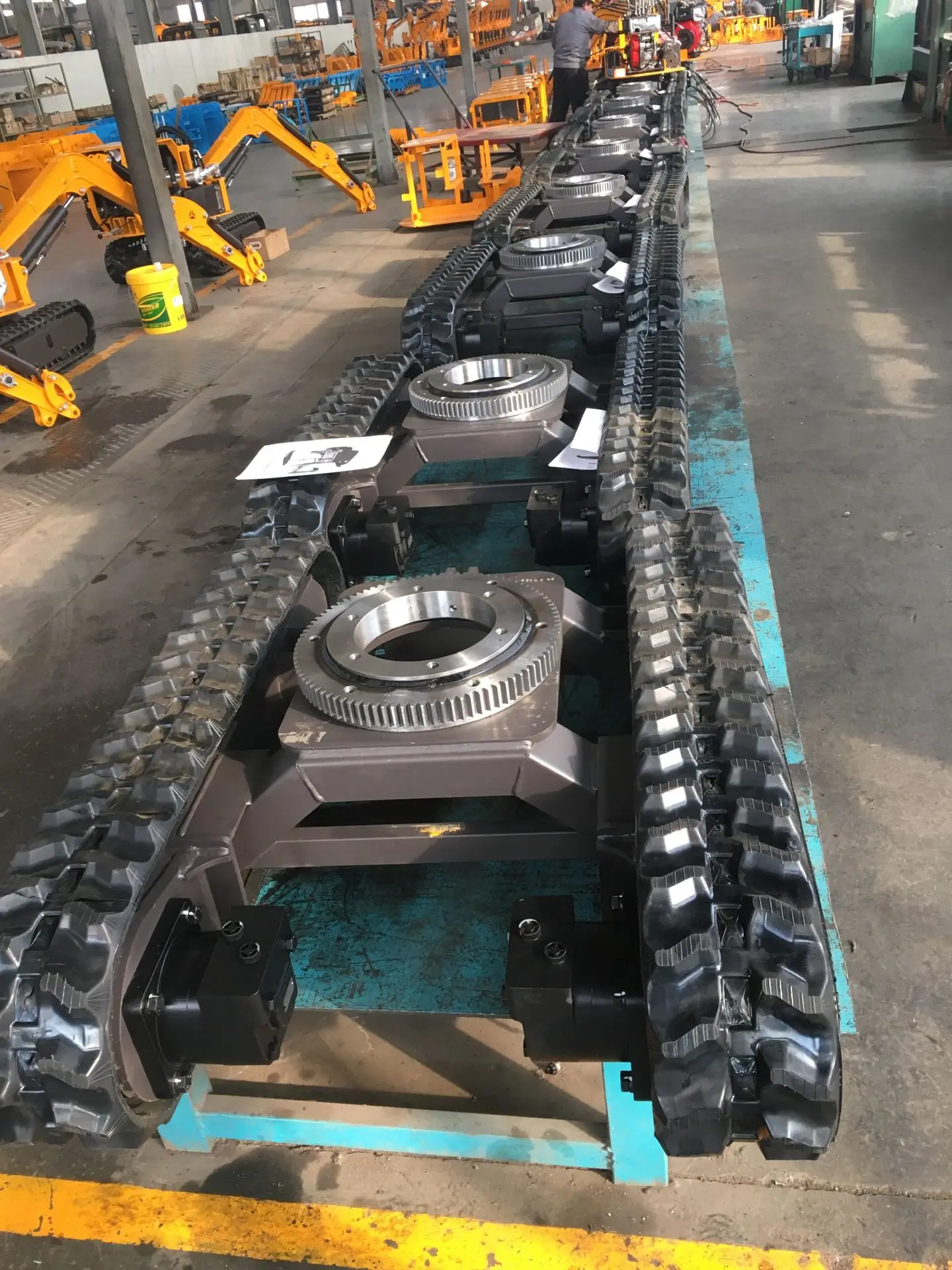

The extendable chassis(from 980 to 1300mm) not only
Improves working stability, but also allows entry into tight spaces
Easily removable canopy allows entry into low space
Auxillary hydraulic piping accommodated both one and two-way hydraulic attachments
