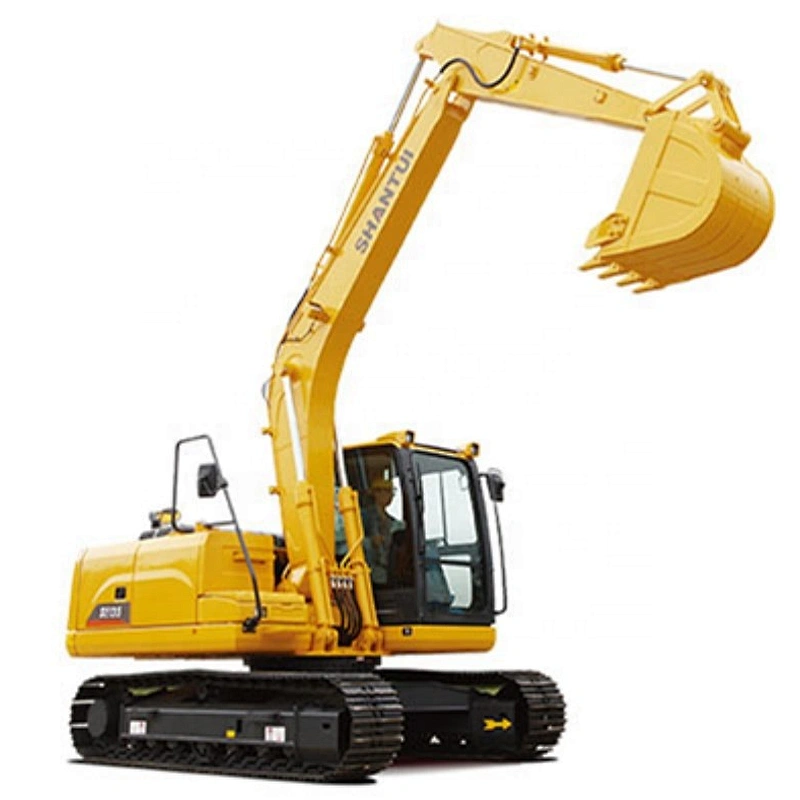

Hot sale!Shantui top brand Crawler excavator SE130 best price for sale !
QSF3.8 T engines, electronically controlled high pressure common rail injection system, energy conservation, environmental protection, low noise, strong power, China Ⅲ emission standards; Fuel system adopts three-level integration diesel oil filter, air intake system using radial seal air filter, the standard air prefilter, effectively prolong the service life of the engine; Tied for radiator, aluminum radiator area is large, the cooling performance is good.
World famous brands imported hydraulic components, constant power, the electric proportional control of the double pump double negative flow hydraulic system, the system is stable and reliable;
| The engine systme | |
| The engine cooling system | cool -watering |
| The type | QSF3.8T |
| cylinders *diameter *trip(mm) | 4*102*115 |
| The displacement(L) | 3.76 |
| Rated power(kw/rpm) | 86/2200 |
| The bucket | |
| The capacity of bucket(m³) | 0.55 |
| The width of bucket(mm) | 990 |
| Digging force | |
| Arm digging force(kn) | 70 |
| Bucket digging force(kn) | 97 |
| The walking system | |
| The Walking motor | The axial variable |
| The number of the segments | 2*44 |
| The walking speed(km/h) | 3.25/5.2 |
| The traction(KN) | 135 |
| The climbility ability | 70%(35°) |
| The track roller number | 2*7 |
| Drag chain number | 2*1 |
| The hydraulic system | |
| The hydraulic types | Variable double column |
| The rated working flow | 2*130 |
| Walking circuit pressure(Mpa) | 35 |
| Rotary loop pressure(Mpa) | 27 |
| Pressure control loop(Mpa) | 3.9 |
| Rotary system | |
| The rotary speed(r/min) | 11.3 |
| The brake type | Pressure release,Mechanical brake |
| The oil capacity | |
| Fuel tank capacity(L) | 220 |
| The cooling system (L) | 20 |
| Amount of engine oil(L) | 12 |
| The hydraulic oil tank(L) | 177/205 |
| The weight and the ground pressure | |
| The weight(kg) | 13500 |
| the ground pressure(Kpa) | 41.5 |
Based on domestic and abroad e-commerce platform, Jining Infront Construction Machinery Co.,Ltd is a professional international trading company, which is entitled to import and export rights and specialized in cross-border online sales of large-scale construction machine and related spare parts.
Our main products are Bulldozer, Excavator, Compactor, Motor grader, Wheel loader, Road machine and related spare parts, which meet domestic trade of more than thirty provinces, cities and municipalities, and also exported to Europe, Africa, America, Russia, etc.
We promised to provide you with the first-class items and service, to build the first-class team, to create first-class values and to establish first-class enterprise image. We believe that we are able to be the main force of construction machinery field by the effort of all of our staff. Let’s seize the chance for a better future!
Name:Janice
Mobile phone: + 86 15053767299
Wechat&skype&whatsapp:+ 86 15053767299
QQ :2159861078
Welcome your inquiry soon! We can offer our best service!
