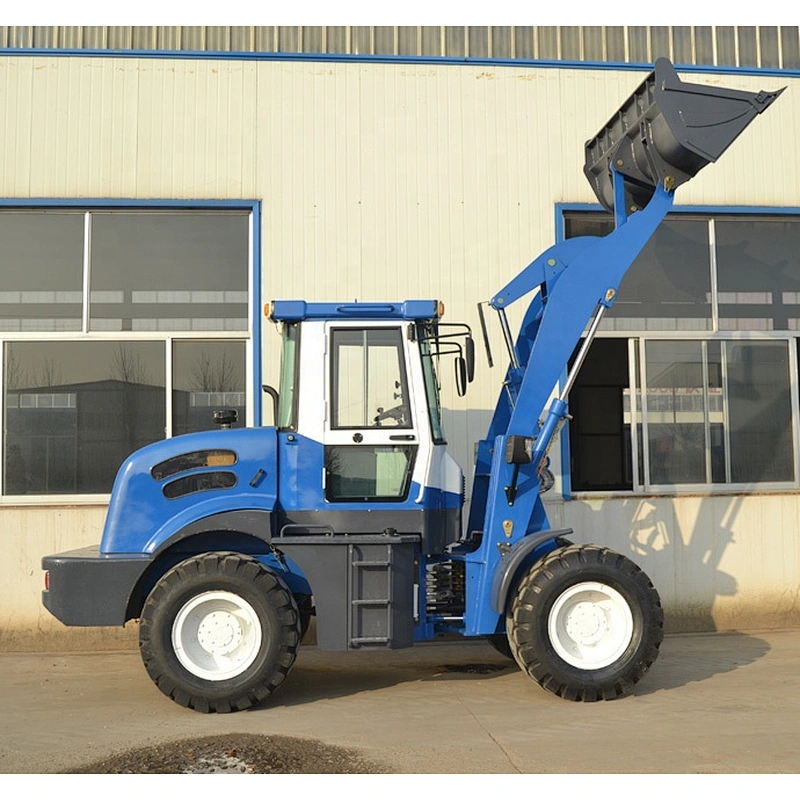

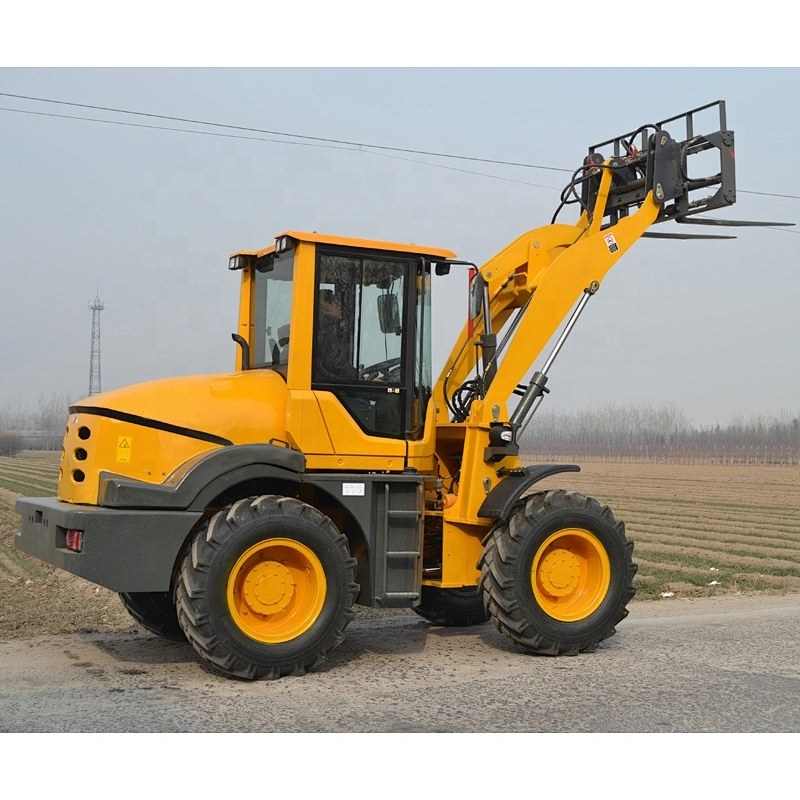

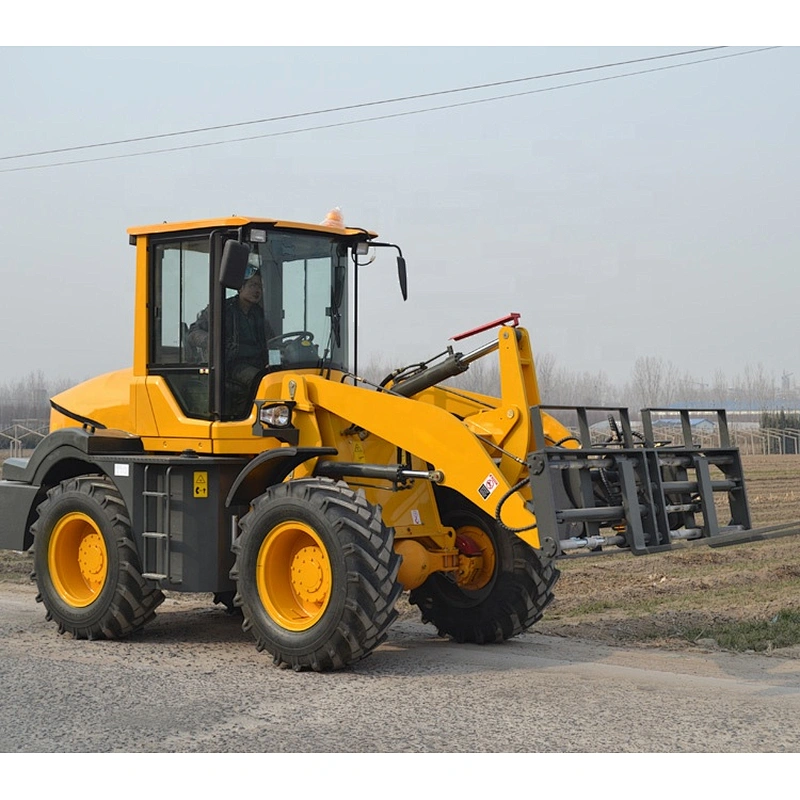

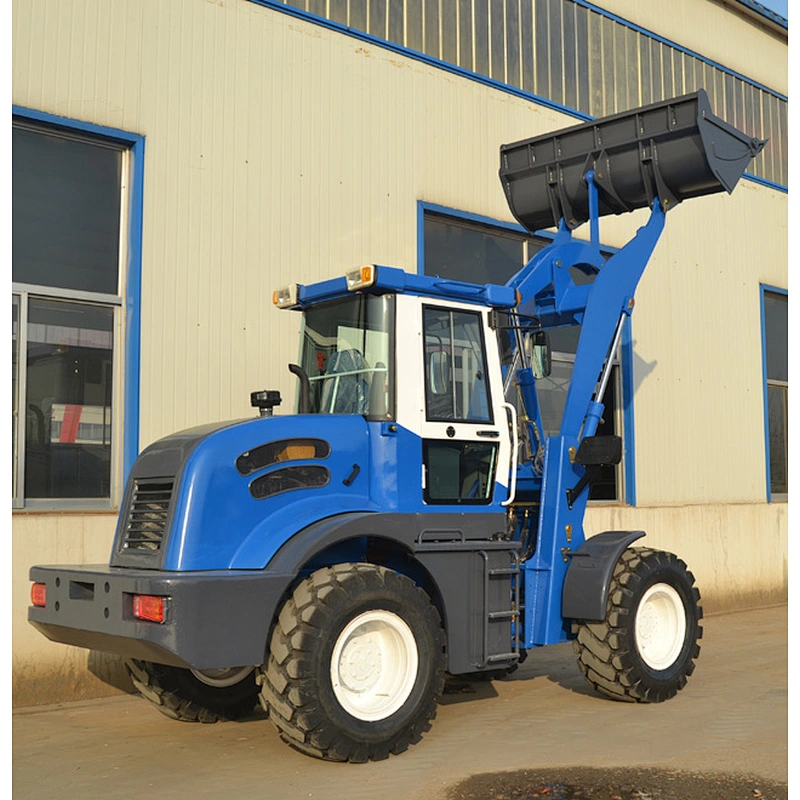

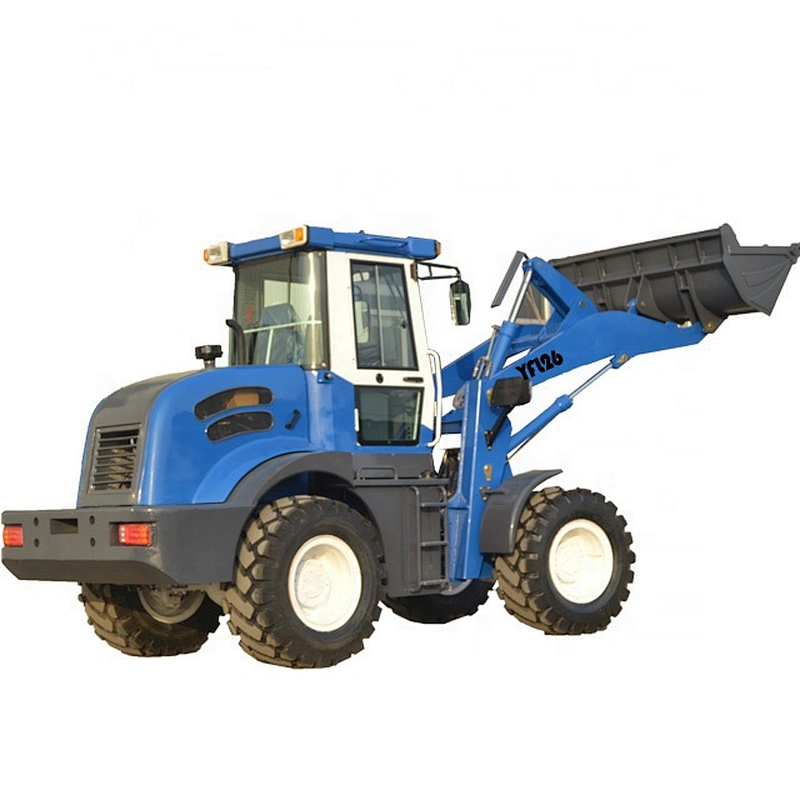

CE certificate China mini tractors with front end loader YFL26 for sale
Detailed Product Description
1,Good cost performance: Adopting full hydraulic transmission, it can bring the power of engine into full play amply. Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission. It enables the loader working efficiency and easy maintenance
2,High productivity: Perfectly designed to enable the machine have super lifting force and automatic leveling at high position.
3,Good capability in climbing the slope: 4-wheel driven, strong driving power.
4,Operation flexible: Center-point frame articulated and small turning radius makes it convenient to work in confined places.
5,Safe and reliable: Single-line air-assisted brake system.
6,Going-through capability: The rear axle can swing around the center hanger frame, improved the going-through capability of the whole machine.
7,Operation comfort: Continuously variable transmission, full hydraulic steering system steady and reliable .
Performance | Rated loading | 2600kg |
| Overall weight | 5500kg |
| Rated bucket capacity | 1.3m³ |
| Maximum tractive force | ≥54KN |
| Maximum breakout force | ≥45.4KN |
| Maximum grade ability | 30° |
| Maximum dump height | 3300mm |
| Optional maximum dump height | 3500mm |
| Overall dimension (L×W×H) | 5890×2000×2850mm |
| Minimum turning radius | 5330mm |
Engine | Model | YUNNEI turbocharged engine |
| Optional model | YTO/YUCHAI/CUMMINS/YANMAR/KOHLER engine |
| Type | Vertical, in-line, water cooled, 4-stroke diesel engine |
| Rated power | 65KW |
| Rated speed | 2200rpm-2400rpm |
| Engine starting mode | Electric |
Transmission system | Gearbox mode | Counter shaft power-shift |
| Gear shift | 2 forward shift 2 reverse shift |
| Maximum speed | 25km/h |
Drive axles | Main reducing spiral | Circular Arc Bevel gear, single stage |
| Decelerating mode | Single stage planetary type |
| Wheel base (mm) | 2400mm |
| Wheel tread | 1640mm |
| Ground clearance | 310mm |
| Driving mode | Four-wheel full hydraulic drive |
Tire | Tire type | 16/70-20 |
| Optional tire | 16/70-24 |
Brake | Brake mode | Air assist disc brake on 4 wheels |
Packaging | Packaging details | 1 unit packed into 20GP,2 units packed into 40HQ. |
| Port | Qingdao |
Warranty | 12 months after delivery or 1500 work hours(whichever comes first) | |
Delivery time | 15-25 days after 30% down payment. | |
