Product Description

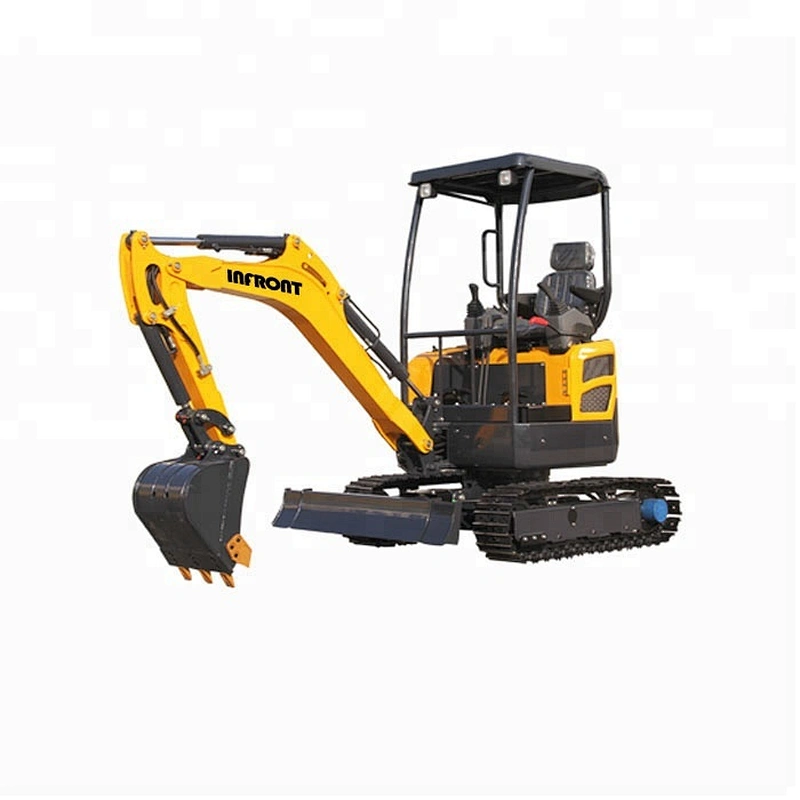

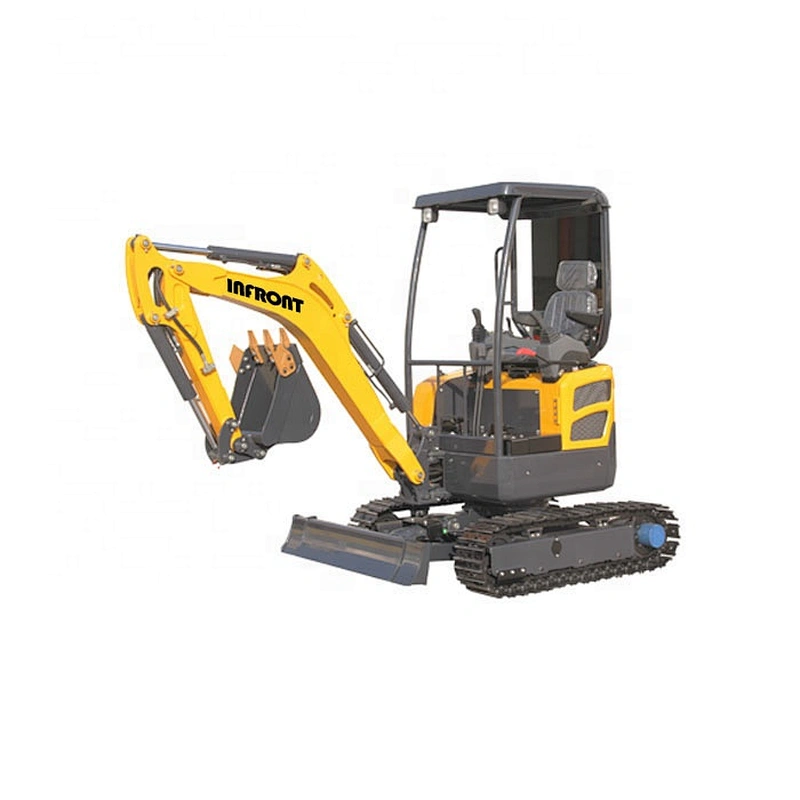

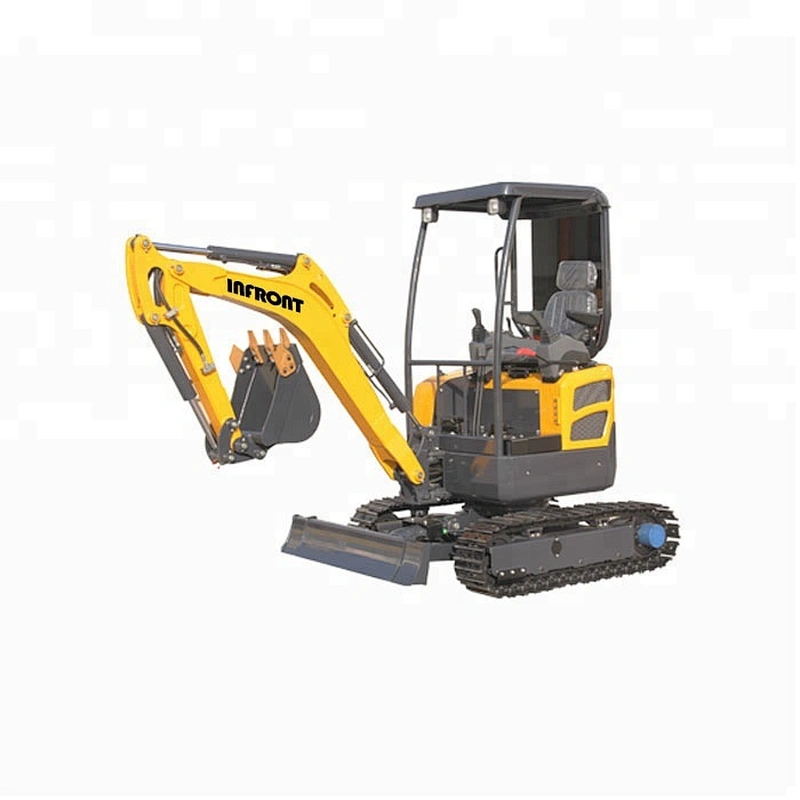

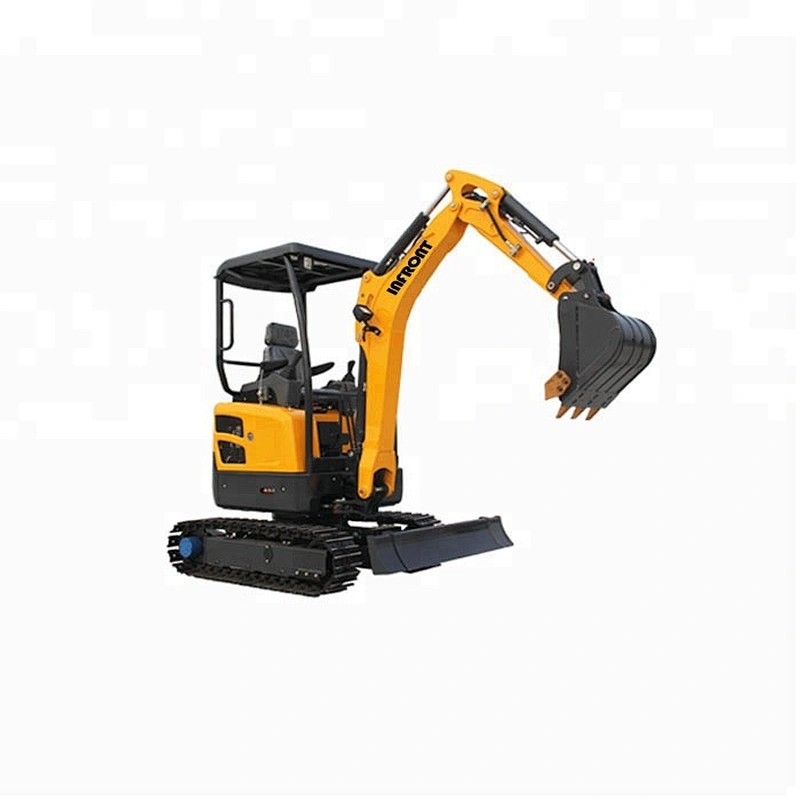

This excavator is designed for small works, small projects, in garden, farmland, municipal works,vegetable greenhouse, digging trench It is with brand engine and imported pump and valve,easy to maintain.


| Technical details | Unit | YFE22 |
| Specs |
| Operating Weight | kg | 2200 |
| Bucket Capacity | m³ | 0.08 |
| Bucket Width | mm | 490 |
| Boom Length | mm | 2000 |
| Arm Length | mm | 1000 |
| Performance |
| Swing Speed | rpm | 10 |
| Travel Speed | Km/h | 0-2.5 |
| Grade Ability | % | 25 |
| Ground Pressure | Kpa | 34 |
| Bucket Digging Force | KN | 18.2 |
| Arm Digging Force | KN | 10.5 |
| Max Traction Force | KN | 13.8 |
| Engine |
| Model | Option | YANMAR 3TNV88 |
| Standard | ChangChai ZN390Q |
| Rated Power | Kw/rpm | 19.7/2200 |
| 22/2200 |
| Max Torque | N.m/rpm | 107.8 |
| 102.8 |
| Displacement | L | 1.642 |
| 1.813 |
| Cylinders | | 3 |
| Bore and Stroke | mm*mm | 88*90 |
| 90*95 |
| Cooling Type | | Water |
| Overall Dimensions | |
| Overall Length*Width*Height | mm | 4090*1200*2310 |
| Track Grounding Length | mm | 1250 |
| Track Shoe Width | mm | 230 |
| Track Gauge | mm | 950 |
| Min Ground Clerance | mm | 190 |
| Tail Swing Radius | mm | 1200 |
| Dozer Blade Width | mm | 1200 |
| Operating Range | |
| Max Digging Radius | mm | 4023 |
| Max Digging Depth | mm | 2150 |
| Max Digging Height | mm | 3800 |
| Max Dumping Height | mm | 2660 |
| Boom Offset (Left/Right) | mm | 490/640 |
| Boom Swing Angle L/R | ° | 70/50 |
| Dozer Blade Lift/Digging | mm | 174/218 |
| Configuration | |
| Operating | | Pilot Control |
| Valve | Standard | Hydraulic control sensitive multiple valve |
| Option | US “HUSCO” |
| Hydraulic control |
| multiple valve |
| Pump | Standard | Double gear pump |
| Option | Triple gear pump |
| Track | Standard | Rubber |
| Option | Steel |
| Auxiliary Line for attachment | Standard | Hydraulic control |
| two-way |
| Cabin/Shed | Standard | Shed |
| Option | Cabin |
The engine adopts Yanmar engine (optional laidong engine), there are many service outlets, convenient maintenance, low fuel consumption, low noise.
The nachi piston variable pump imported from Japan is used to make the big arm, the small arm and the rotary form an independent hydraulic system, which realizes fast, smooth and powerful operation.
