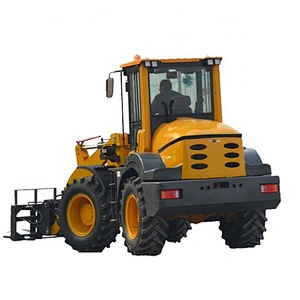

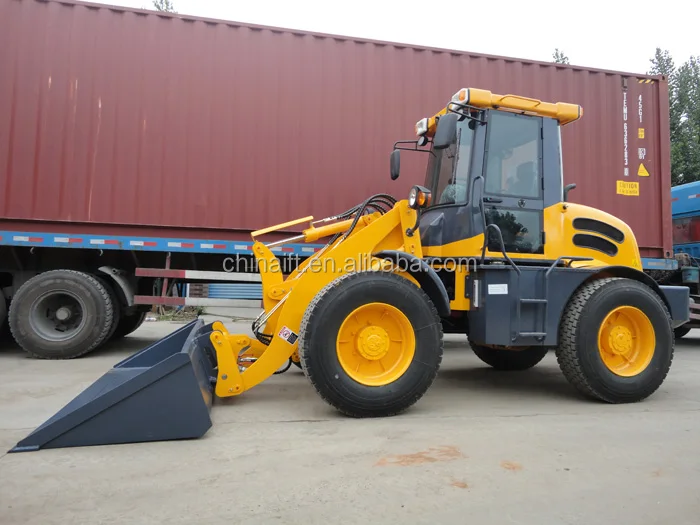

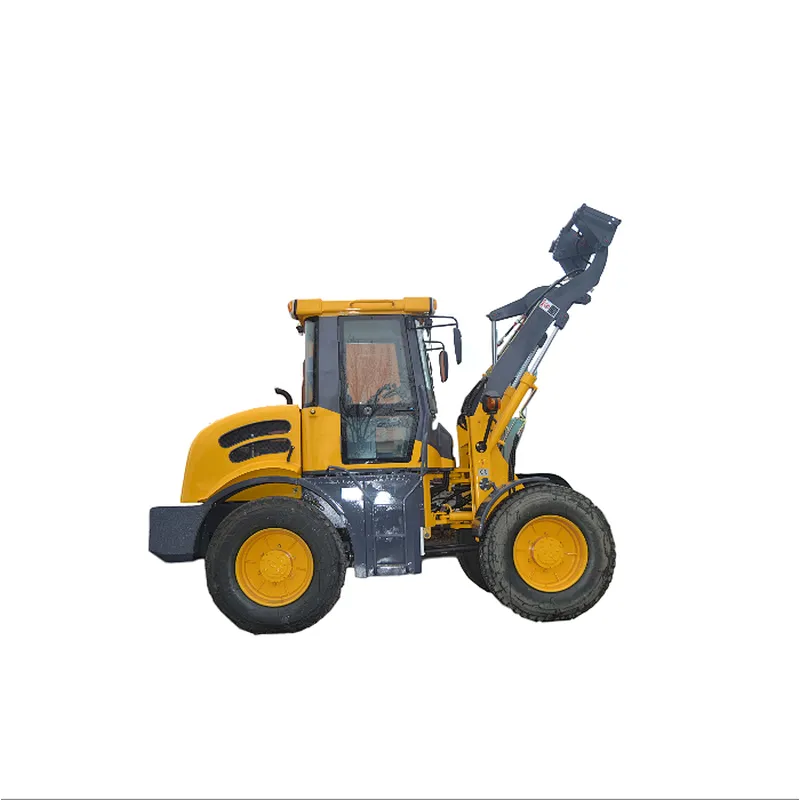

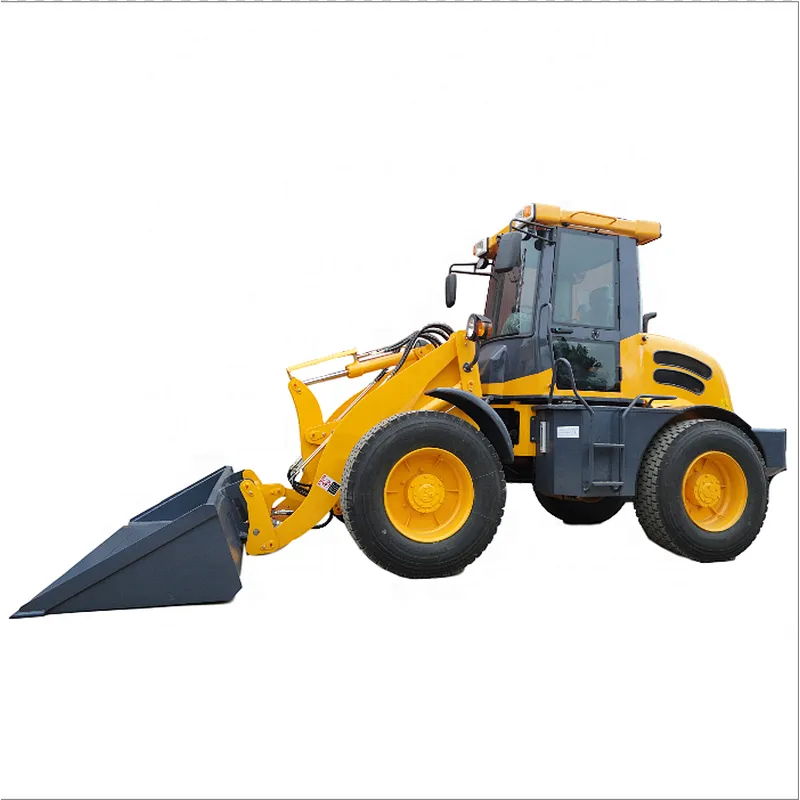

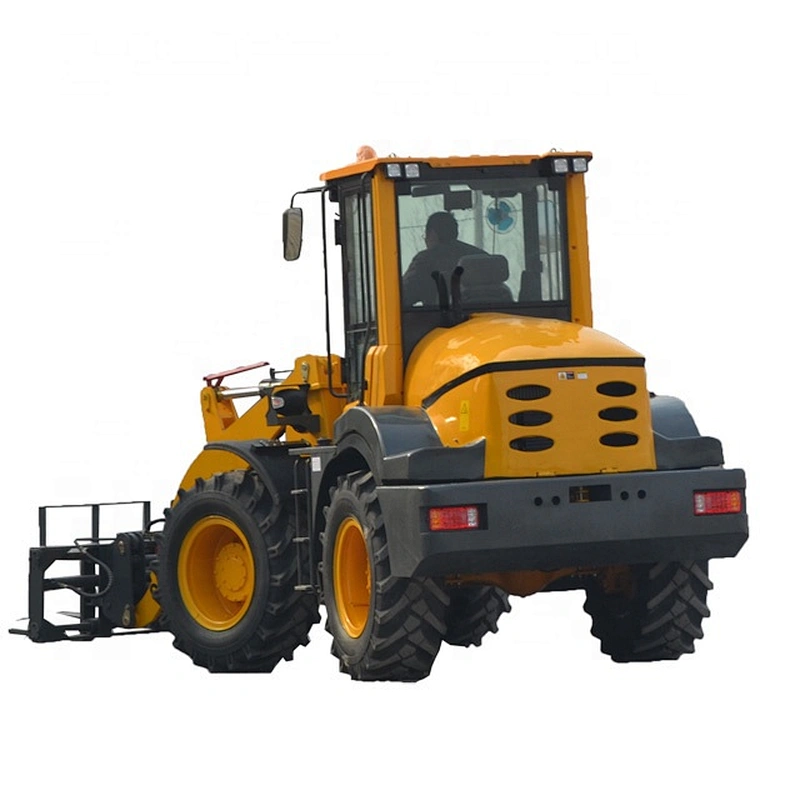

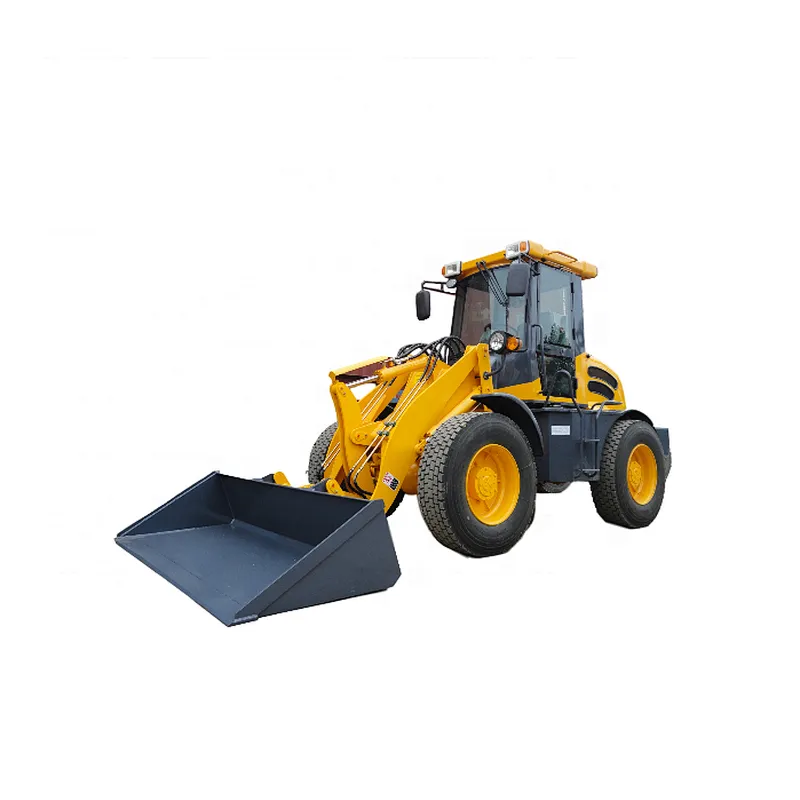

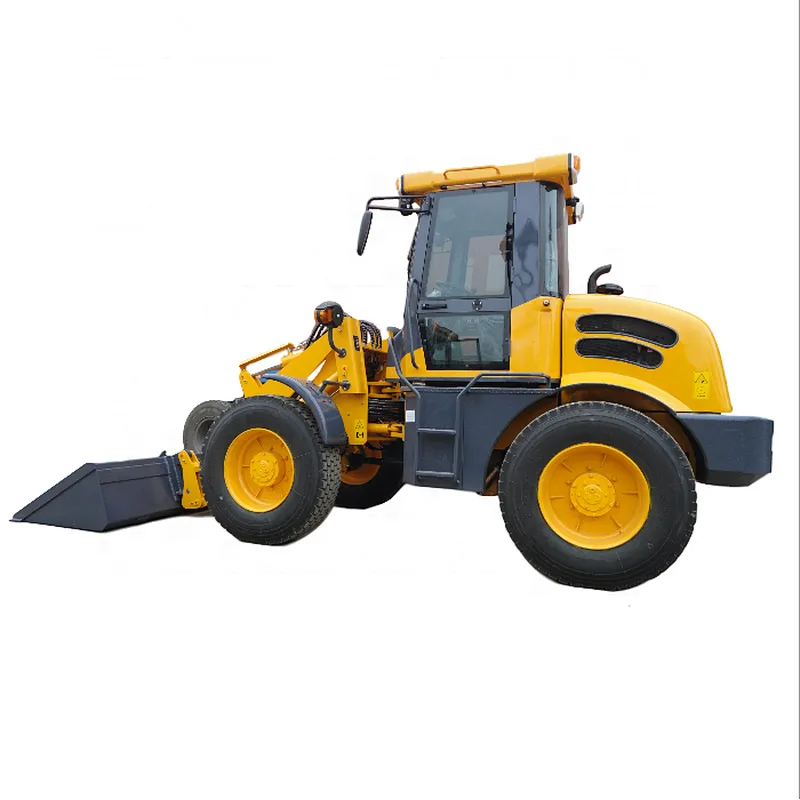

Chinese mini front end loader YFL18 with 1.8 tons rated capacity
THE TECHNICAL PARAMETERS OF YFL18 CE CERTIFICATE MINI WHEEL LOADER | ||
Bucket Capacity(m³) | 0.8 | |
Operating Weight(kg) | 3800 | |
Bucket Width(mm) | 1900 | |
Rated Load(kg) | 1800 | |
Driving Mode | Four-wheel drive | |
Overall Dimensions (mm)(L*W*H) | 5300x1900x2830 | |
Max. Breakout Force(KN) | 32 | |
Forward Speed 1st(km/h) | 0-12 | |
Forward Speed 2nd(km/h) | 0-25 | |
Reverse Speed (km/h) | 0-25 | |
Max. Dumping Height(mm) | 2650 | |
OptionalMax. Dumping Height(mm) | 2900 or 3100 | |
Max. Dumping Reach (mm) | 850 | |
Min. Turning Radius(mm) | 3890 | |
Full Bucket Lifting Time (s) | 4.5 | |
Total Hydraulic Cycle Time (s) | 9 | |
Tread Width (mm) | 220 | |
Wheel Base (mm) | 1580 | |
Min. Clearance Over Ground (mm) | 230 | |
MAX. Tilt Angel(°) | 30 | |
Diesel Engine | Brand | YUNNEI Engine |
|
Optional brand | Euro3 and EPA XINCHAI 36.8kw A498BT1Engine or YANMAR/PERKINS/KUBOTA/CUMMINS/KOHLER Tier 3/4 engine |
| Type | In-line arrangement,Four-stroke,Water cooled, 4-cylinder diesel engine |
| Rated Output(KW) | 50 |
| Engine starting mode | Electric |
Transmission | Type | Fixed-spindlepower shift with converter |
Driveaxle | Type | Wheel reduction drive axle |
| Rear Axle Oscillation | Single stage planetary reduction |
| Oscillating Angle Of Rear Axle | 13° |
Tire | Model | 23.5-16 or 23.5/70-16 Wide Tyre |
| Optional model | 14-17.5 Wide Tyre or 23.5/70-16 Agriculture Tyre 295/80R22.5 or 315/80R22.5 Truck Tyre |
Steering System | Working Pressure (MPa) | 10 |
| Max. Steering Angle (°) | 35 |
Hydraulic System | Pressure Of Tire (MPa) | 2.5-3.5 |
| Working Pump Type | Gear pump |
| Working Pressure (MPa) | 16 |
Brake System | Service Brake | Disc brakes on 4 wheels |
| Parking Brake | Hand operated disc brake |

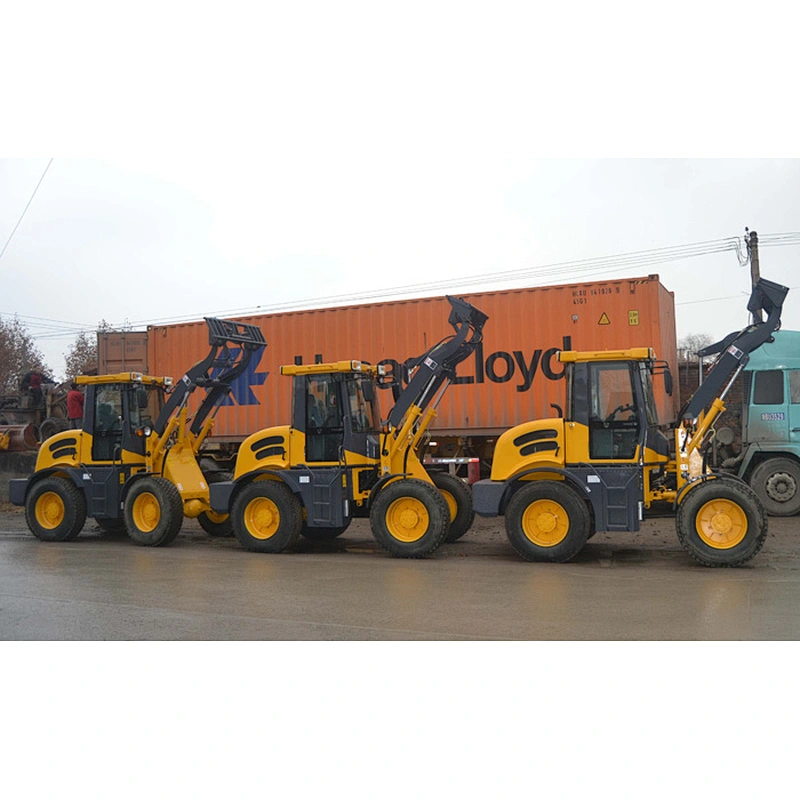

Package | 1 unit with cab packed into 20GP,3 units with cab packed into 40HQ. | |
Warranty | 12 months after delivery or 1500 work hours(whichever comes first) | |
Delivery time | 15-25 days after 30% down payment. | |
Based on domestic and abroad e-commerce platform, Jining Infront Construction Machinery Co.,Ltd is a professional international trading company, which is entitled to import and export rights and specialized in cross-border online sales of large-scale construction machine and related spare parts.
Our main products are Bulldozer, Excavator, Compactor, Motor grader, Wheel loader, Road machine and related spare parts, which meet domestic trade of more than thirty provinces, cities and municipalities, and also exported to Europe, Africa, America, Russia, etc.
We promised to provide you with the first-class items and service, to build the first-class team, to create first-class values and to establish first-class enterprise image. We believe that we are able to be the main force of construction machinery field by the effort of all of our staff. Let’s seize the chance for a better future!
Name:Janice
Mobile phone: + 86 15053767299
Wechat&skype&whatsapp:+ 86 15053767299
QQ :2159861078
Welcome your inquiry soon! We can offer our best service!
